- Model Number:19J031
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China, US
- Brand Name:MIC
- Part number:delay circuit
- Brand:MIC
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days

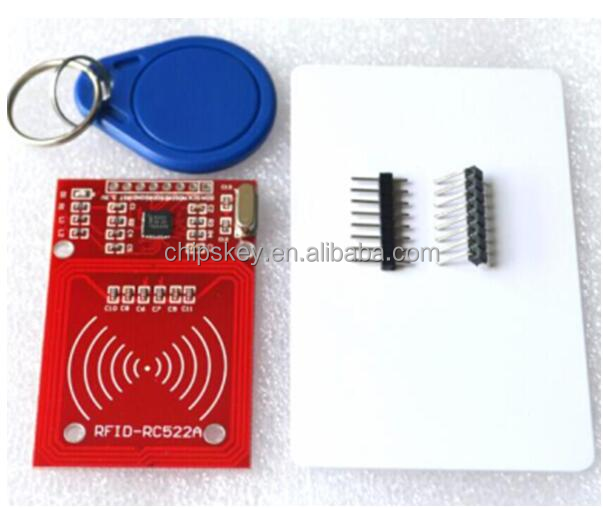

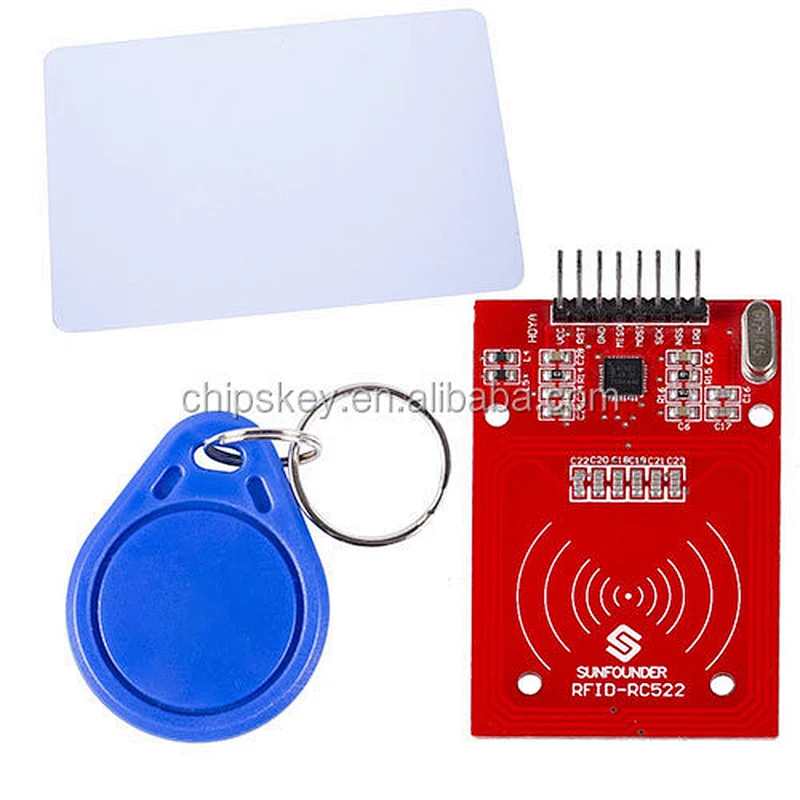

1, a RFID-RC522 module;
2, the standard S50 blank card;
3,S50 shaped card (as shown Keychain shape);
4, vertical, curved row of pins of each one;
[RC522 chip]
MF RC522 is used in highly integrated 13.56MHz contactless communication card chip to read and write,for"three"and the application launched a low voltage, low cost, small size, non-contact card chip to read and write, intelligent instruments and portable handheld devices developed better. The MF RC522 use of advanced modulation and demodulation concept completely integrated in the 13.56MHz all kinds of passive contactless communication methods and protocols. 14443A compatible transponder signal. The digital part handles the the ISO14443A frames and error detection. In addition, support Quick CRYPTO1 encryption algorithm, the term verification MIFARE series. MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transfer rates up to 424kbit / s. The as 13.56MHz highly integrated card reader series chip new family, the MF RC522 MF RC500 MF RC530 there are many similarities, but also have many of the characteristics and differences. Communication between it and the host SPI mode, helps to reduce the connection, reduce PCB board volume and reduce costs.
[RFID Module Introduction
MF522-AN module uses MFRC522 original chip design circuit card reader, easy to use, low cost, suitable for equipment development, the development of advanced applications reader users, the need for RF card terminal design / production users. This module can be directly loaded into the variety of reader molds. The module uses voltage of 3.3V, simple few lines through the SPI interface directly with any user CPU board is connected to communication, can guarantee the the module stable and reliable work, reader distance;
[Electrical parameters Profile
Operating current of 13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, the mifare1 S70, Mifare UltraLight, Mifare Pro, mifare DESFire
Product physical properties: size: 40mm x 60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Ambient Relative Humidity: 5% -95%
[Module interface SPI Parameters
Data Transfer Rate: Max 10Mbit / s
