- Model Number:28116
- Type:Other
- Place of Origin:China
- SKU:28116
- Stock:In Stock ,Can Ship out Immedicate
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project
"
Product description
Color: Blue
Material: PCB + aluminium alloy
Features: Longest effective communication distance of 5 cm; Supports switching of SPI, IIC and UART interface; Can be used for 13.56M non-contact communication; Compatible with ISO14443 Type A and Type B standards
Specification: IC PN532; Operating voltage 3.3V; Power supply Voltage 3.3~5.5V; Max supply current 150mA; Working current(standby mode) 100mA; Working current(write mode) 120mA; Working current(read mode) 120mA; Indicator PWR; Interface SPI Interface, Std Raspberry Pi 20pins Interface

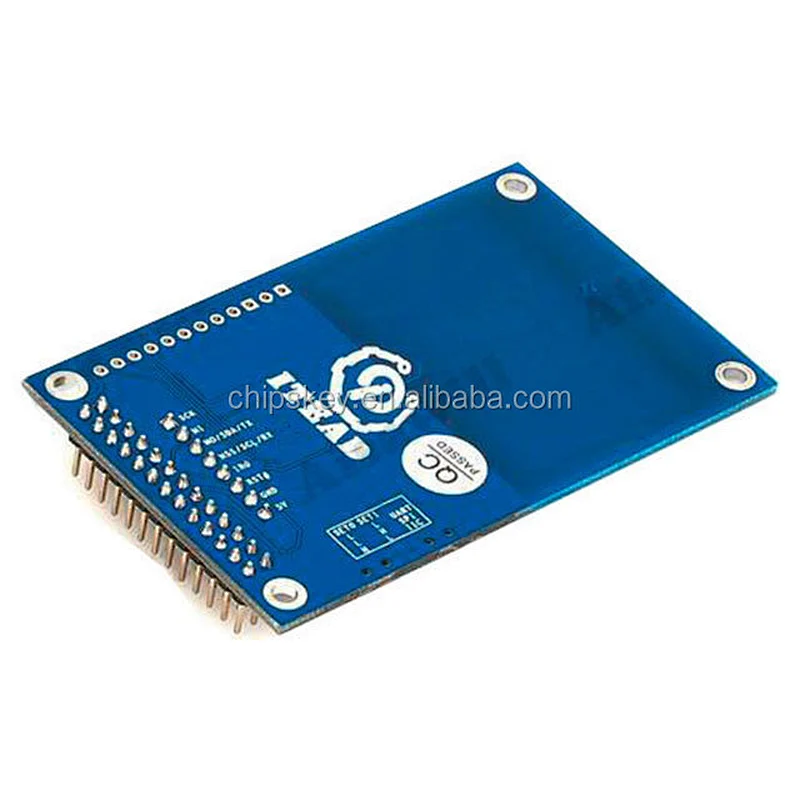

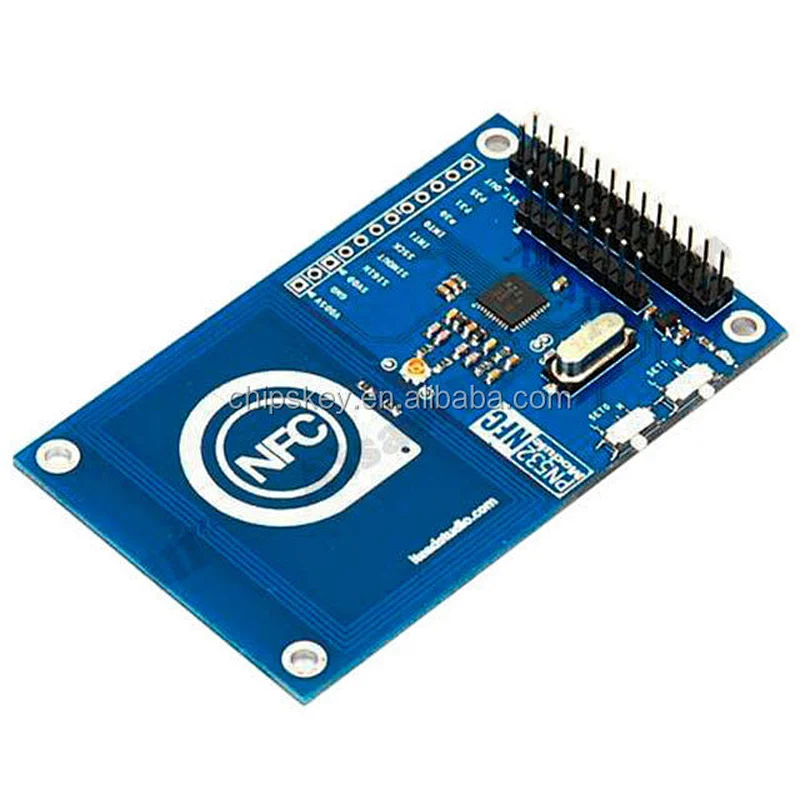

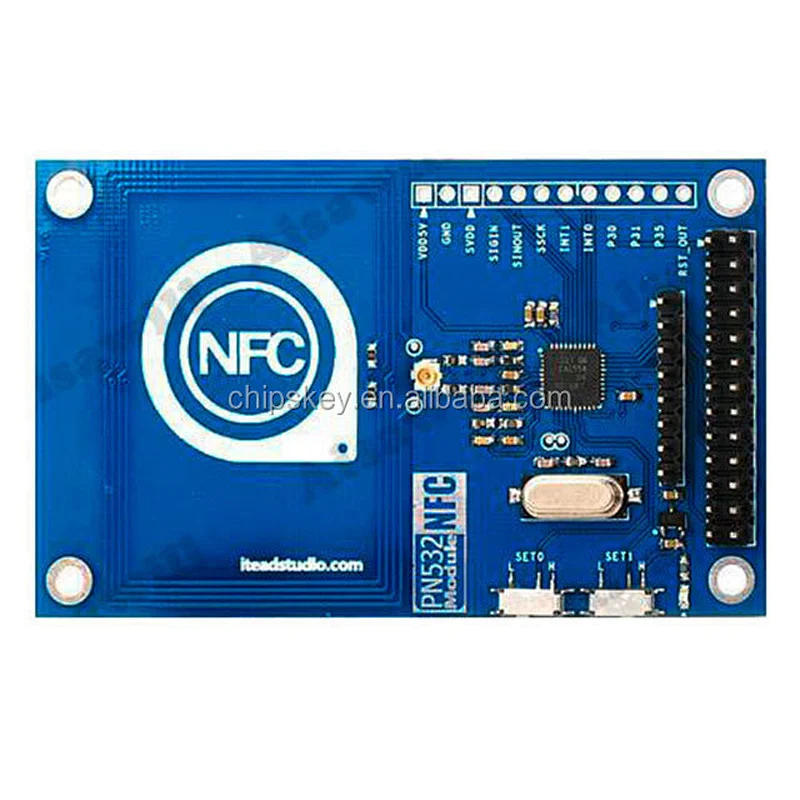

Application: PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MHz near field communication. The module is equipped with onboard antenna, thus no external antenna coil is needed. It is compatible with SPI, IIC and UART interface for communication. With NFC library support for ; it is quite convenient for development of products with NFC functions.
"
