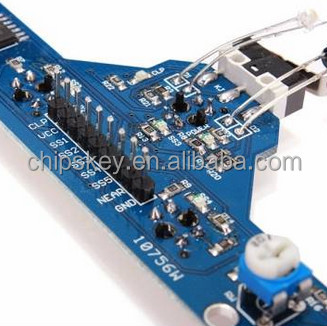

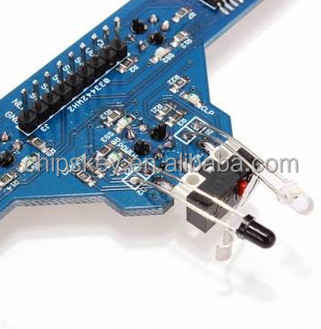

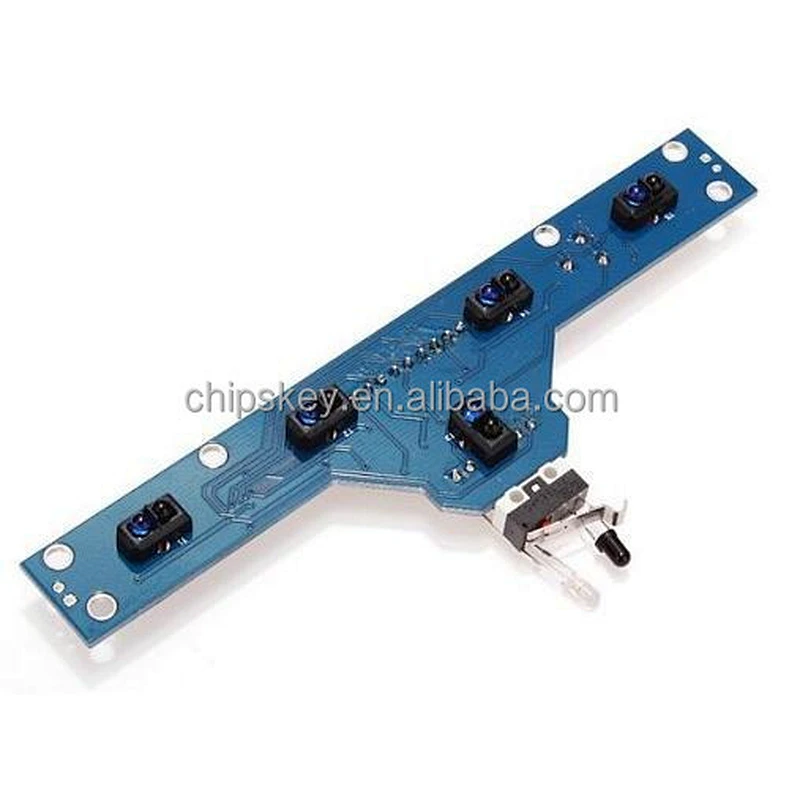

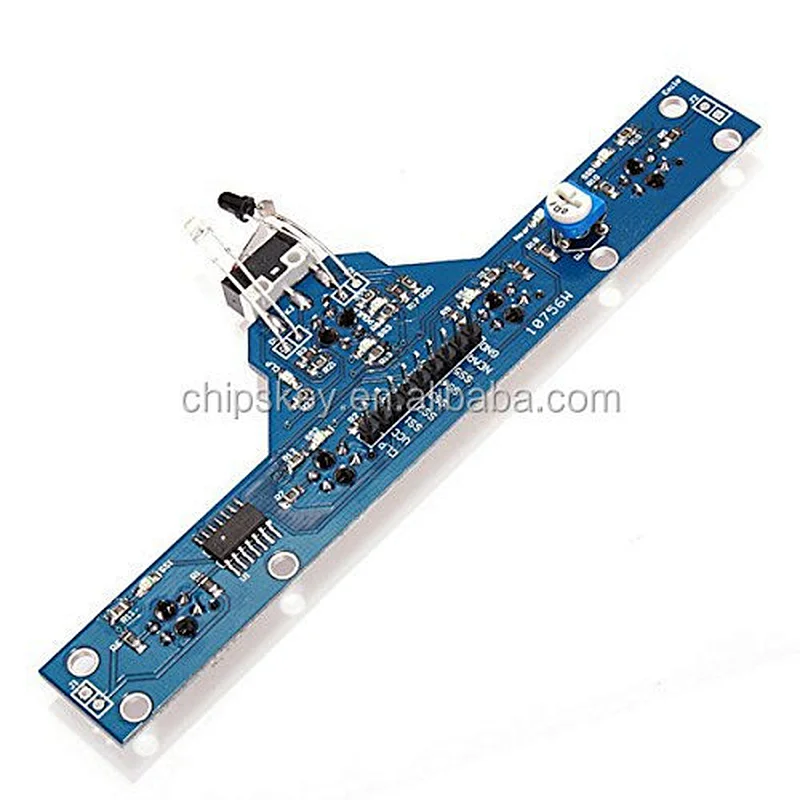

5 Channel Tracking Sensor Module Board Trace Module Infrared Detection TCRT5000

• Model Number:11B032
• Place of Origin:China
• Brand Name:Chipskey
• SKU:11B032
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Stock:In Stock ,Can Ship out Immedicate

5 Channel Tracking Sensor Module Board Trace Module Infrared Detection TCRT5000

Technical parameters:
Detecting distance :0-4cm (black line sensor) 0-5cm (adjustable distance detection)
Input voltage :3.0-5.5V
Output Type: Digital output (high and low)
BFD-1000 specifically designed as black (white) Seek line, especially for complex black and white lines, black
and white line crossing detection, it has a 6-channel high sensitivity infrared sensor (5-way transmission line,
1 shield barrier), able to accurately identify black and white lines, it has the following functions and features:
BFD-1000 Integrated 5-way tracking sensor with high sensitivity for low environmental impact, able to accurately
complex black line (white line) to track, for a simple black line line tracking more ease.
BFD-1000 integrates a barrier infrared sensors, unblinded distance can be adjusted by sliding rheostat.
BFD-1000 has a specially designed touch detection sensor, making the design more simple from the robot.
BFD-1000 all the output signal to a digital signal (high and low), convenient and microcontroller.
BFD-1000 has all the sensor output status LED light as indicator for easy debugging.
BFD-1000 supports voltage of 3.0-5.5v meet most system requirements.
with high sensitivity of the sensor, the tracking range is between 0.5mm-40mm without any need to make any
adjustments change.
Package included: 1 pcs 5 Channel Infrared Detection Tracking Sensor Module
