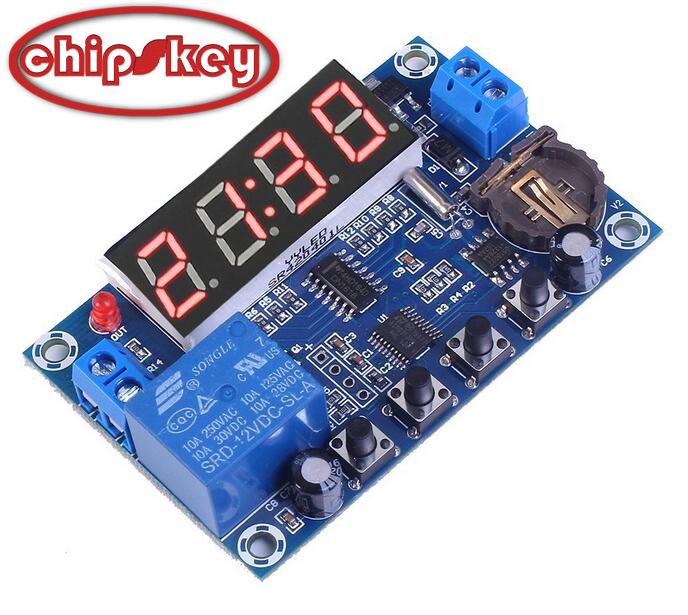

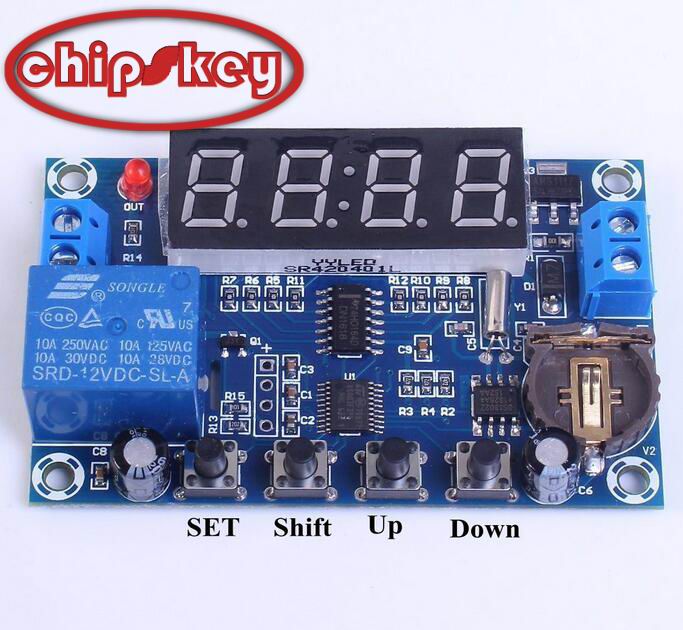

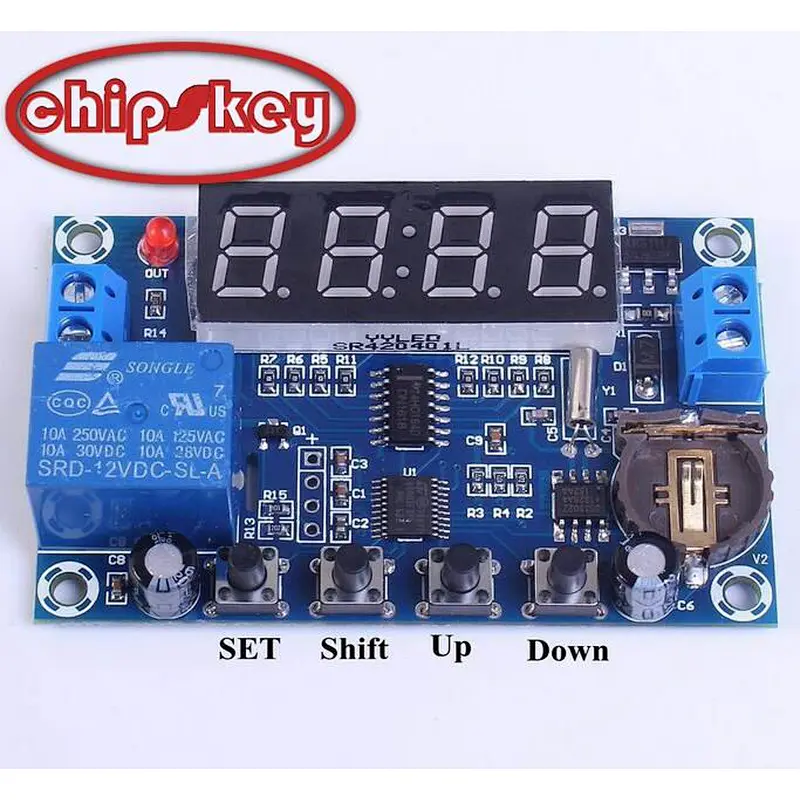

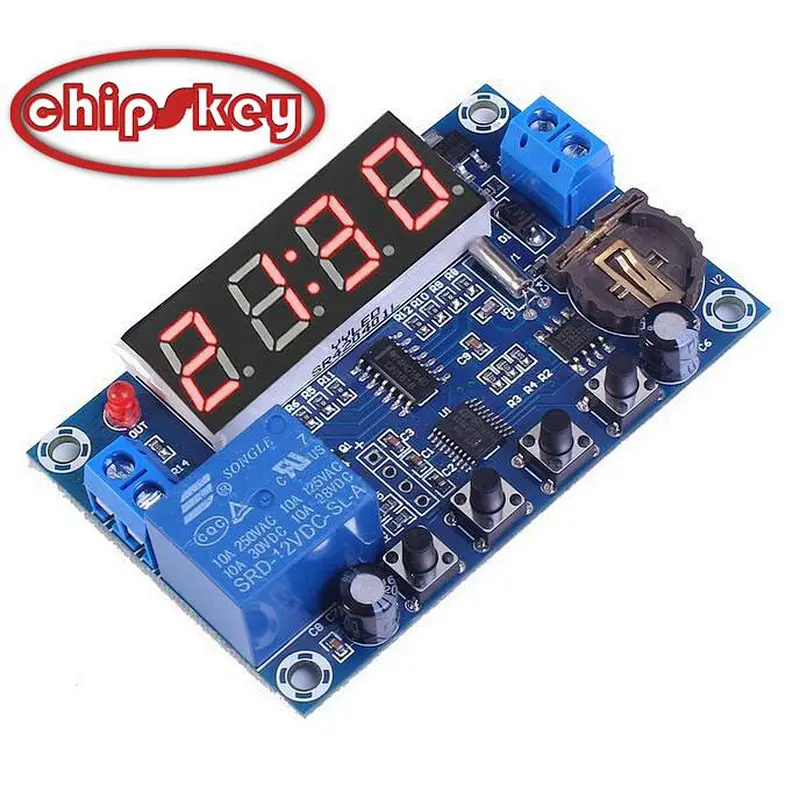

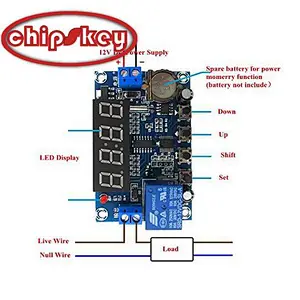

Chipskey XH-M196 12V Clock Timer Controller 24H Timing Three Groups Time Memory Control Module

• Model Number:30069
• Type:Clock and Timing Development Boards and Kits
• Place of Origin:China
• SKU:30069
• Brand:chipskey

Chipskey XH-M196 12V Clock Timer Controller 24H Timing Three Groups Time Memory Control Module

Operating voltage: 12V
Control current: 10A
Timekeeping errors: <1S / 24 H
Number of switch groups: three groups / day
Memory: external battery (lasting)

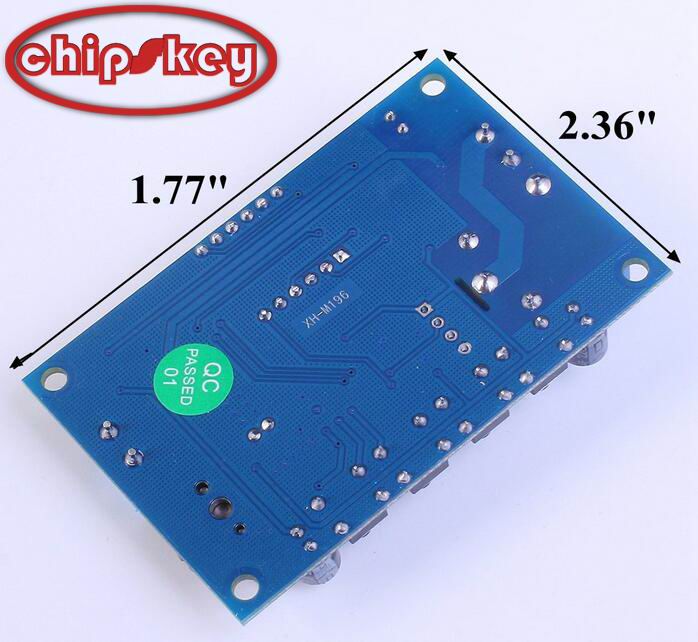

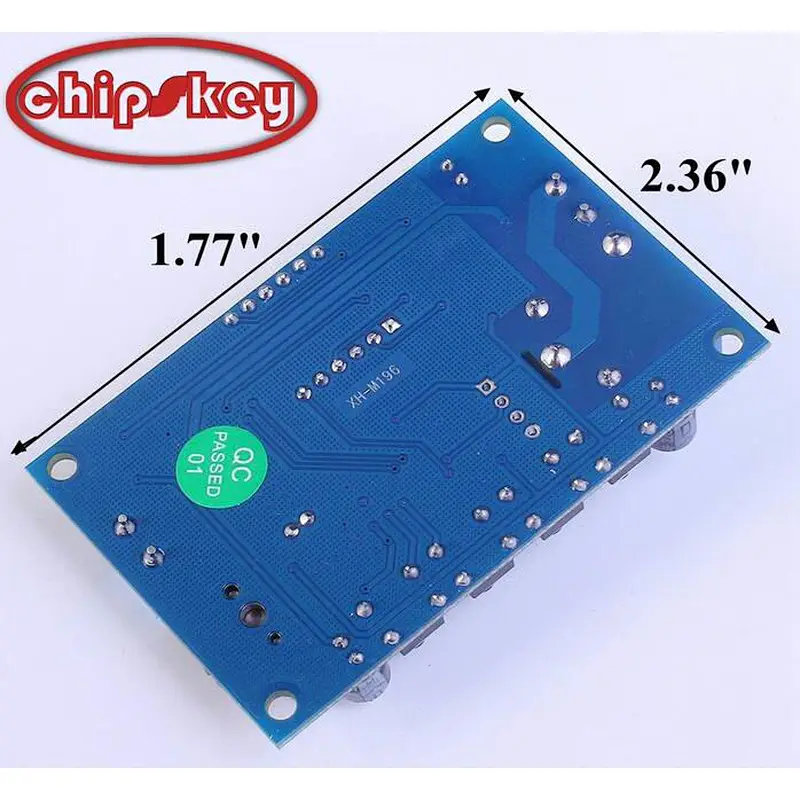

Size: 70 * 45 * 17.5mm

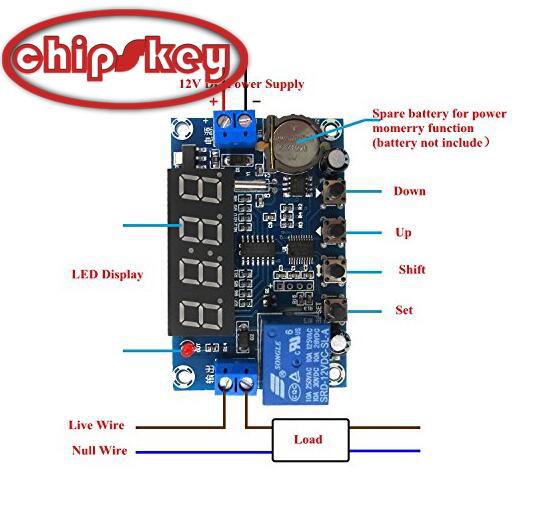

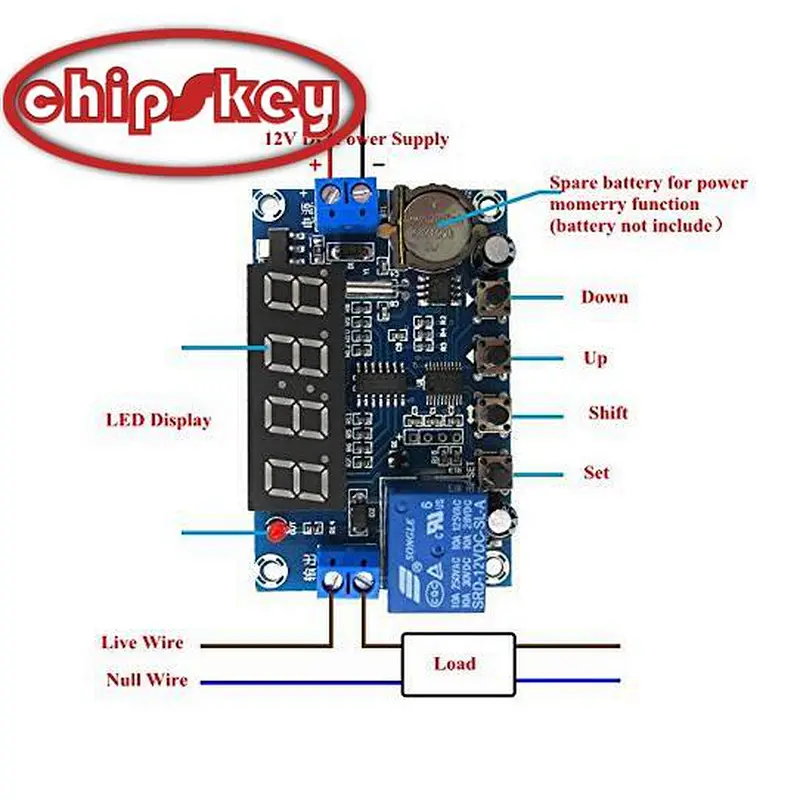

Setting way: Code parameter table

P0 set the real-time
P1-P2 set the first period
P3-P4 set the second period
P5-P6 set the third period
P7 calibration time

Prompt:
1. During setup, no keystrokes automatically confirmed 10 seconds Back
2. Set the time when the start time must be earlier than the end time. If set later than the end of time, this setting will be invalid
3. This product is one day set up three working period, if you only need to use a period of time, you can start and stop the remaining period of time is set to the same value
