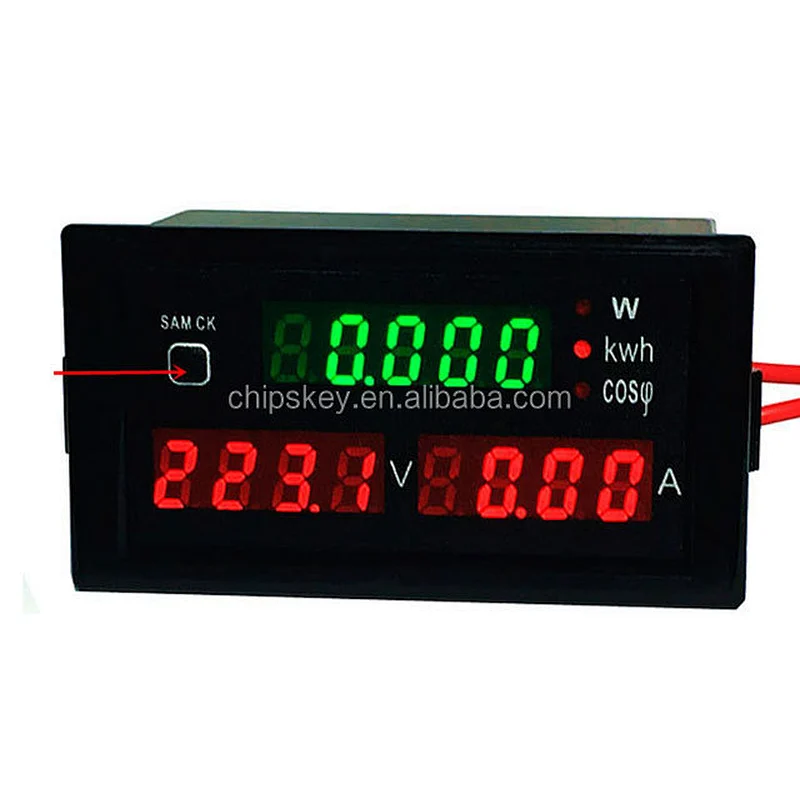

DL69-2047 multifunction digital AC digital voltmeter ammeter

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:24187

DL69-2047 multifunction digital AC digital voltmeter ammeter

"D69-2047 Multifunction digital meter for measuring AC voltage, AC current, active power, power and power factor.

Technical indicators
1. Accuracy: 1% ± 2 words

2. Display Mode: AC voltage and power factor using four 0.32 inch red light

               AC current uses four 0.32-inch red LEDs

               Active power, electricity uses five green 0.32-inch LEDs

3. Range: AC voltage:

               AC 80.0-300.0V / AC 200.0-450.0V (You should choose one type of meter in your order).

               AC 0.0-100.0A (When the measurement signal is less than 100A, the accuracy of the signal is 0.01A

                Higher than 100A, accuracy of 0.1A, the accuracy of automatic change)

               Active power: 0.0-30000W (measuring voltage AC 80.0 - 300.0V)

                                     0.0-45000W (measuring voltage AC 200.0 - 450.0V)

                Electricity: 0.000-99999kwh

                Power Factor: 1.000-0.000

Speed: 2 times per second

5. Size: 79 × 43 × 48 mm

6. Installation size: 76 × 39mm

"
