- Place of Origin:China
- Brand Name:Chipskey
- Model Number:19j085
- SKU:19J085
- Stock:In Stock ,Can Ship out Immedicate

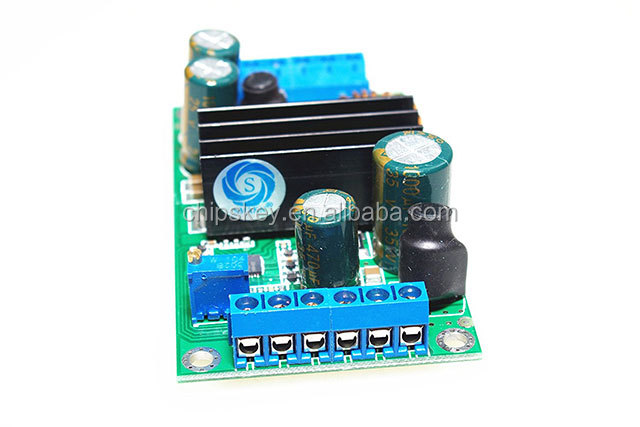

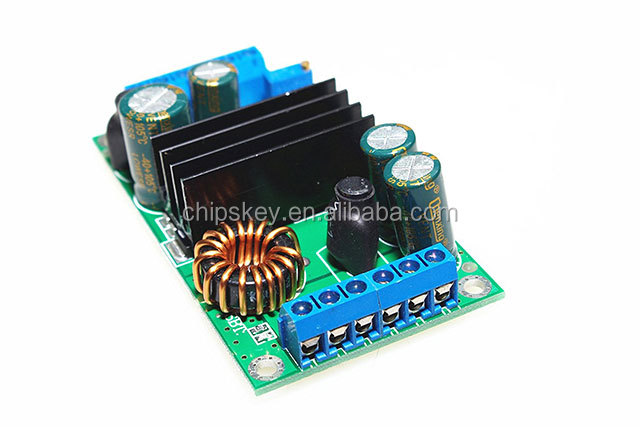

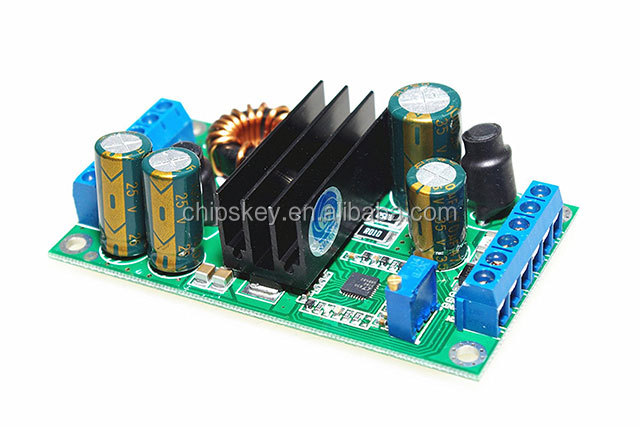

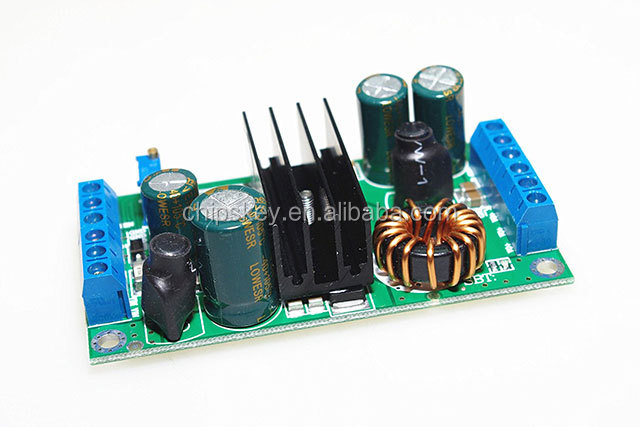

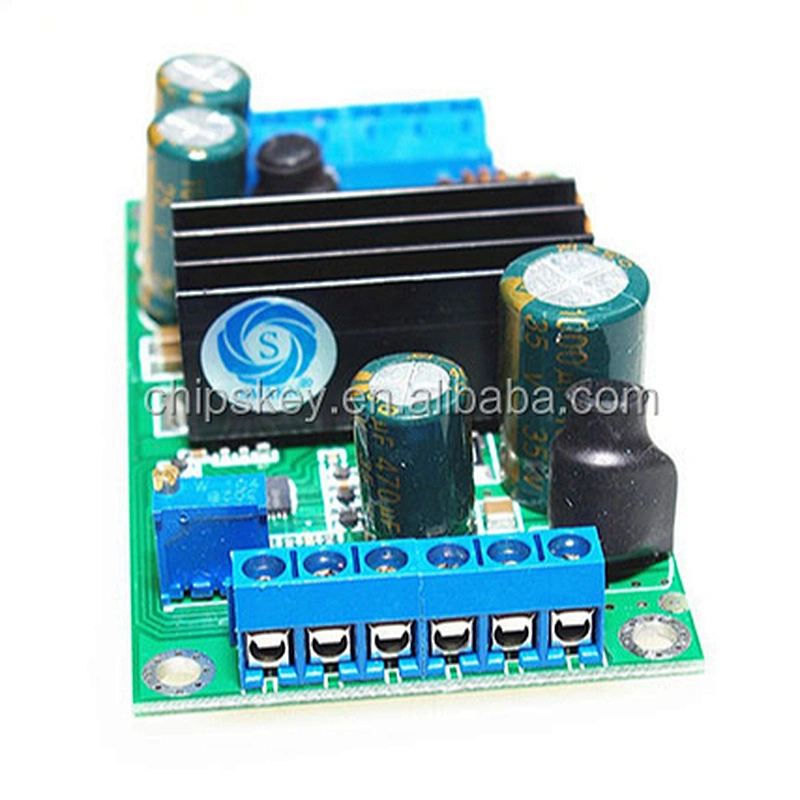

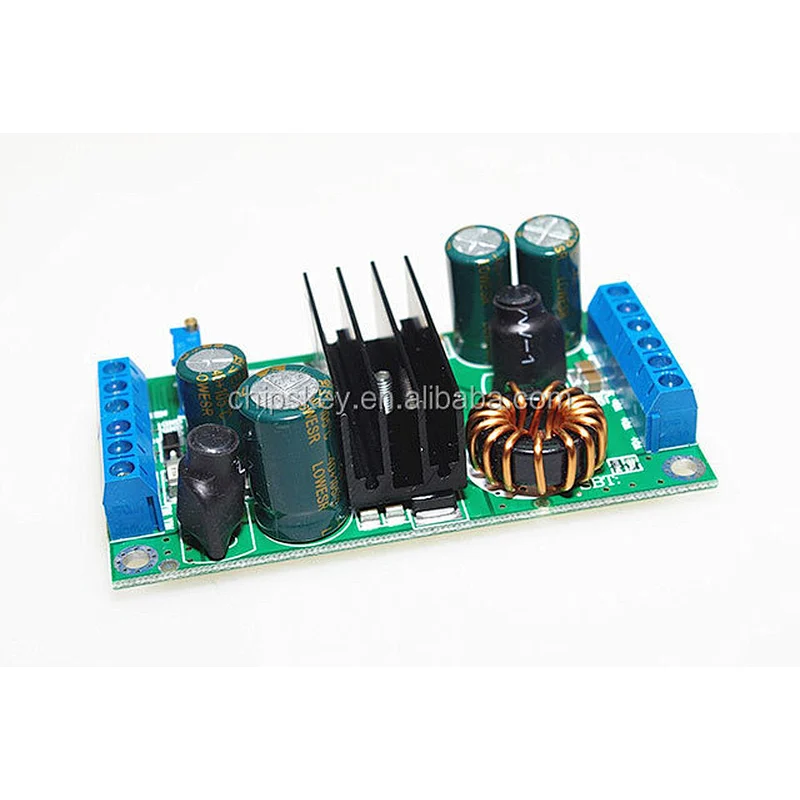

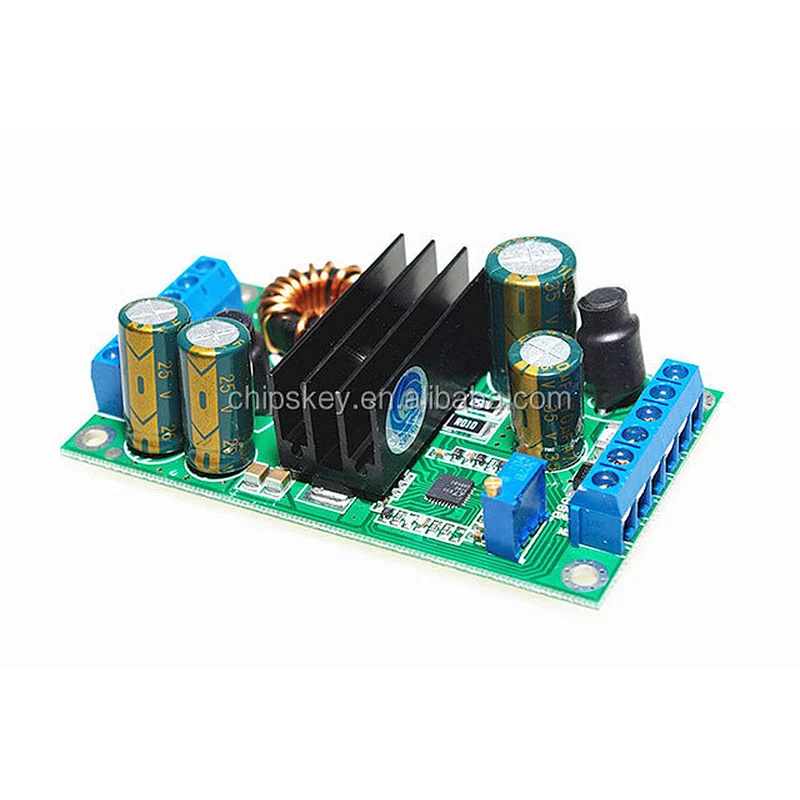

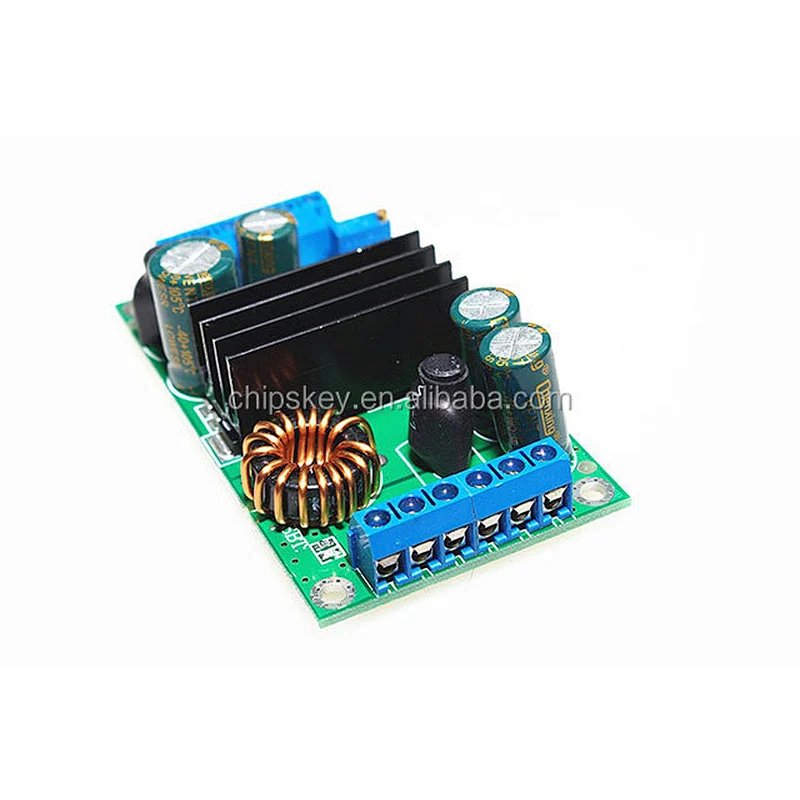

Features
Wide input voltage range: 5 ~ 32V
Output voltage: can be adjusted between 2 ~ 24V, can also choose a fixed voltage (2 to choose between 24V), please specify the time of purchase. Default shipping is adjustable
Continuous output current: 12A, maximum 14A (input 14V, output 12V).
The use of advanced synchronous rectification, the conversion efficiency of up to 98%
Operating frequency: 200KHz
Output over-current, short circuit protection, output short circuit is not afraid even end, the circuit will automatically protect
Inputs with 15A fuse, want to add a security protection measures
Chip with overheat protection, over-temperature automatically stop working
Input undervoltage protection, stop working when the input voltage is lower than 4.5V
No input reverse polarity protection, input and output reversed shall be burnt
Soft-start function, make sure the power during no voltage overshoot
Enabled client can directly control the output voltage of the switch, straightforward ground to close the output voltage, the module goes into sleep mode. Not connected (floating) output opens.
Input and output terminals are used LC filter, and the use of large-capacity high-frequency low-impedance ceramic capacitors and electrolytic capacitors, to ensure low input and output ripple. Input 14V, output ripple when 12V10A ≤30mVp-p. Especially in the automotive application conditions, does not interfere with other devices
Full load temperature rise: 50 ℃, heat sinks have been shipped, to enhance heat dissipation
Industrial operating temperature range: -45 ~ + 85 ℃
Volume: 85X48X25mm (length X width X height)
Connection: Terminal type
