- Model Number:1018
- Type:integrated circuit, Voltage Regulator
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:1018
- Brand:MIC
- Category:MODULE
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40°C ~ 125°C
- Warranty:360days
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

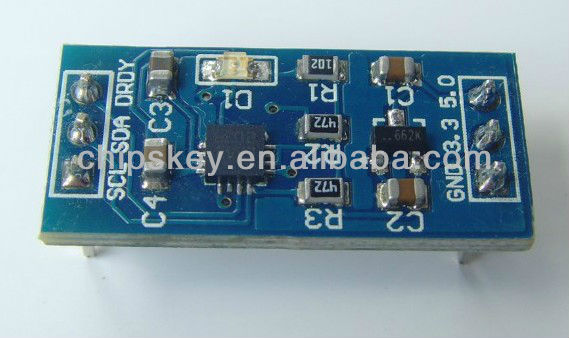

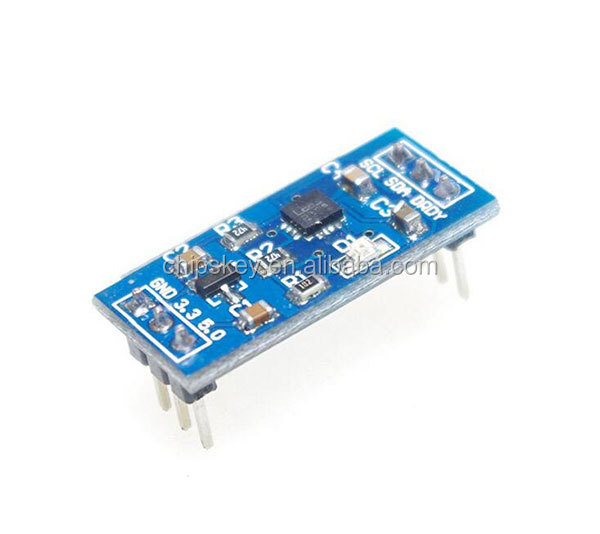

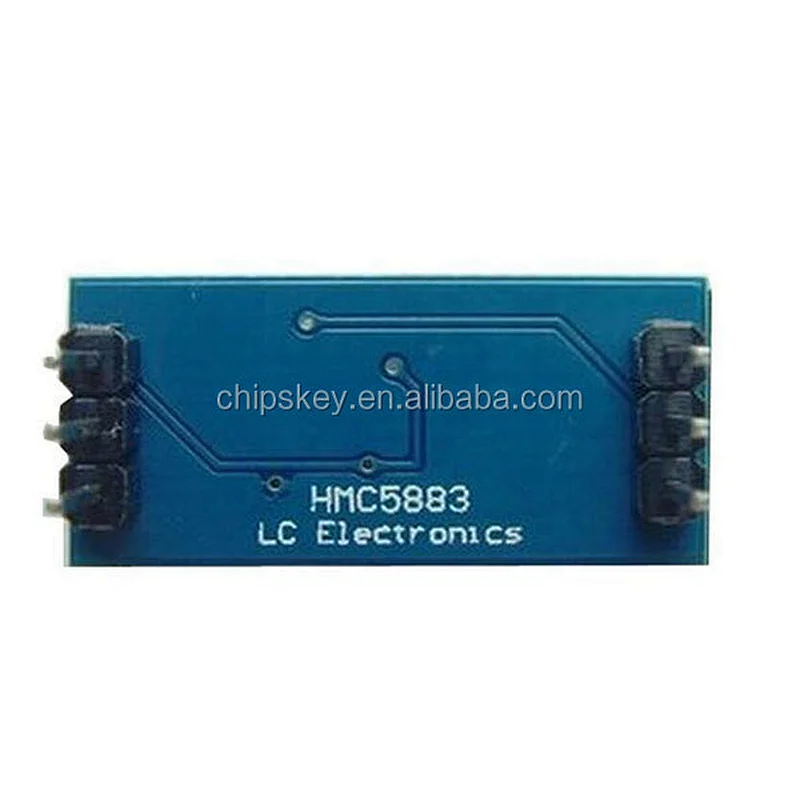

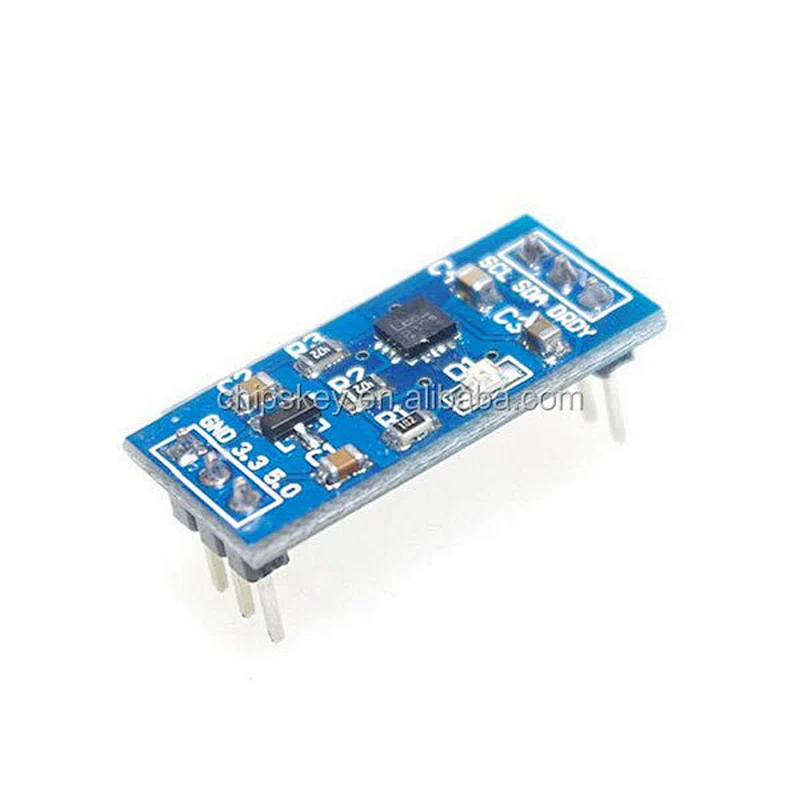

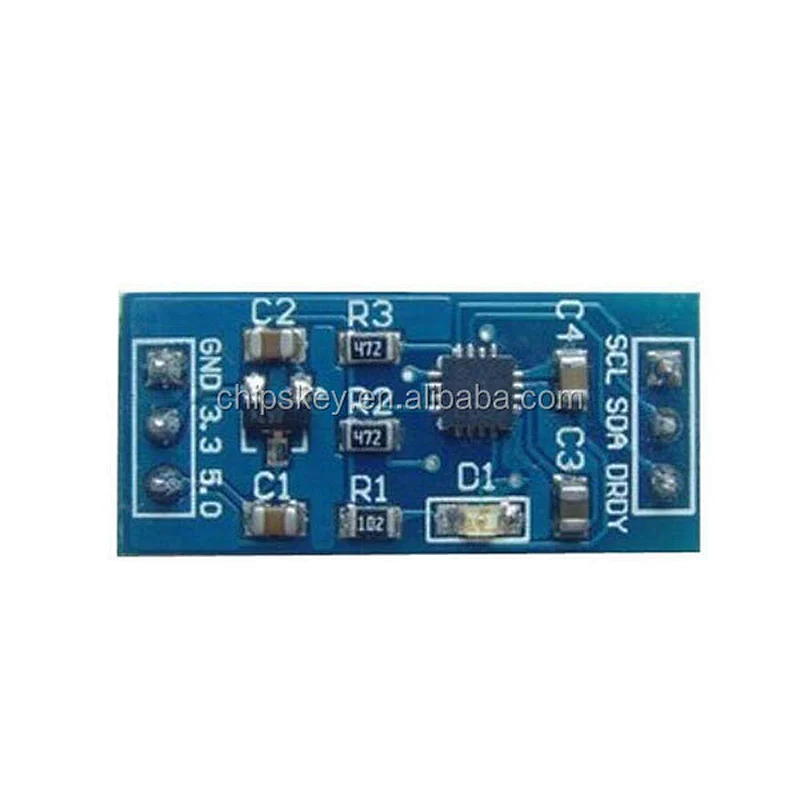

HMC5883l Digital Electronic Compass Electronic Compass Three-axis Magnetoresistive Sensor Module
1. Specification:
Specification:
1, on-board digital three-axis electronic compass HMC5883L chip, built-in AD converter, supports IIC communications protocol
2, support 5V/3.3V voltage input
3, the module can be used in low cost areas of the compass and the magnetic field detection
4, the pin has been used to bring out the standard 2.54mm pin
5, PCB size: 25 (mm) x12 (mm)
Note: it can provide schematics, test procedures and related information
Package Included:
1*HMC5883L digital electronic compass
