- Model Number:3034
- Type:Data Conversion Development Boards and Kits
- Place of Origin:China
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

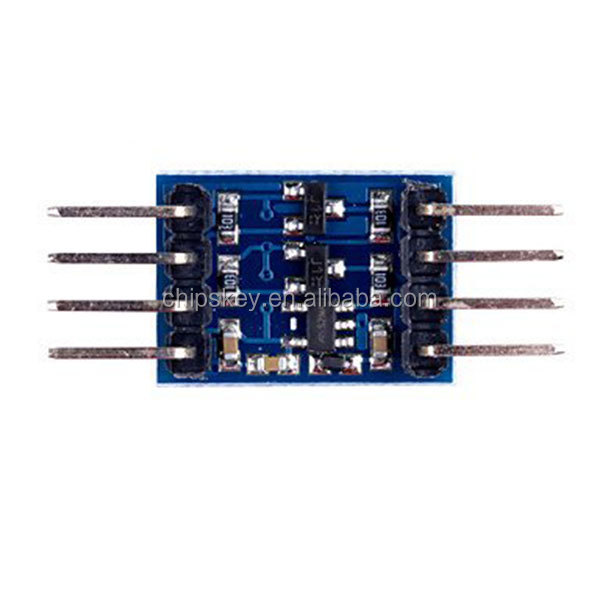

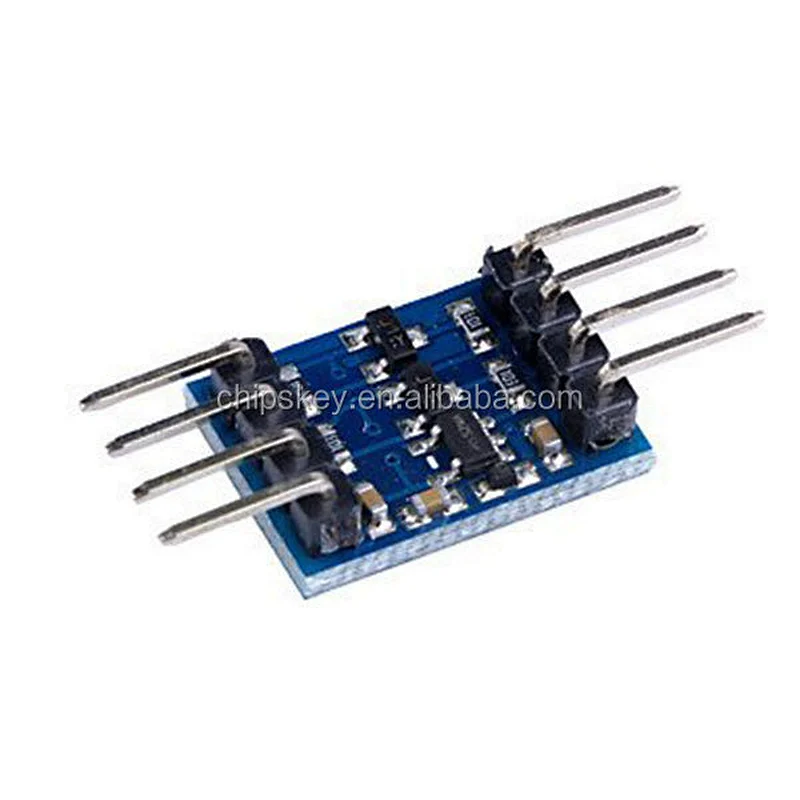

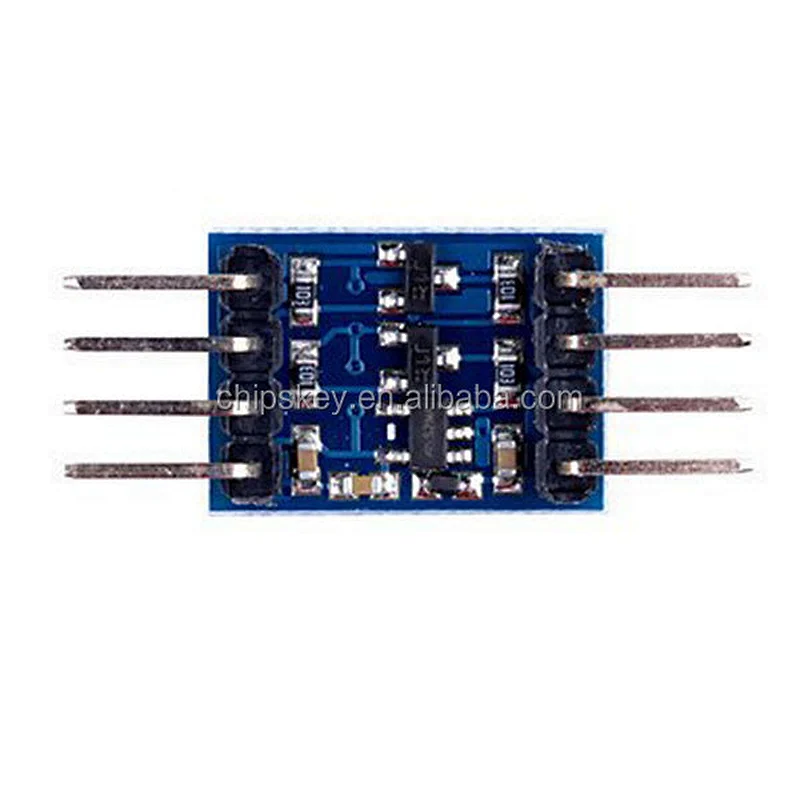

IIC I2C level converter module, 5-3v system compatible,sensor module
IIC I2C level converter module 5-3v system compatible. Shop module can be used with use

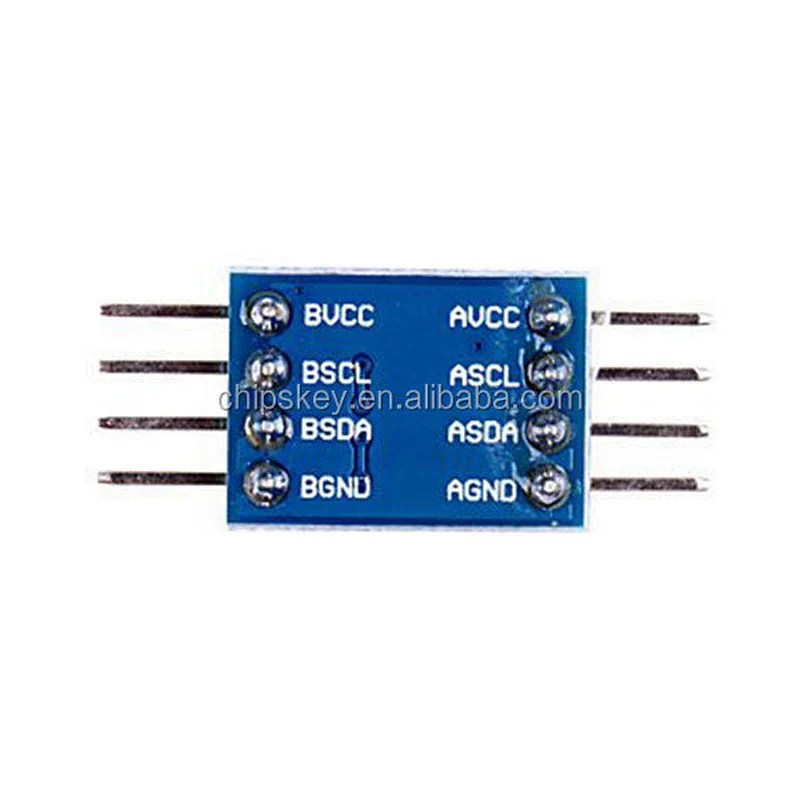

AVCC is connected to 5V system power
The ASCL then 5V system SCL
ASDA is connected to 5V system SDA
AGND is connected to 5V system GND
The BVCC pick 3V system power
The BSCL pick 3V system SCL
The BSDA pick 3V system SDA
BGND then 3V system GND
AVCC is connected to 5V system power
The ASCL then 5V system SCL
ASDA is connected to 5V system SDA
AGND is connected to 5V system GND
The BVCC pick 3V system power
The BSCL pick 3V system SCL
The BSDA pick 3V system SDA
BGND then 3V system GND
