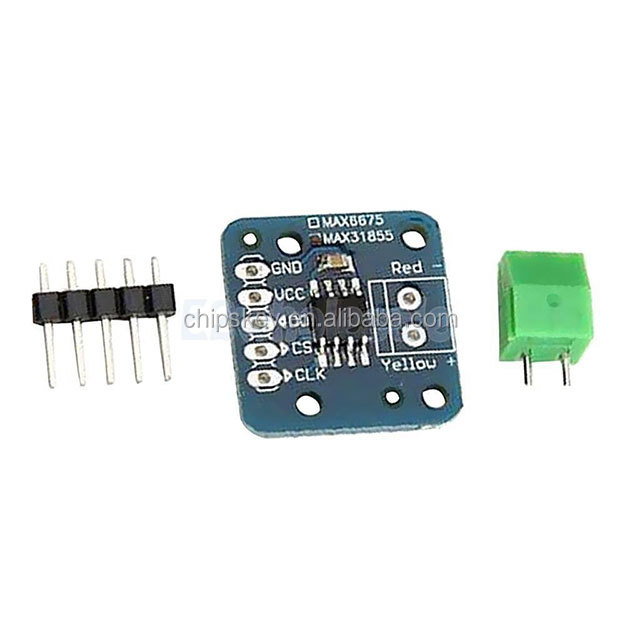

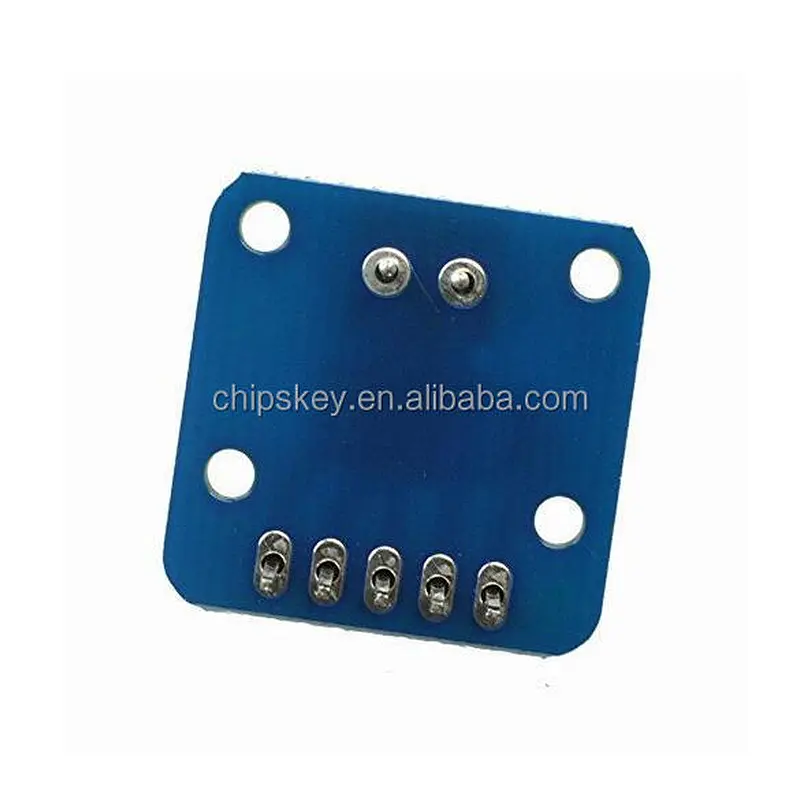

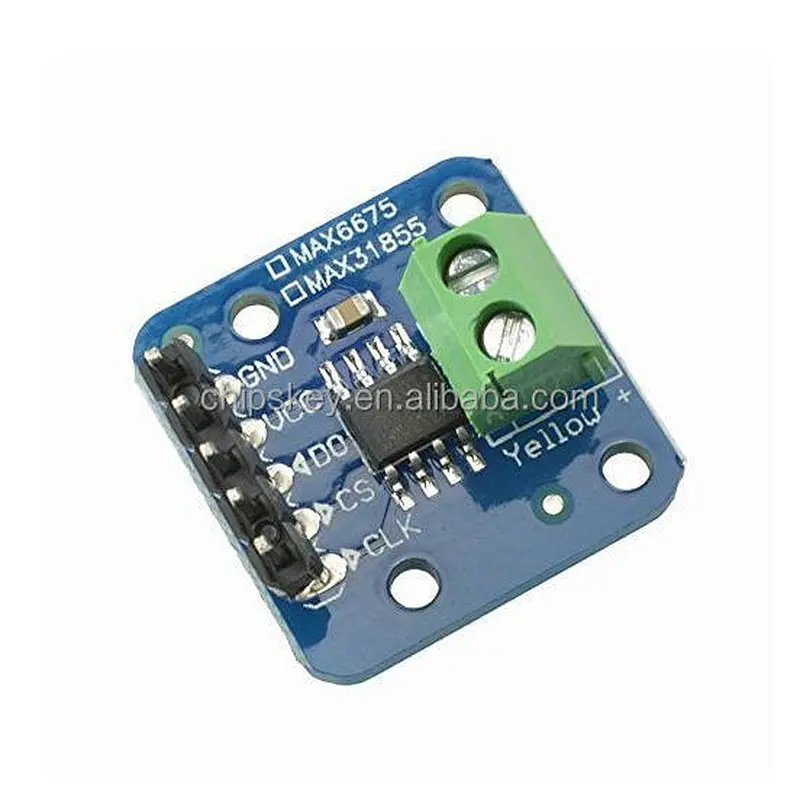

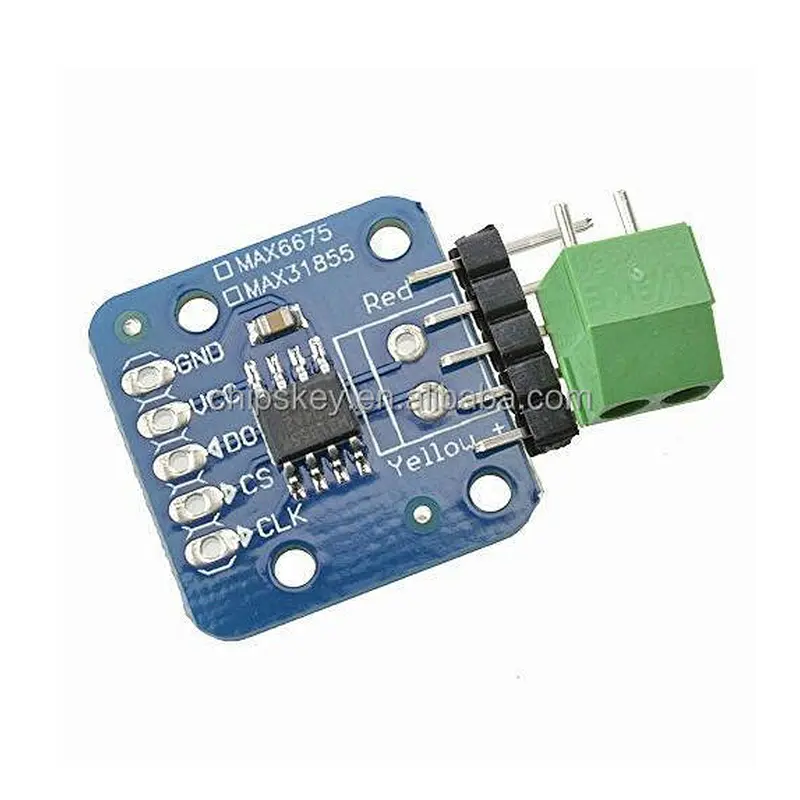

MAX31855 K Type Thermocouple Breakout Board

• Model Number:28226
• Type:Other
• Place of Origin:China
• Color:blue
• Weight:0.0
• SKU:28226

MAX31855 K Type Thermocouple Breakout Board Temperature -200C to +1350°C Arduinos

Product features
measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
SPI interfaces, high-speed transmission
the input voltage is 3v DC
direct digital output temperature value, no amplifiers, no ADC
14-bit resolution, 0.25 degree temperature accuracy
Product description
1.Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference.

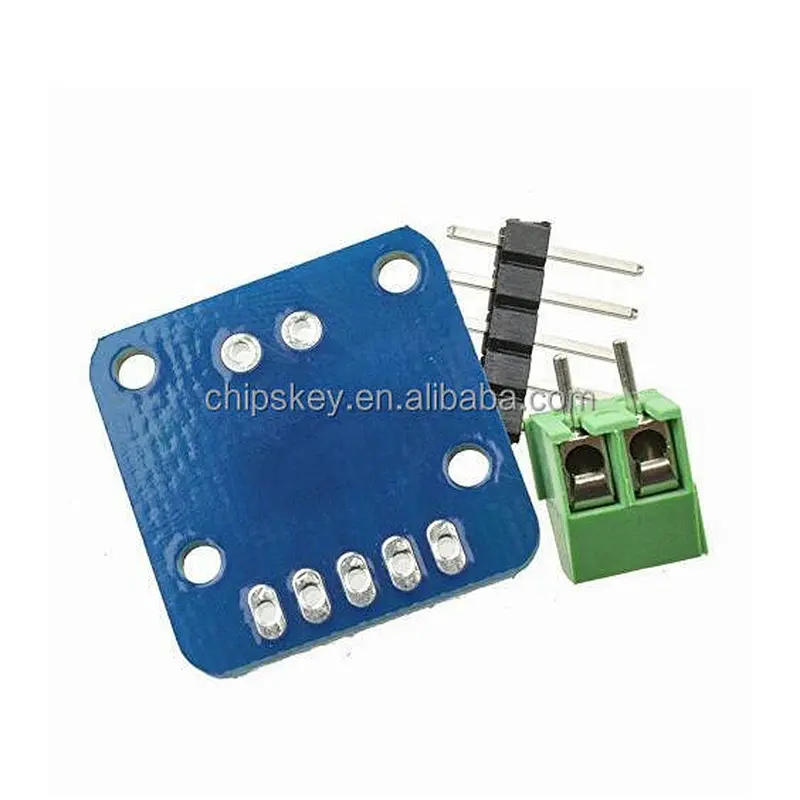

2.Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).

Description
1. measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
2. SPI interfaces, high-speed transmission
3. the input voltage is 3v DC
4. direct digital output temperature value, no amplifiers, no ADC
5. 14-bit resolution, 0.25 degree temperature accuracy

Note
1.Works with any K type thermocouple
2 K thermocouples have about ±2°C to ±6°C accuracy
4.Internal temperature reading
5.SPI data output requires any 3 digital I/O pins.
