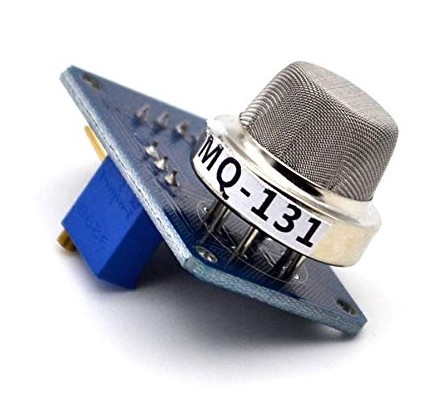

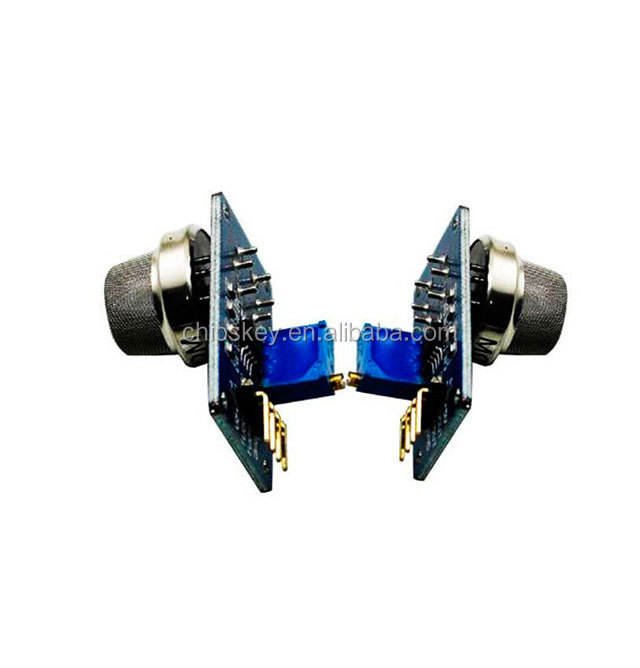

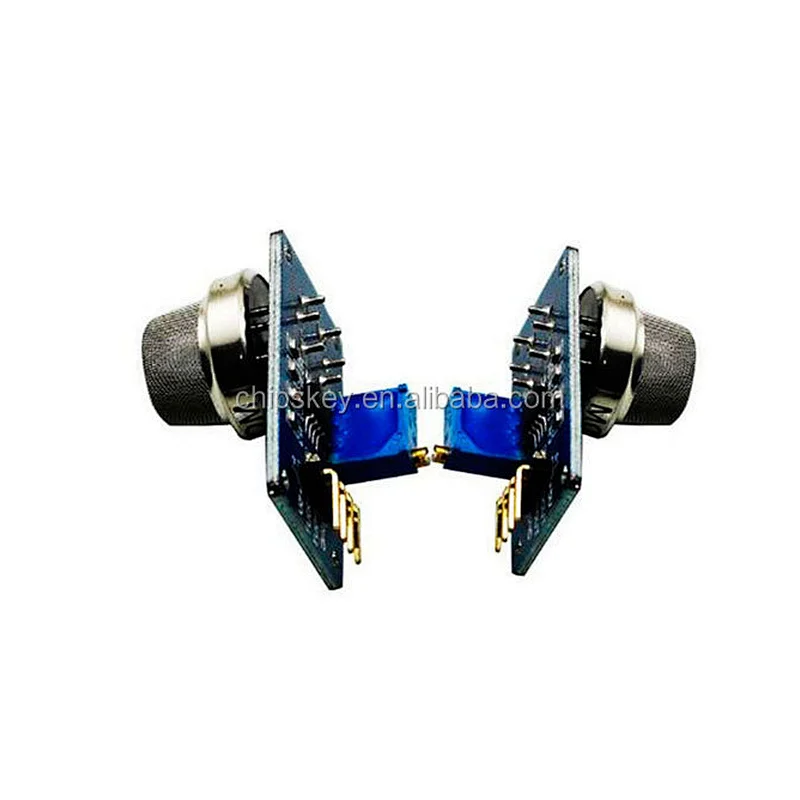

[With analog and TTL level signal output]
[Analog output voltage is linear and concentration by comparing the correspondence between the resistance conversion]
1. The module with level output signal with alarm signal lights;
2. The sensor module with analog signal output, voltage range: 0-5V;
3. Active-low level signal output can drive PNP transistor can also be connected to the microcontroller IO port;
4. Analog output voltage increases with the increase of ozone concentration, the higher the concentration the higher the voltage;
5. Low concentrations of ozone gas with high sensitivity;
6. Has a long life and reliable stability;
7. After the warm-up with a quick response and resume;
8. With mounting holes to facilitate fixed installation;
9. The probe can plug design, convenient test;
10. Module with temperature compensation function, adaptive and more reliable.
Application:
Mainly used for qualitative detection, suitable for families, gas detection equipment environment, suitable for the detection of
ozone gas, gas sensors tested concentration range: 1 to 1000ppb, detailed information on.
Specifications:
The heating voltage: 5 ± 0.2V (AC · DC)
The operating current: 180mA
The circuit voltage: DC5V (maximum DC 24V)
Load resistance: 10K (adjustable)
Detection concentration range: 1-1000ppb
Clean air voltage: ≤1.5V
Sensitivity: ≥3%
The response time: ≤1S (3-5 minute warm-up, warm-up time of 48 hours theory)
Response time: ≤30S
Component Power: ≤0.9W
Operating temperature: -10 ~ 50 ℃ (nominal temperature of 20 ℃)
Humidity: 95% RH (nominal humidity 65% RH)
- Model Number:23060
- Type:Sensor Development Boards and Kits
- Place of Origin:China
- Certification 1:ROHS
- Certification 2:CE
- SKU:23060
- Skype:kevinchipstech
Product Description
Title goes here.
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduinos, sensor module for arduinos, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduinos & Modules For Raspberry PI ,Smart Home Products
WareHouse

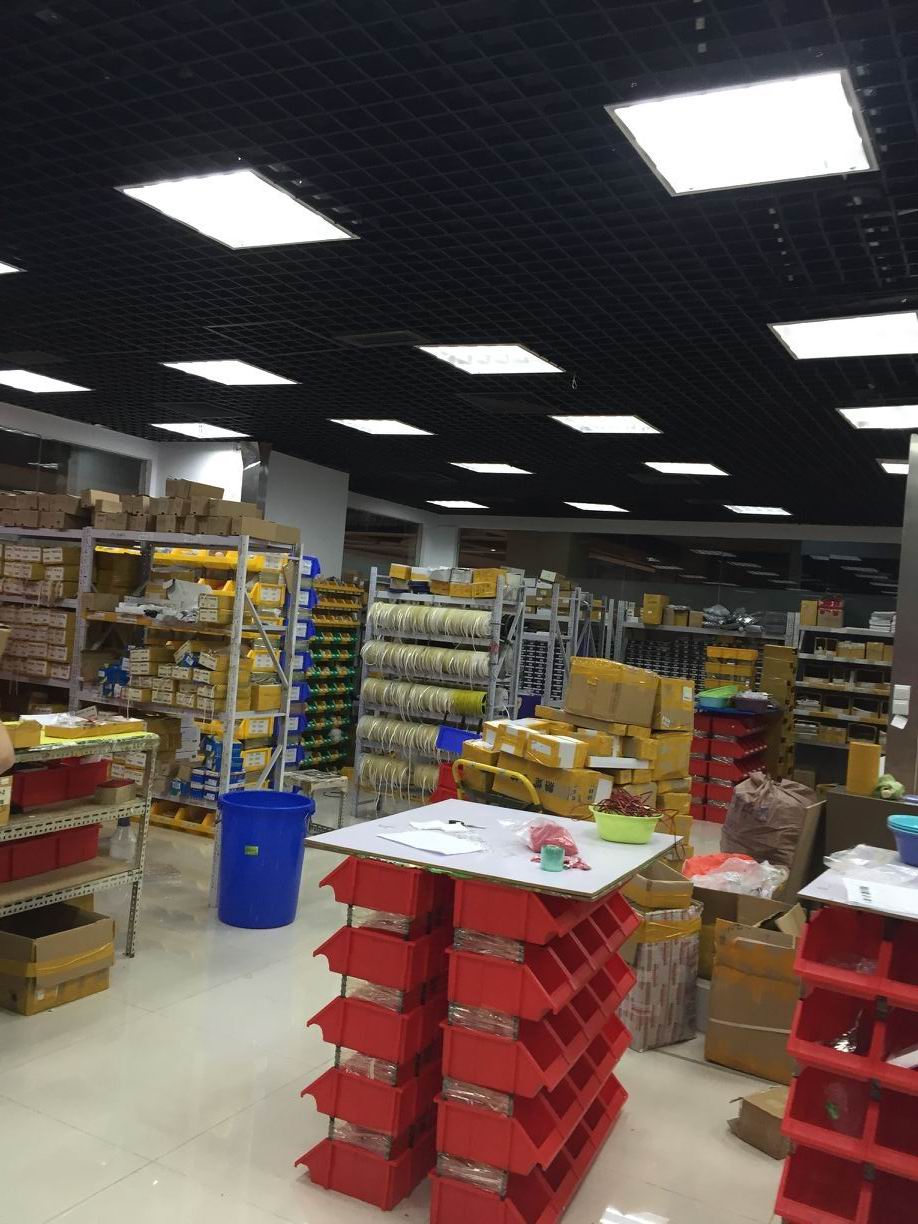

This is our Warehouse ,We Can Make A Fastest Shipment per Day
