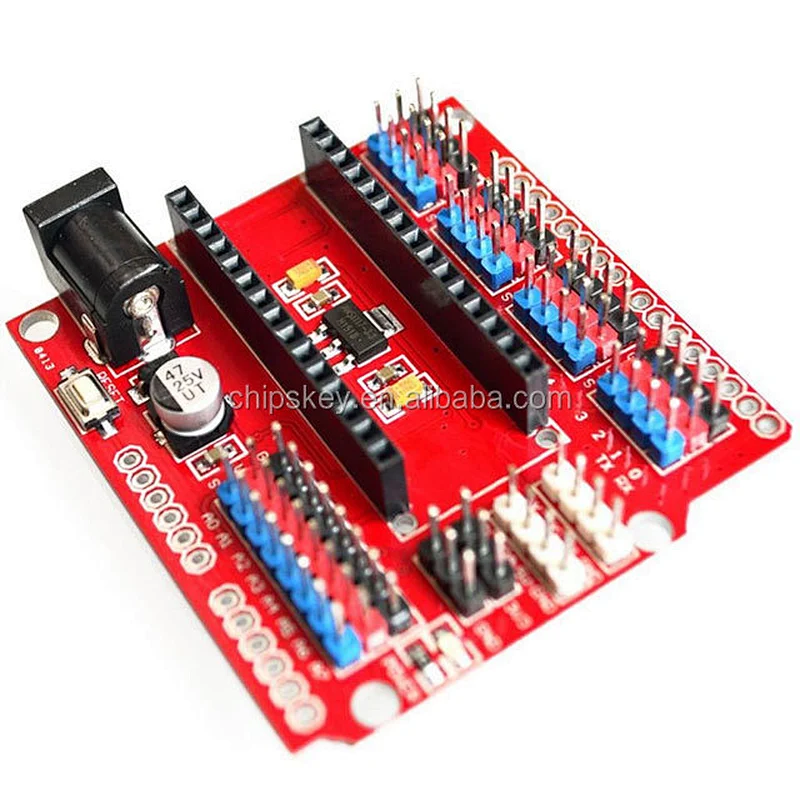

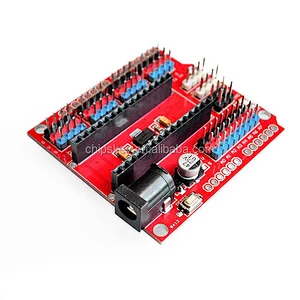

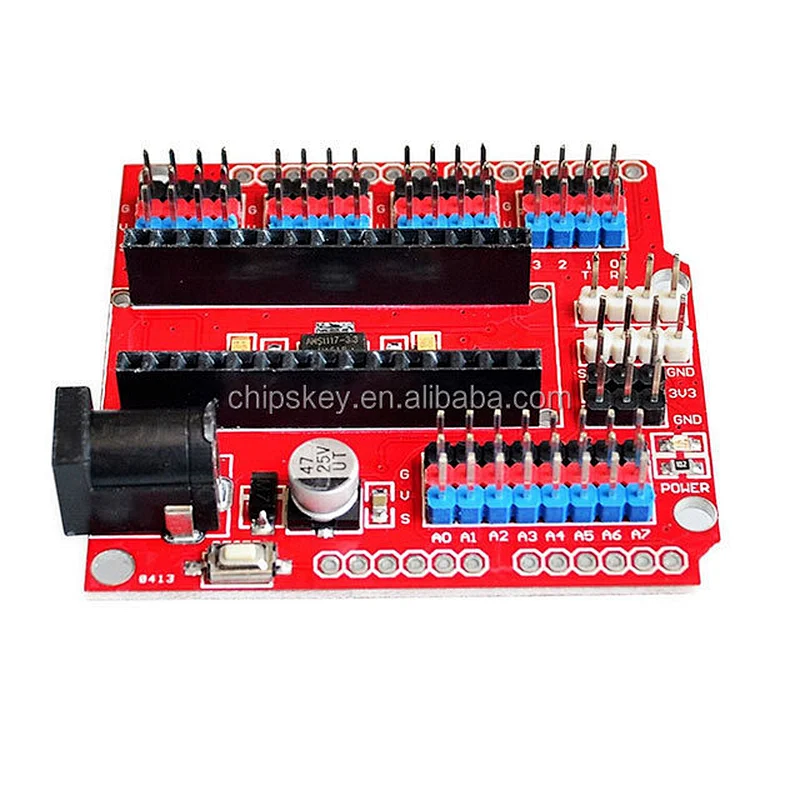

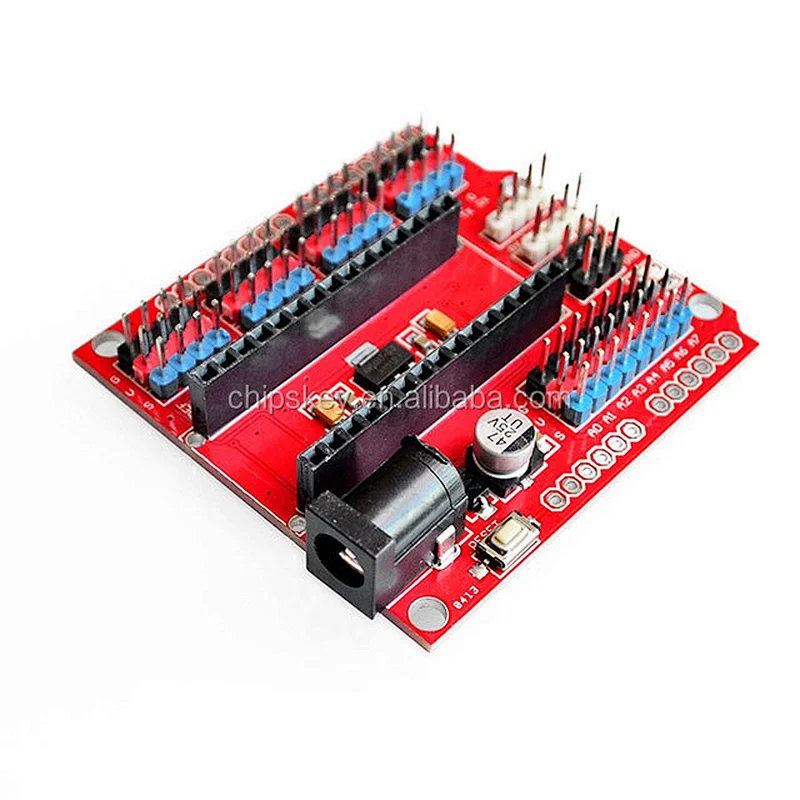

Nano Portotype Shield

• Model Number:23149
• Type:Other
• Place of Origin:Guangdong, China
• Brand Name:chipskey
• SKU:23149

"Product Features
Lead I2C board on the motherboard, convenient I2C device connection
14 I / O Pins (with GND, Power and Signal Servo Types)
Eight analog pins with power output and GND
Draw all the digital I / O port and analog I / O port, each IO port has a positive and negative power interface standard
The I2C leads to the motherboard to facilitate the I2C device connection
Increase the DC power connector. The actual supply current of the USB interface on the NANO board is only 50ma, which brings about a large current device such as a steering device. At this moment, I provide an external power supply on the DC power supply interface to ensure the stability of the device operation.
14 I / O Pins (with GND, Power and Signal Servo Types)
8 Analog pin with power output and GND
6 PWM pin
1 Servo power input
I2C expansion pin
AREF output
3.3V output
Size: 6x5.3x1.3cm (approx)
"
