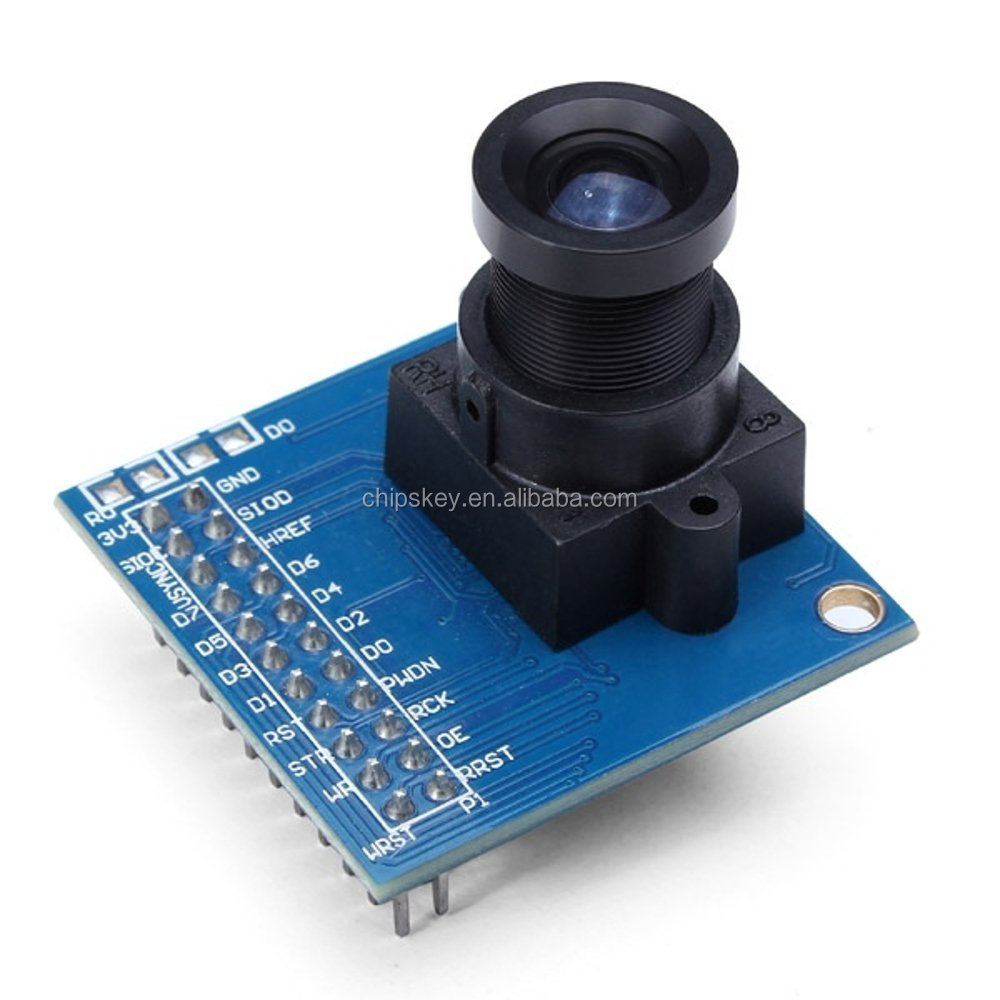

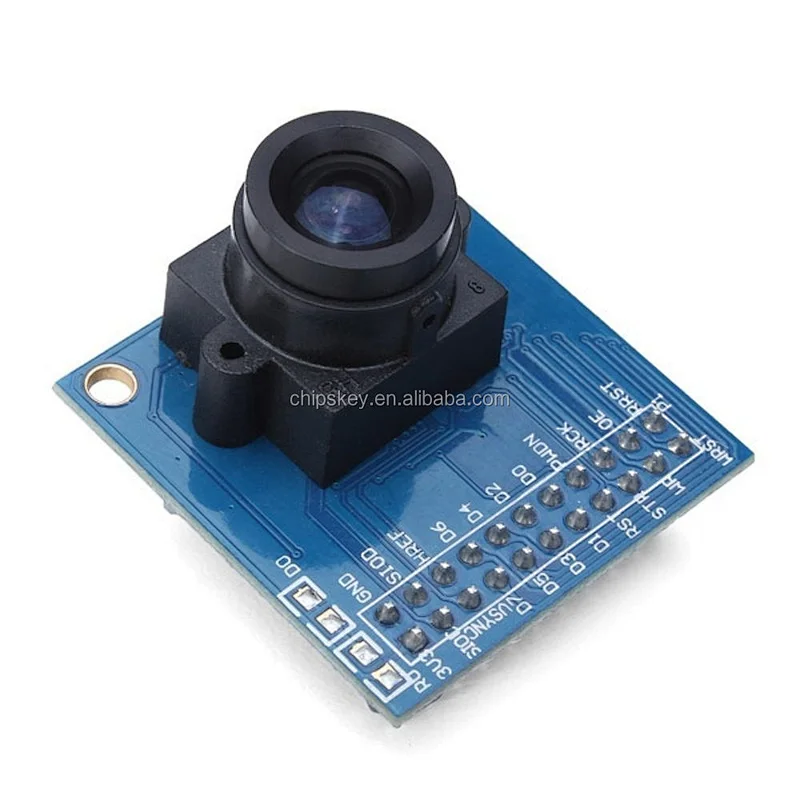

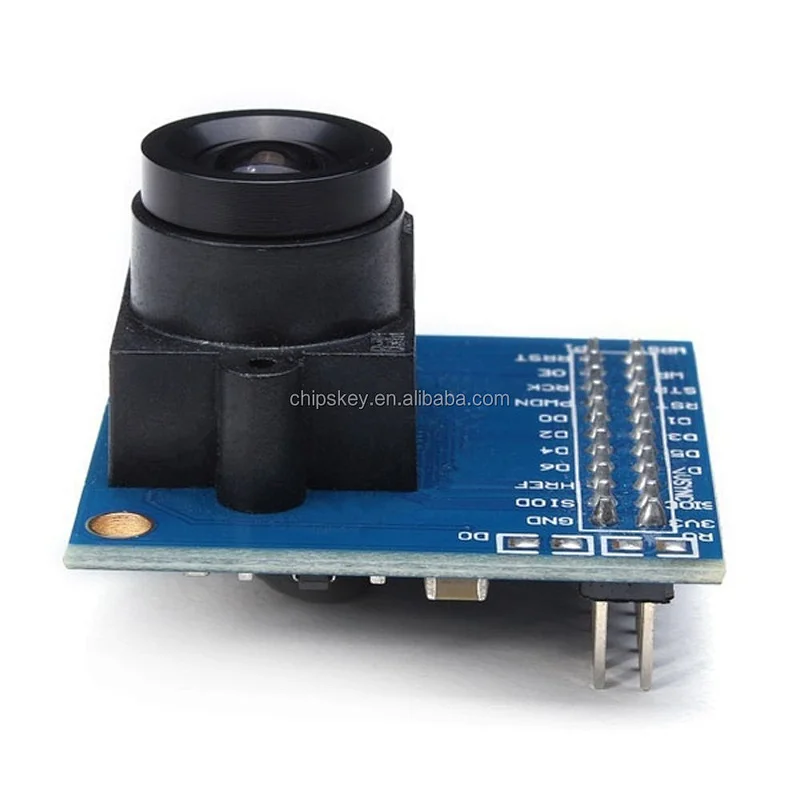

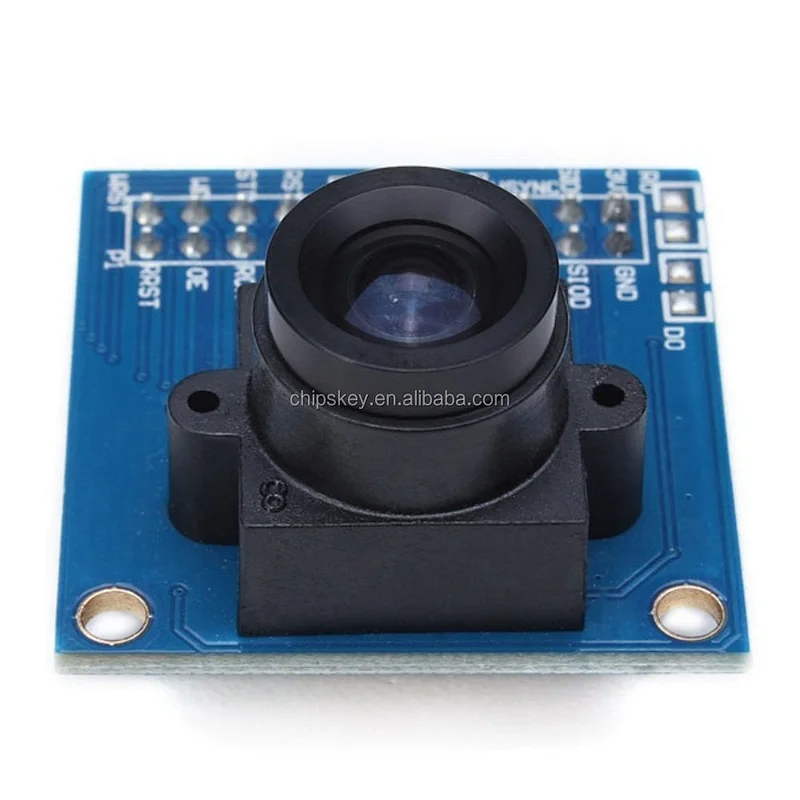

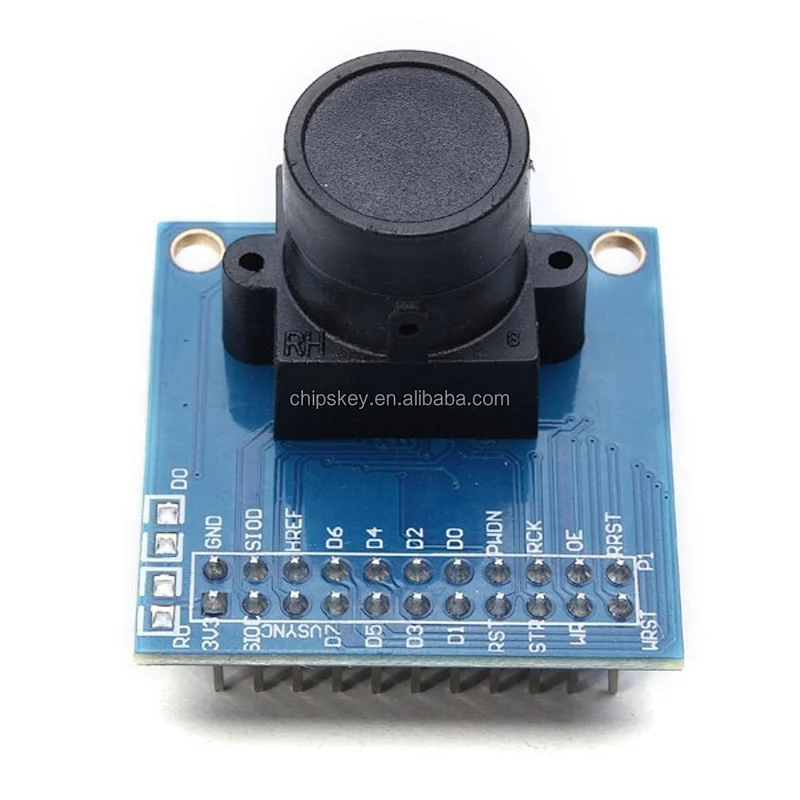

OV7670 camera module(AL422 FIFO)

• Model Number:4015
• Type:Other
• Place of Origin:China
• Part number:OV7670 camera module
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch

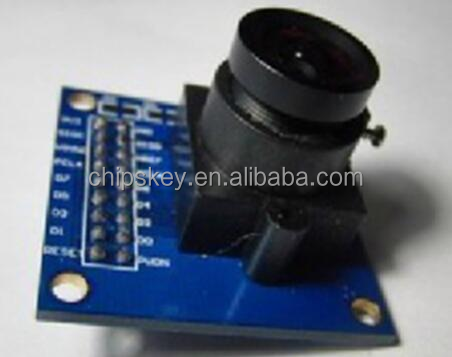

OV7670 camera module (with AL422 FIFO, the band LD0, with source crystal)

OV7670 image sensor, small size, low voltage, providing single-chip VGA camera and image processor all the features. Through the SCCB bus control, you can output the entire frame, sub-sampling, taking a variety of windows, etc. Resolution 8 affect the data. The product is VGA image up to 30 frames / sec. Users can fully control the image quality, data formats and transmission. All image processing functions including gamma curve process, white balance, saturation, hue and so on through the SCCB interface programming. OmmiVision image sensor applications unique sensor technology, by reducing or eliminating optical or electronic defects such as fixed pattern noise, prop tail, floating powder, etc., to improve image quality, get a clear and stable color image.
- High sensitivity suitable for illumination applications
-Low voltage suitable for embedded applications
- Standard SCCB interface compatible with I2C interface
-RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
-Supports VGA, CIF, and from a variety of sizes CIF to 40x30
- VarioPixel sub-sampling mode
- Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
-ISP has a compensation function to eliminate noise and dead pixels
- Support for image scaling
- compensation for loss of optical lens
- 50/60Hz automatic detection
-Saturation automatically adjust (UV adjustment)
-Automatically adjust edge enhancement
- Noise Reduction automatically adjust
Key parameters
Photographic array 640X480
IO voltage of 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
Power operation 60mW/15fpsVGAYUV
Sleep<20μA
Operating temperature -30 °C to 70 °C
Stable 0 °C to 50 °C
Output Formats (8)? YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
Optical Size 1/6"
FOV 25 °
Maximum rate of 30fps VGA Chen
Sensitivity 1.3V / (Lux-sec)
SNR 46 dB
Dynamic range of 52 dB
View Mode Progressive
Electronic Exposure one line to the 510 line
Pixel Size 3.6μm x 3.6μm
Dark Current 12 mV / s at 60 °C

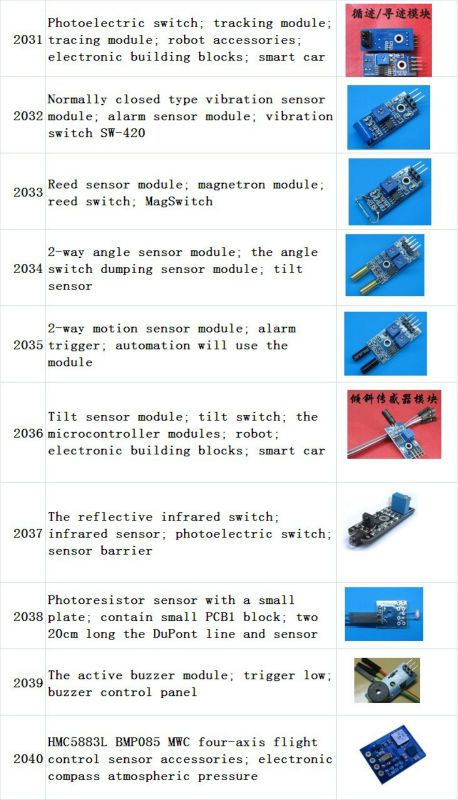

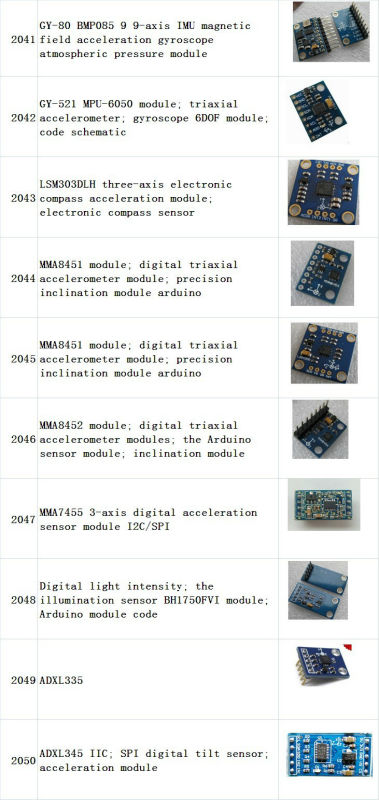

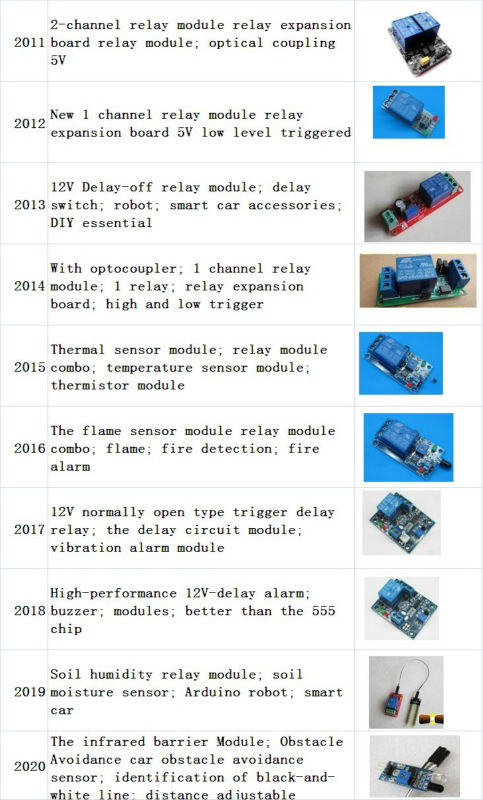

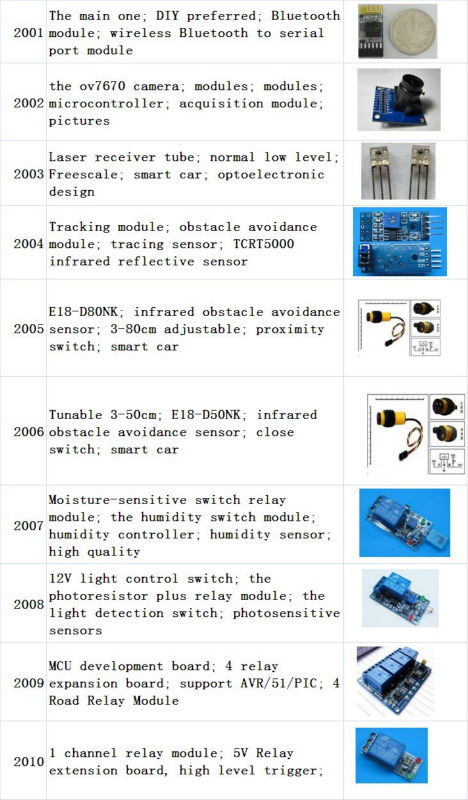

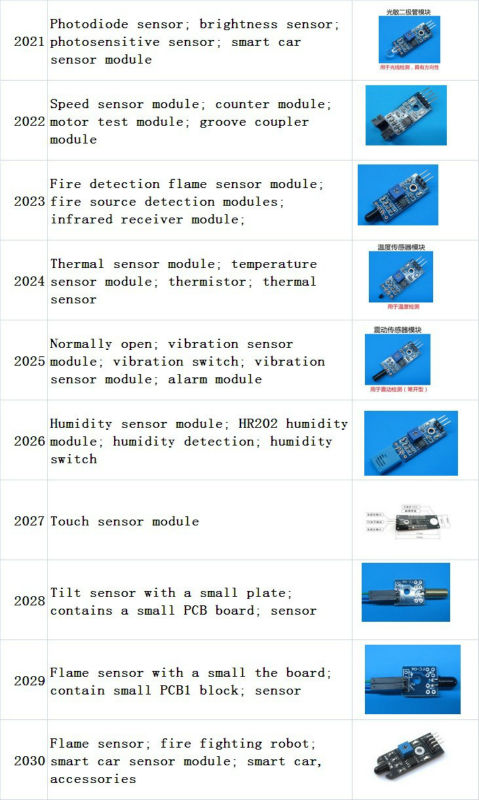

Following are some more interesting modules for your reference, much funnny parts cann't finish list here, pls contact us for detail, thanks!
