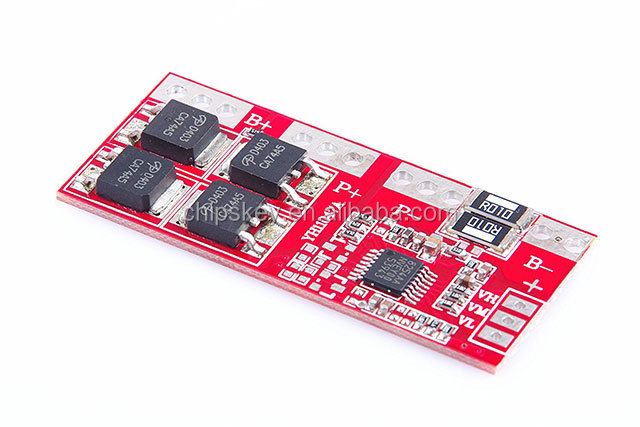

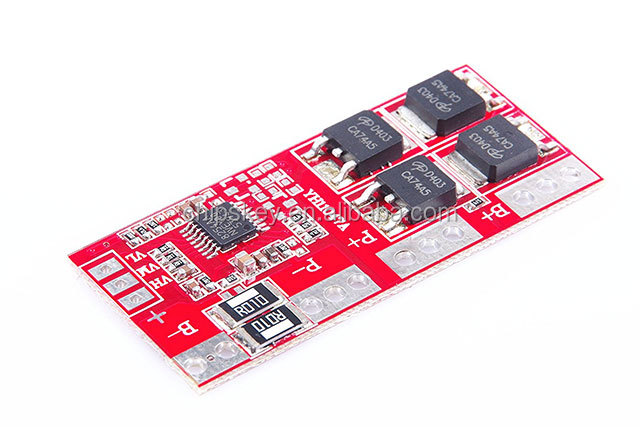

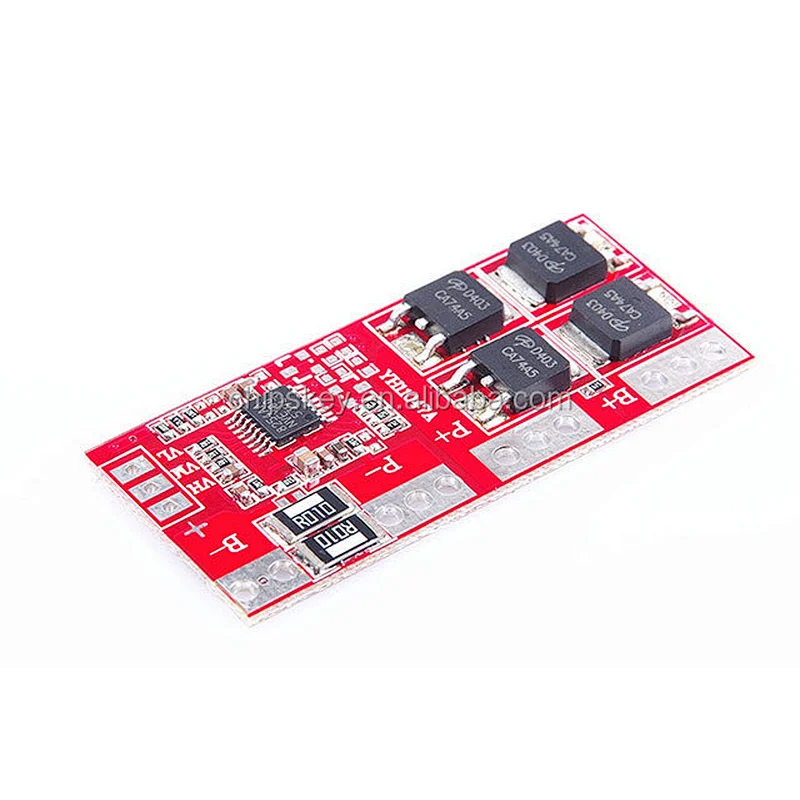

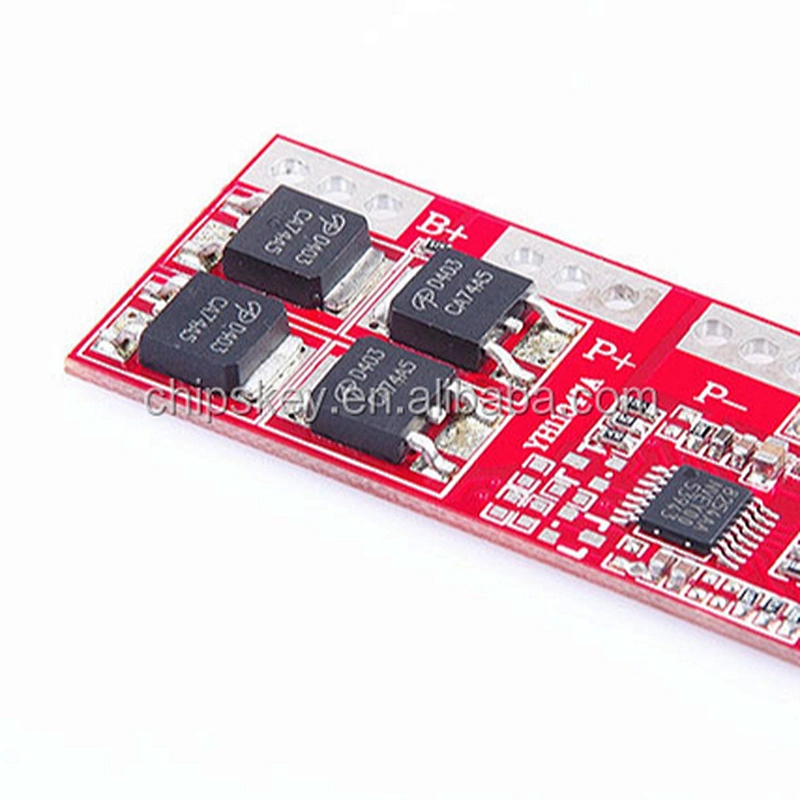

3S series lithium battery protect board no activation / auto recovery 10.8V 12.6V 30A high current

• Model Number:25011
• Type:Other
• Place of Origin:China

3S series lithium battery protect board / no activation / auto recovery 10.8V 12.6V 30A high current

Module nature: polymer lithium battery protection board

Over charge detection voltage: 4.25 + 0.025V

Over charge release voltage: 4.15 + 0.05V

Over discharge detection voltage: 2.50 + 0.08V

Over discharge voltage: 3 + 0.1V

Over current: 20-30A

Working current: 15A (natural heat 10A, plus heat sink 15A, maximum instantaneous current 30A)

Lifting condition: the protection of the conditions to lift the automatic recovery, without activation (optional charger activation)

Main functions: over charging protection, over discharge protection, short circuit protection, over current protection.

Working temperature: -40~+85 degrees (please strengthen the heat sink when the ambient temperature is too high).

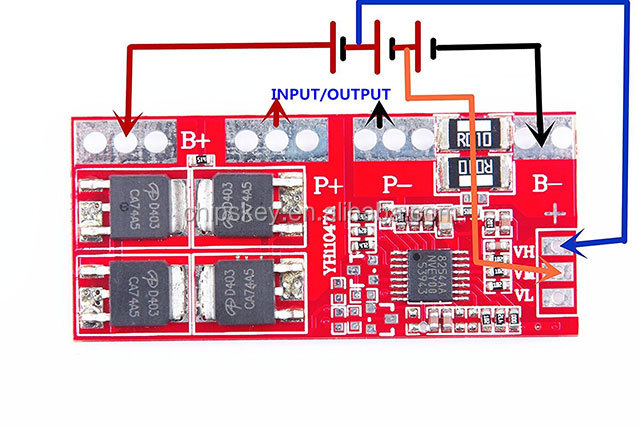

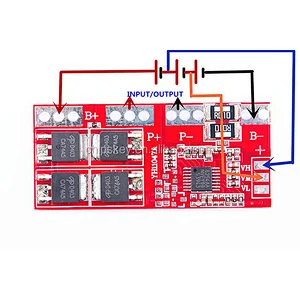

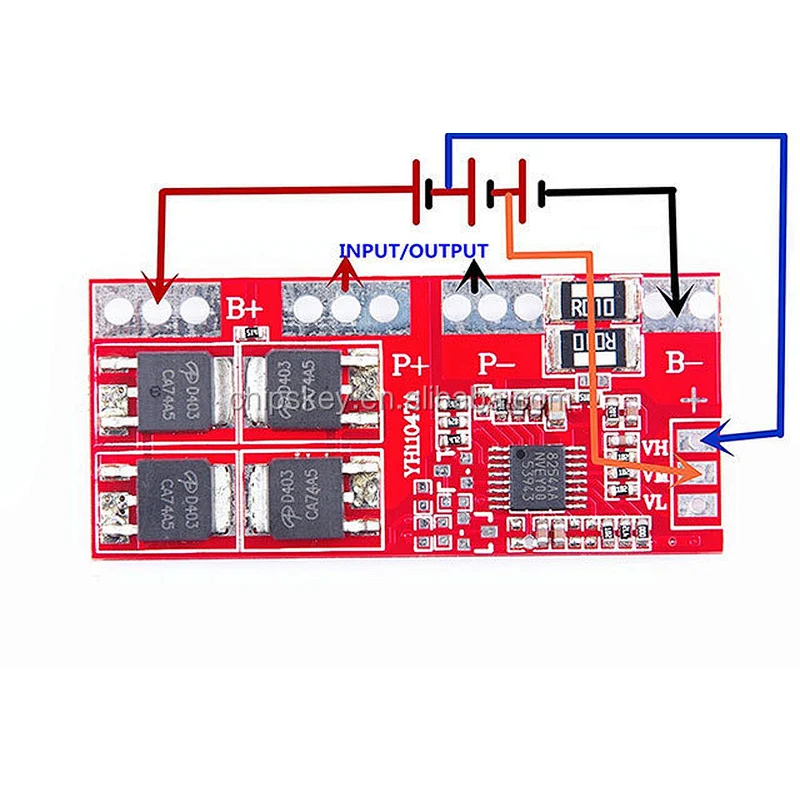

Connection mode: welding output

Module size: 50mm*22mm*4mm
