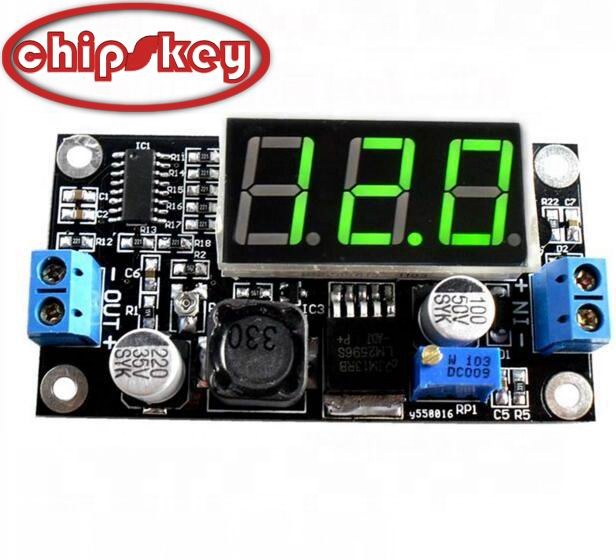

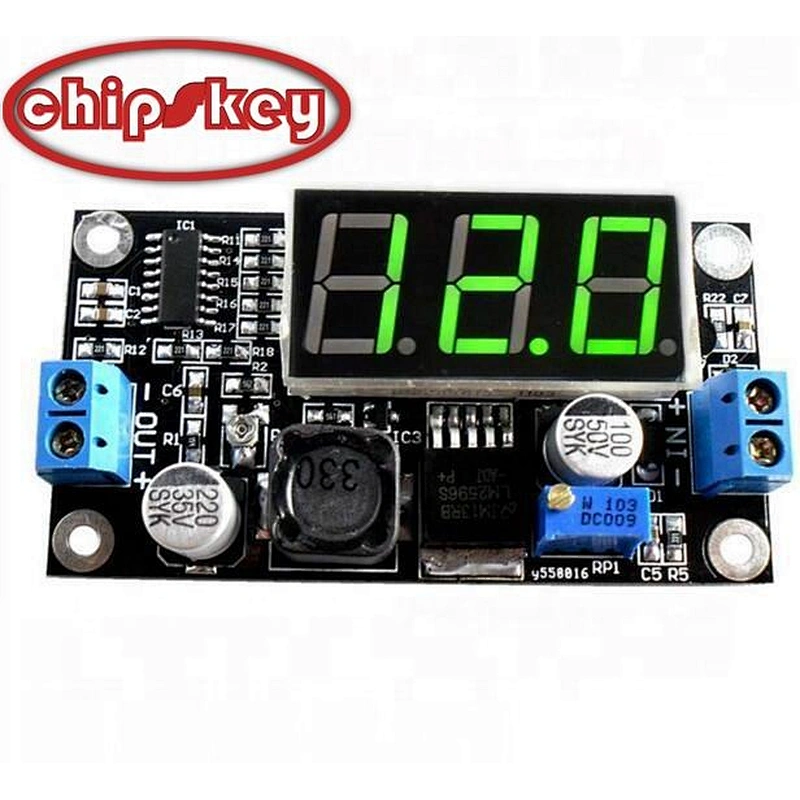

Chipskey XH-M136 LM2596 DC step - down power module with digital green display 4.5 - 40v to 1.25 - 37v

• Model Number:30119
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:30119
• Brand:chipskey

Chipskey XH-M136 LM2596 DC step - down power module with digital green display 4.5 - 40v to 1.25 - 37v

1, the input voltage range is wide, the biggest support for 4.5V-40V,the input voltage must be higher than the output voltage of 1.5Vand above;
2, adjustable output voltage range of 1.25V ~ 37V continuously adjustable output voltage,input voltage must be higher than theabove 1.5V;
3, with output voltage digital display function, adopts advanced microprocessor, the
measuring precision can reach 0.01, the selection of bright green digital tube display,
colorful.
4, with reverse connection protection function;
5, the maximum output current is up to 3A, normal and stablecurrent 2A; input and output
pressure the greater the output current is small;
6, the internal oscillator frequency 150KHZ;
7, the digital tube precision adjustable;
