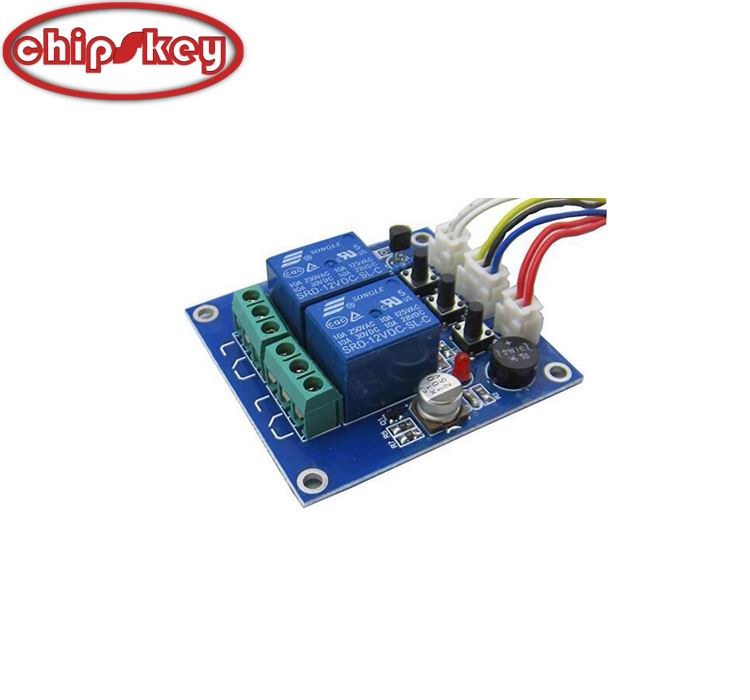

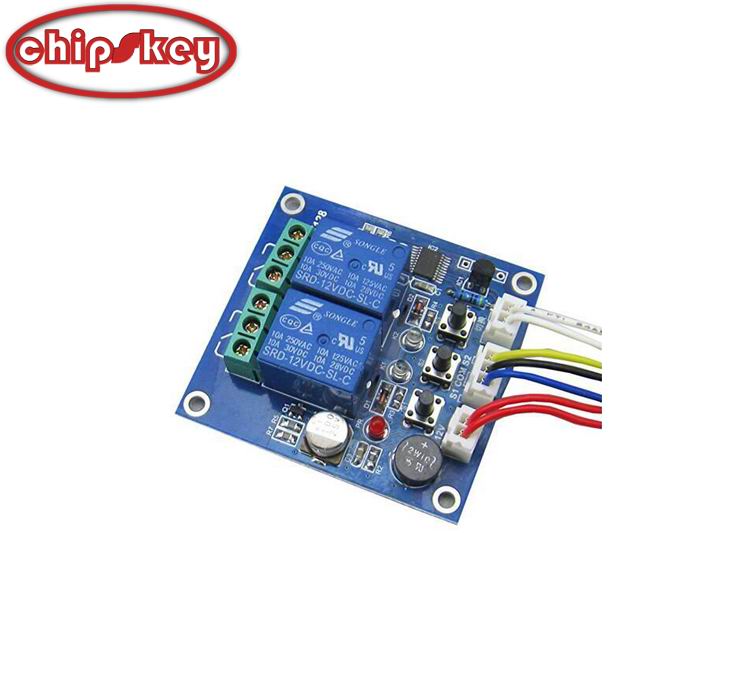

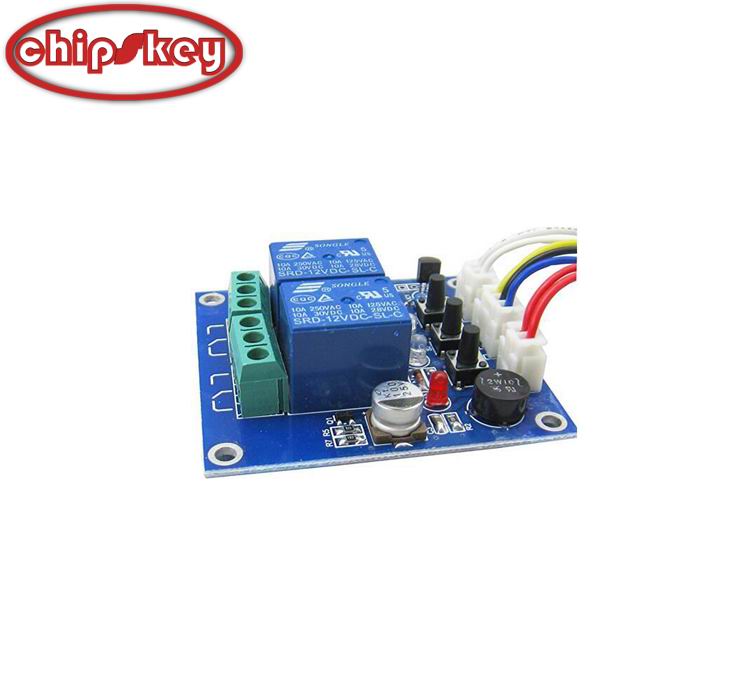

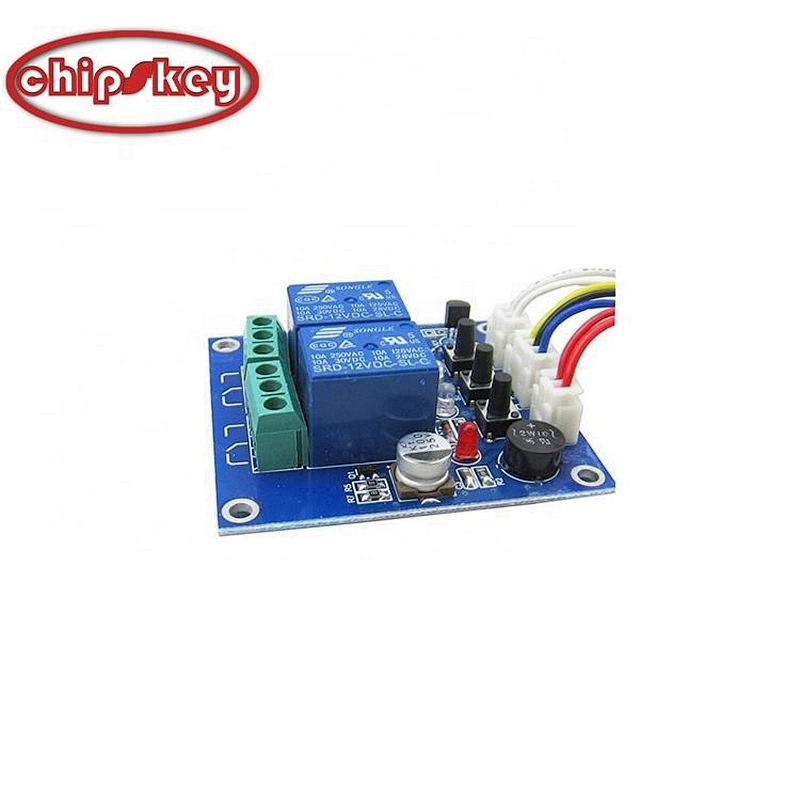

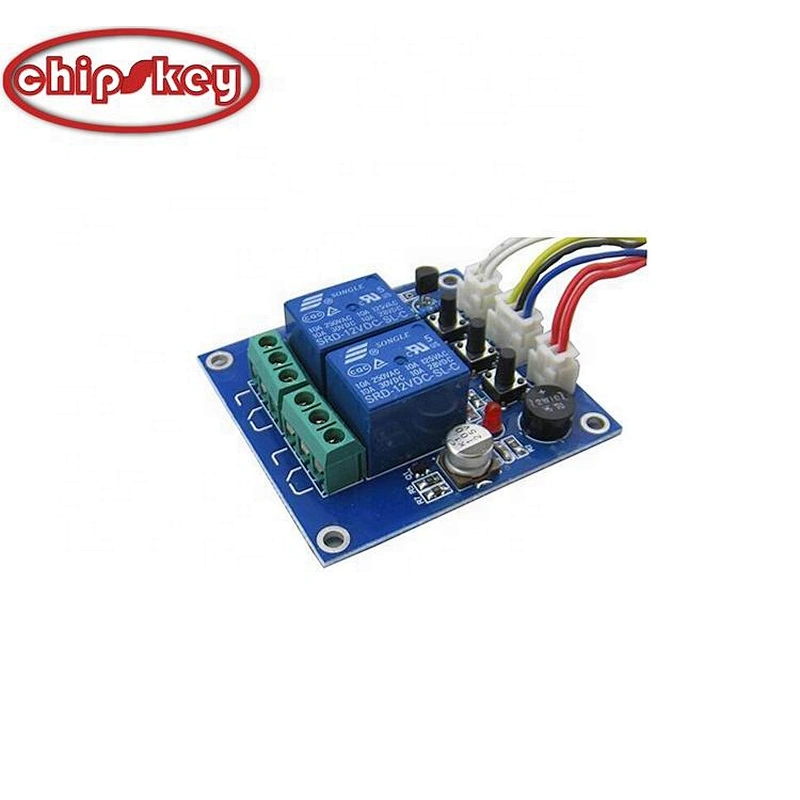

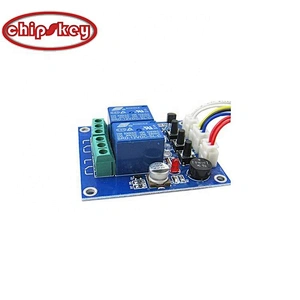

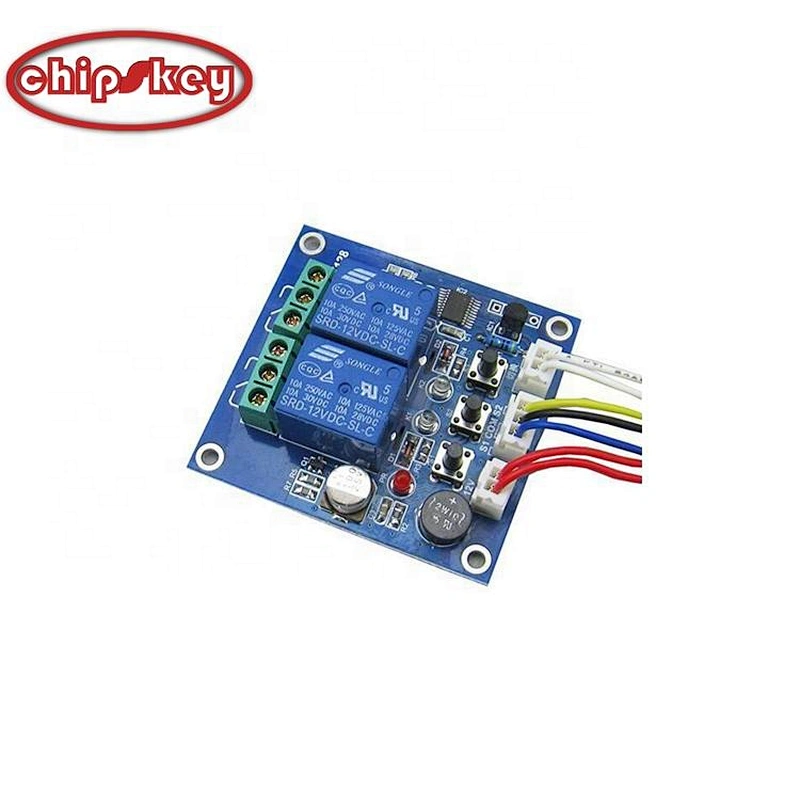

Chipskey XH-M128 2 way relay switch module intelligent cycle control 2 way key switch multi function key selection

• Model Number:30147
• Type:Other
• Place of Origin:China
• SKU:30147
• Brand:chipskey

Chipskey XH-M128 2 way relay switch module intelligent cycle control 2 way key switch multi function key selection

Light Description:

Red for the power indicator, the other two correspond to two relays, when the corresponding relay is closed on

Key Description:

S1: Corresponding to the first relay, after the power is turned on, the relay is fully closed. Press S1 once to close, press again to close,

Trigger process is on → off → on → off

S2: corresponding to the second relay, the relay is fully closed after power-on, press S2 once to close, press again to close,

Trigger process is on → off → on → off

S3: cycle switch, the relay is fully closed after power-on, press S1 pull-in, press S2 pull-in again, then turn off, so cycle

Trigger process is: all off → J1 open → J2 open → all closed → J1 open → J2 open → closed

Terminal Lead Description:

Red 2 lines for the power supply 12V, AC and DC can be, regardless of positive and negative

Blue control relay No. 1, yellow control relay No. 2, the middle black for the public end, the same function and S1S2,

White 2 for the loop control, the same function and S3

Note: the output terminal is isolated, you can control any voltage, understand the electronic look to understand, I do not know no way
