- Model Number:26018
- Type:RF/Wireless Development Boards and Kits
- Place of Origin:China
- Part number:26018
- Brand:chipskey

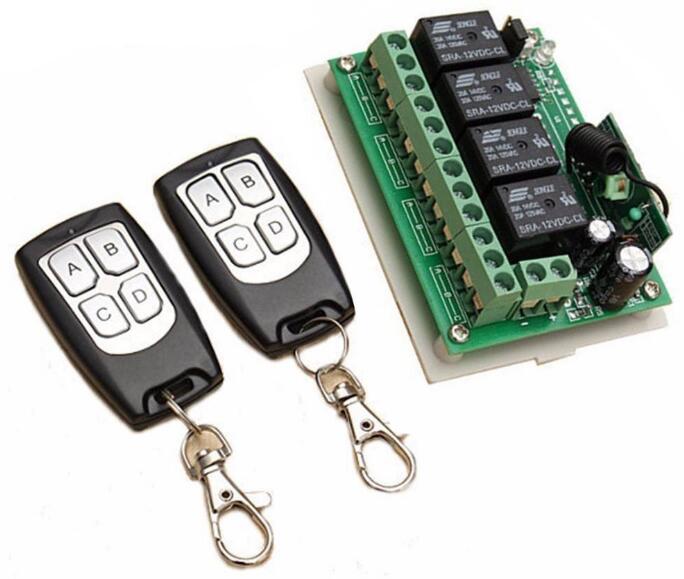

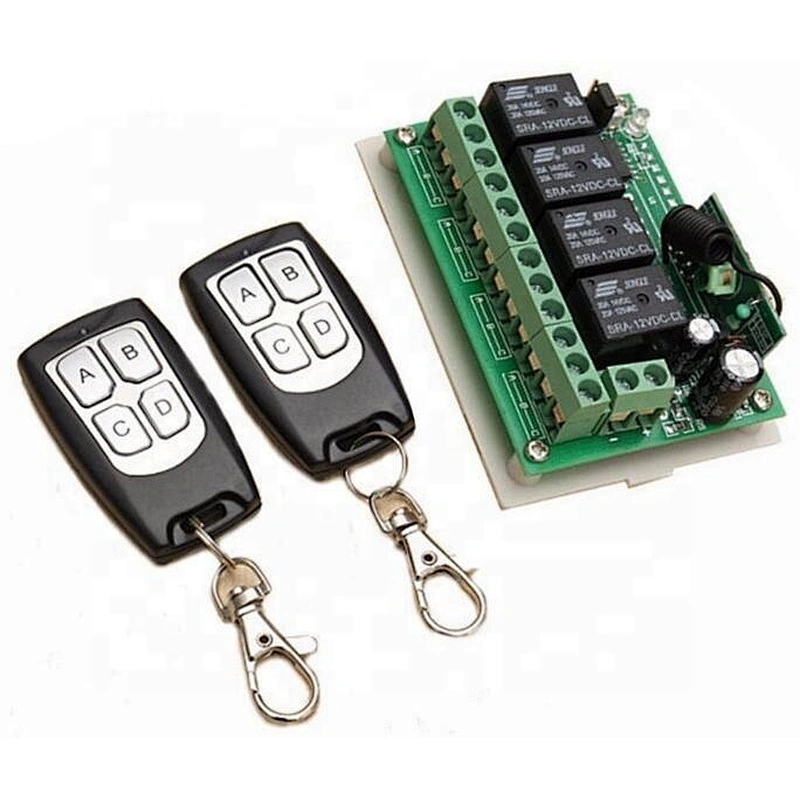

RF Wireless Remote Control universal remote control code grabber Radio Switch Transmitter Receiver DC12V 4 CH
Product description
Output working way:
1. Self-lock: connect the JP1 with the cutting out cap.
2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. Inter-lock: Connect the Jp2 with the Cutting out cap,
Jog: press one button is ON, loosen your finger on the same button is OFF (need one channel switch and one buttons remote control).
Self -lock: press one button for one time is ON, press the same button again is OFF (need one channel switch and one buttons remote control).
Inter-lock: press one button is ON, press another button is OFF (need one channel switch and 2 buttons remote control).

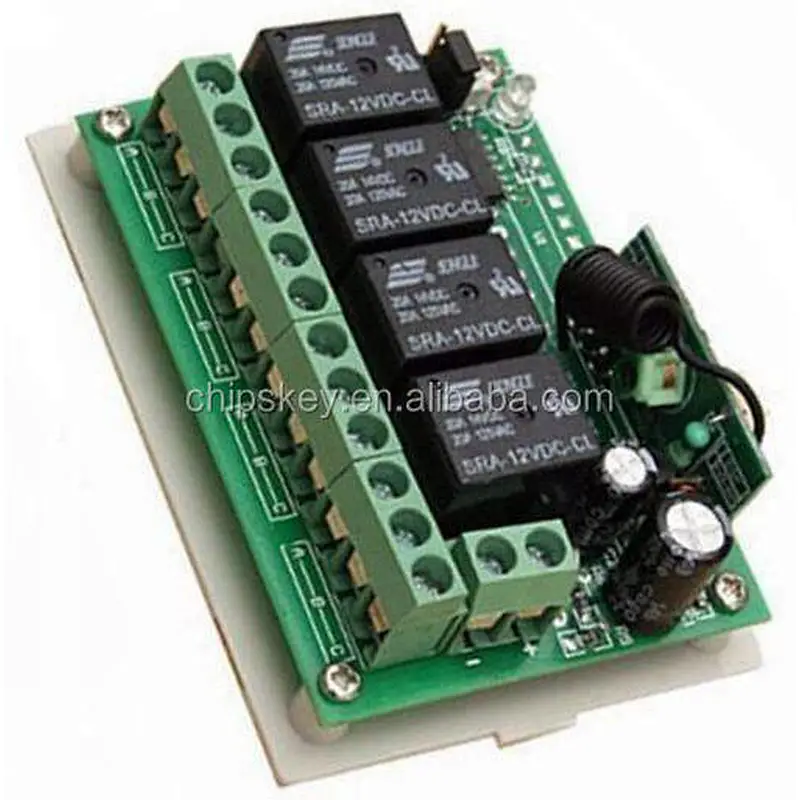

Receiver:
1. Working voltage: DC12V
2. Quiescent condition: Less than 6mA
3. Working temperature: -40 Degree +80 Degree
4. Receiver sensitivity: more than -105dBm
5. Working frequency: 433mhz
6. Output voltage: DC and AC is optional
7. Output current: Less than 3A
8. Max load current: 10A

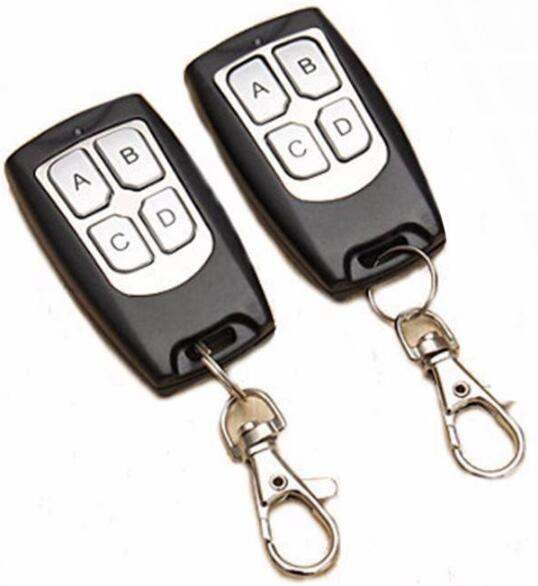

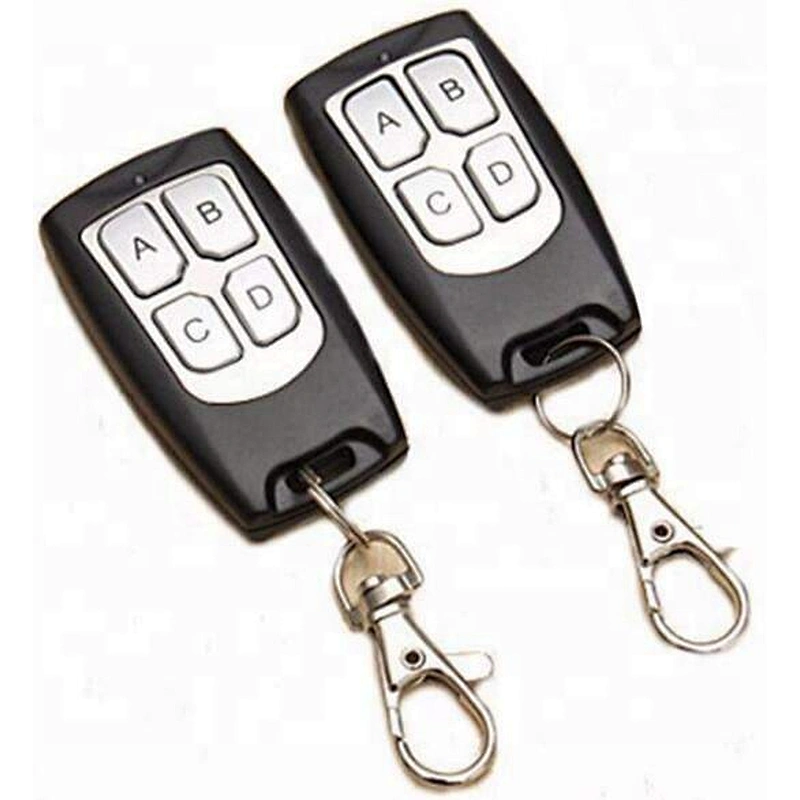

Remote control transmitter:
1. Remote Distance: 200M
2. Operating Voltage: DC 12V
3. Frequency: 433mhz
4. Operating Current: 13 mAh
5. Code Type: Fixed code / Learning code
