- Model Number:1010
- Type:Data Conversion Development Boards and Kits, Drive IC
- Place of Origin:Guangdong, China
- Brand Name:chipskey
- Lead Free Status:Lead free / RoHS Compliant
Product Description

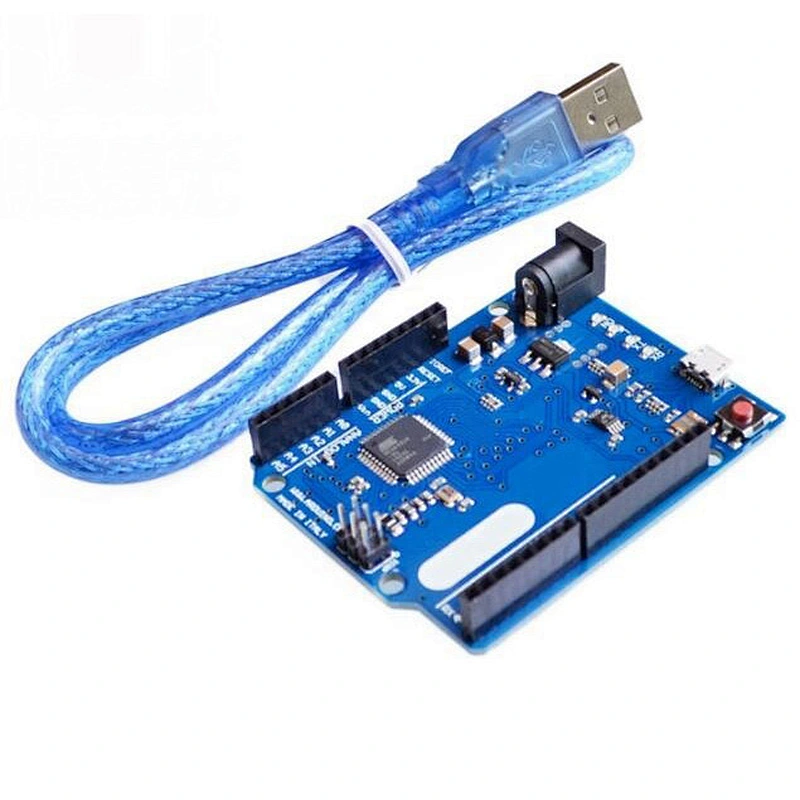

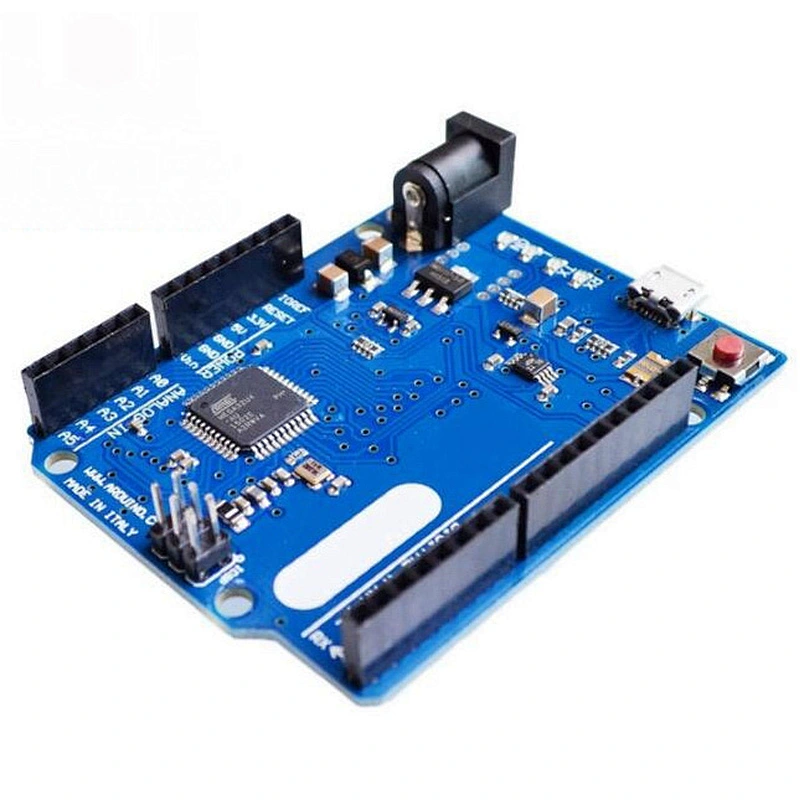

Neutral Without LOGO LEONARDO R3 ATmega32U4 Development Board With USB Cable For Arduinos
Description:
Compared to other versions of the using a separate USB-Serial converter chip, the Leonardo innovatively uses a single-chip
solution. Only with a Atmega32u4 USB communication and control. The Leonardo differs from all preceding boards in that the
ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a
connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for
the behavior of the board. Greatly improve the applications. Leonardo need the new version above IDE1.01.
Specification:
Microcontroller: ATmega32u4
Operating voltage: 5V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 20
PWM channels: 7
Analog input channels: 12
DC current per I / O pin: 40mA
DC current for 3.3V pin: 50mA
Flash memory: 32KB(ATmega32u4) of which 4KB used by bootloader
SRAM: 2.5KB(ATmega32u4)
EEPROM: 1KB(ATmega32u4)
Clock speed: 16MHz
Package included:
1 x compatible Leonardo R3
1 x USB cable
Compared to other versions of the using a separate USB-Serial converter chip, the Leonardo innovatively uses a single-chip
solution. Only with a Atmega32u4 USB communication and control. The Leonardo differs from all preceding boards in that the
ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a
connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for
the behavior of the board. Greatly improve the applications. Leonardo need the new version above IDE1.01.
Specification:
Microcontroller: ATmega32u4
Operating voltage: 5V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 20
PWM channels: 7
Analog input channels: 12
DC current per I / O pin: 40mA
DC current for 3.3V pin: 50mA
Flash memory: 32KB(ATmega32u4) of which 4KB used by bootloader
SRAM: 2.5KB(ATmega32u4)
EEPROM: 1KB(ATmega32u4)
Clock speed: 16MHz
Package included:
1 x compatible Leonardo R3
1 x USB cable
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield sensor module Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules & Modules For Raspberry PI ,Smart Home Products
WareHouse

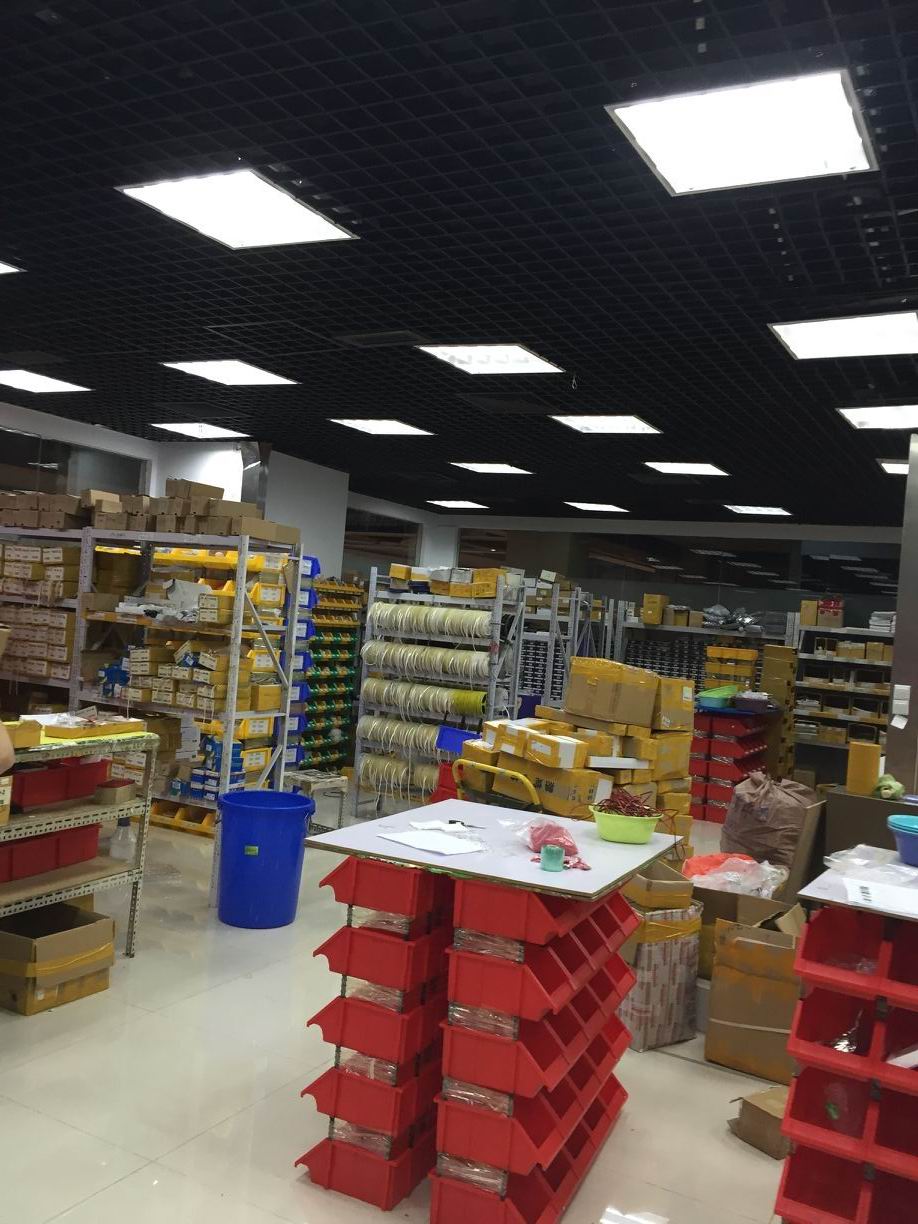

This is our Warehouse ,We Can Make A Fastest Shipment per Day
Certifiactions

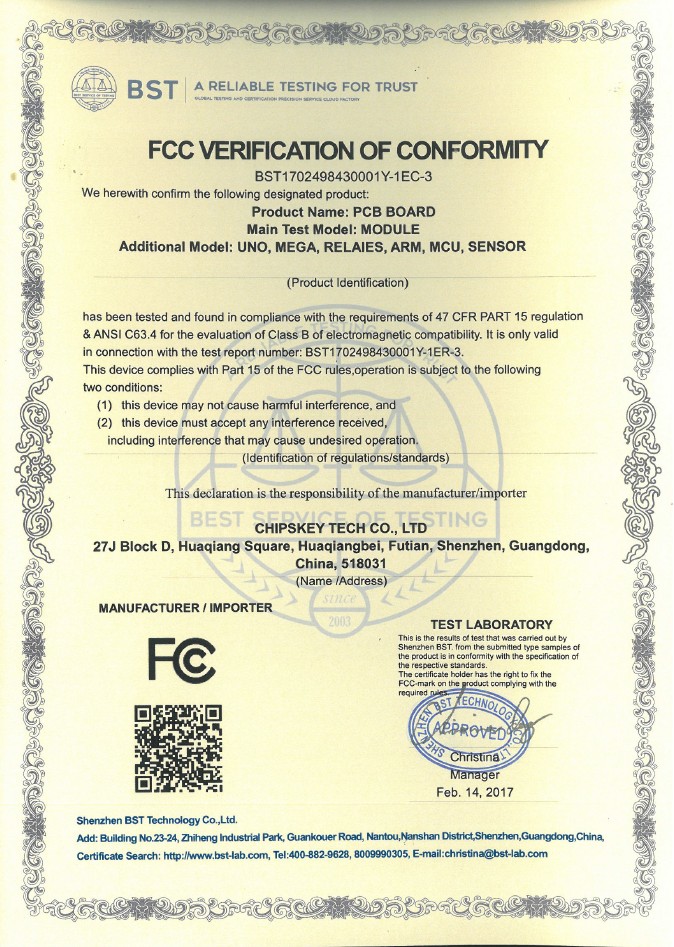

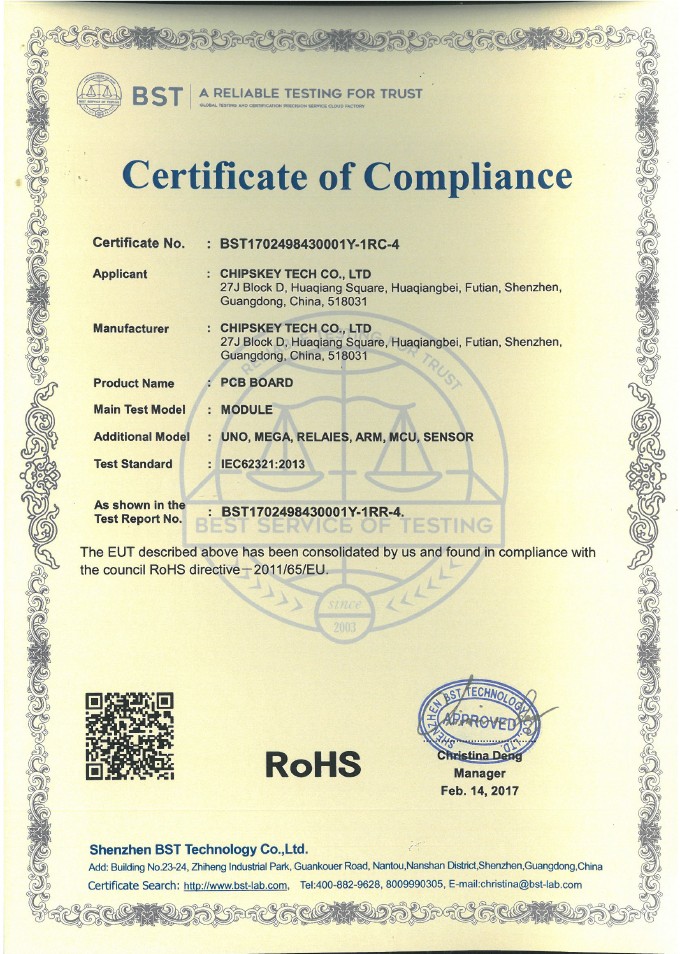

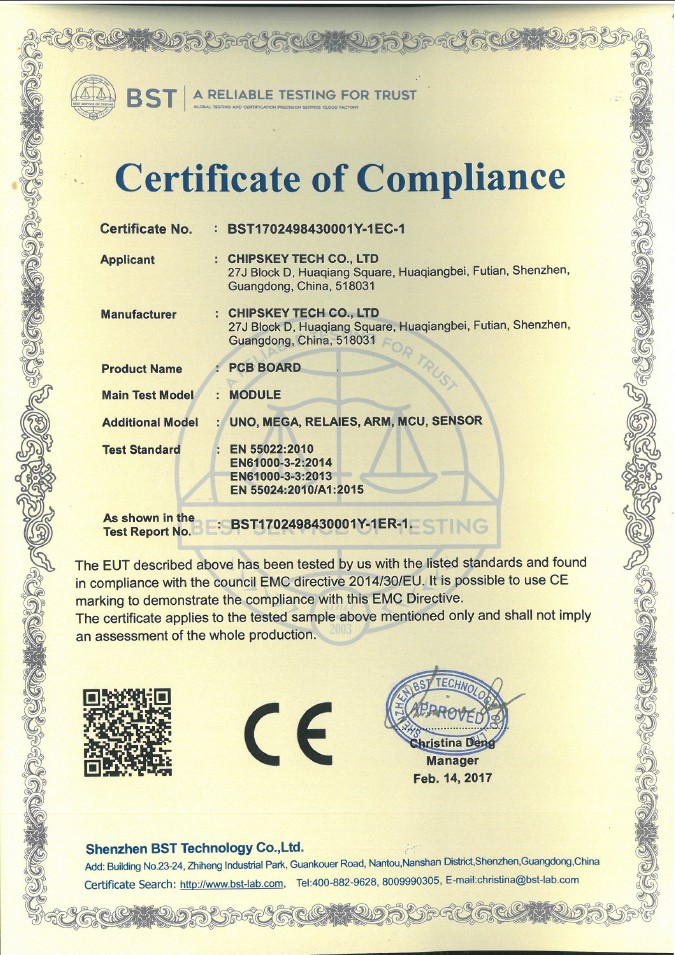

Our Products Have CE FFC ROHS Certifiactions
