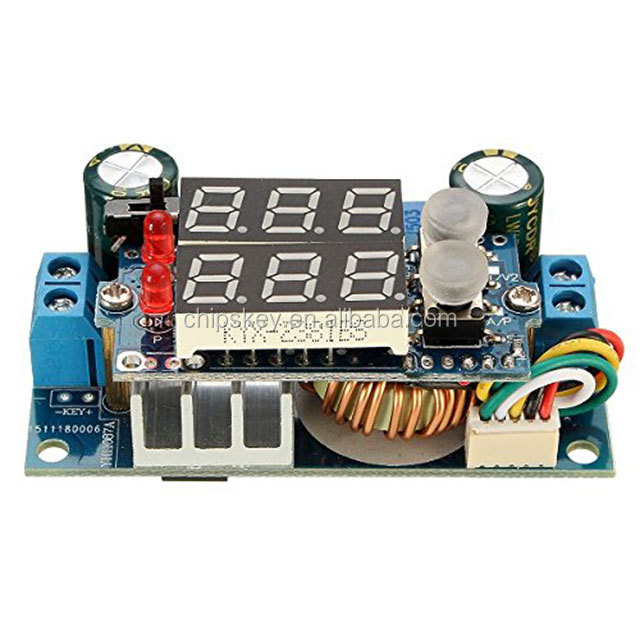

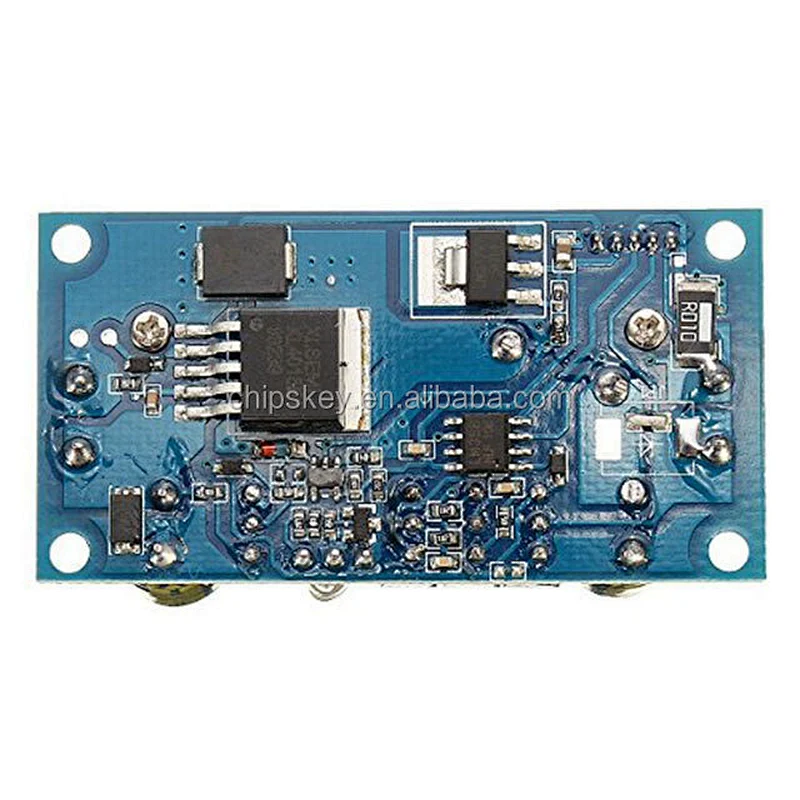

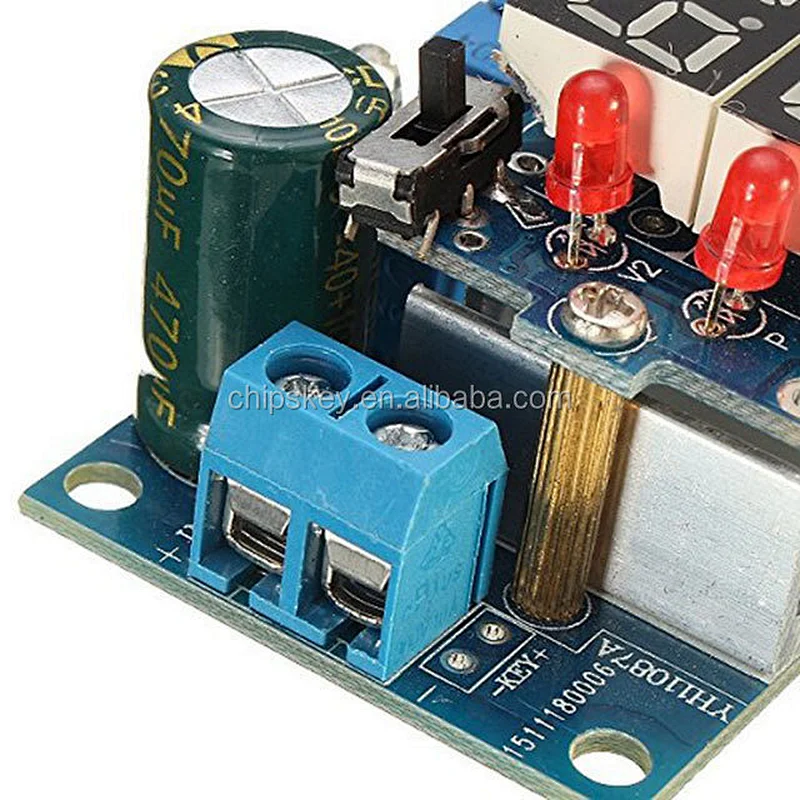

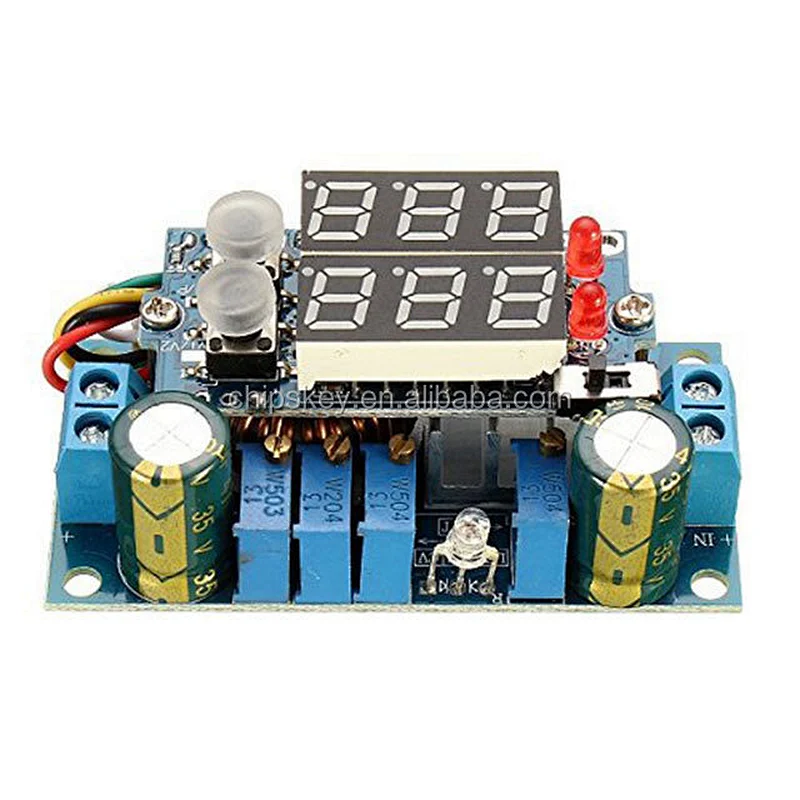

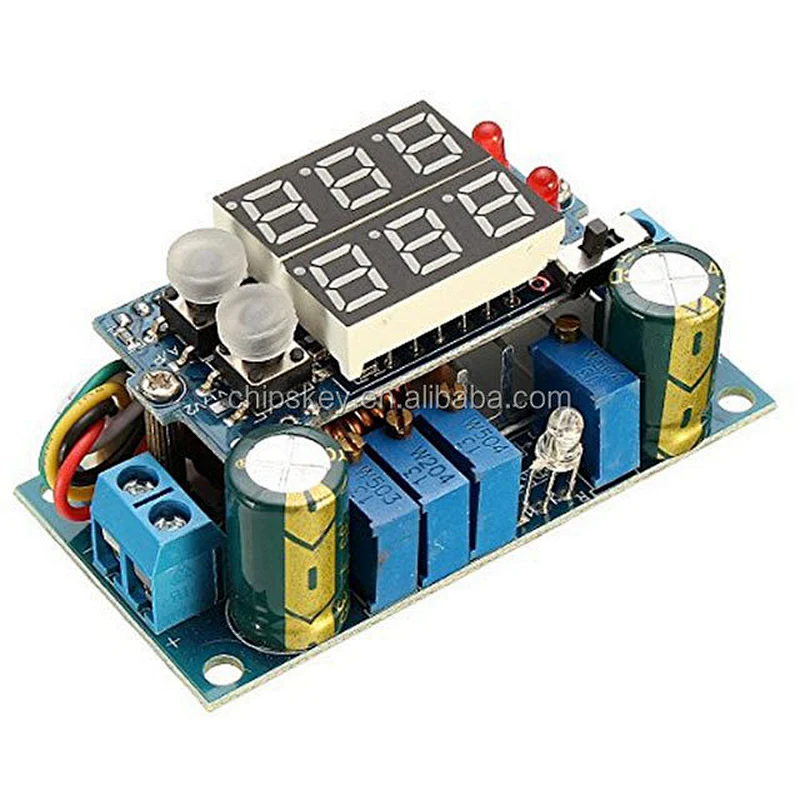

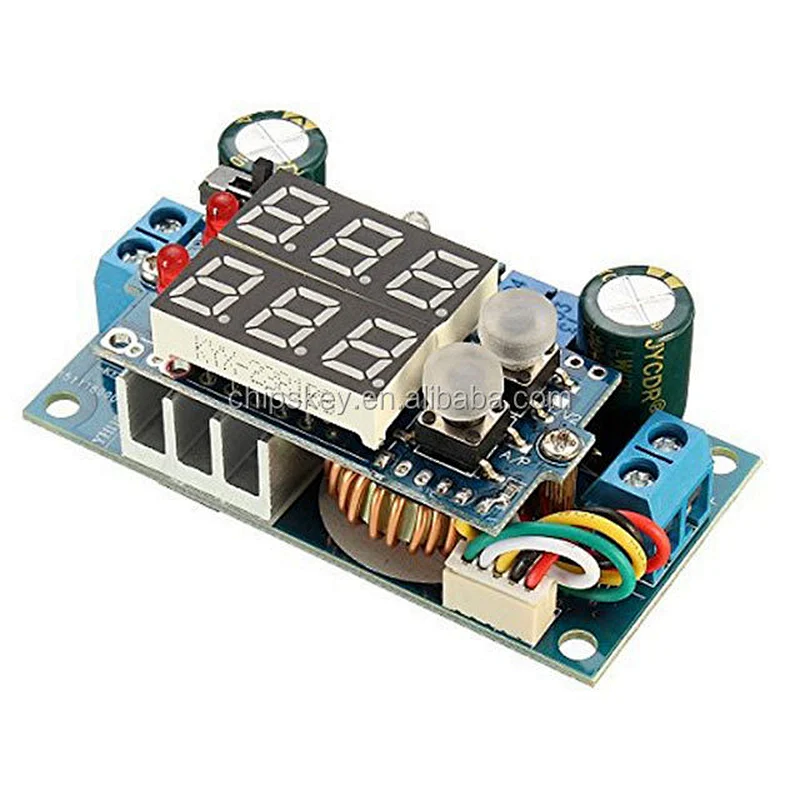

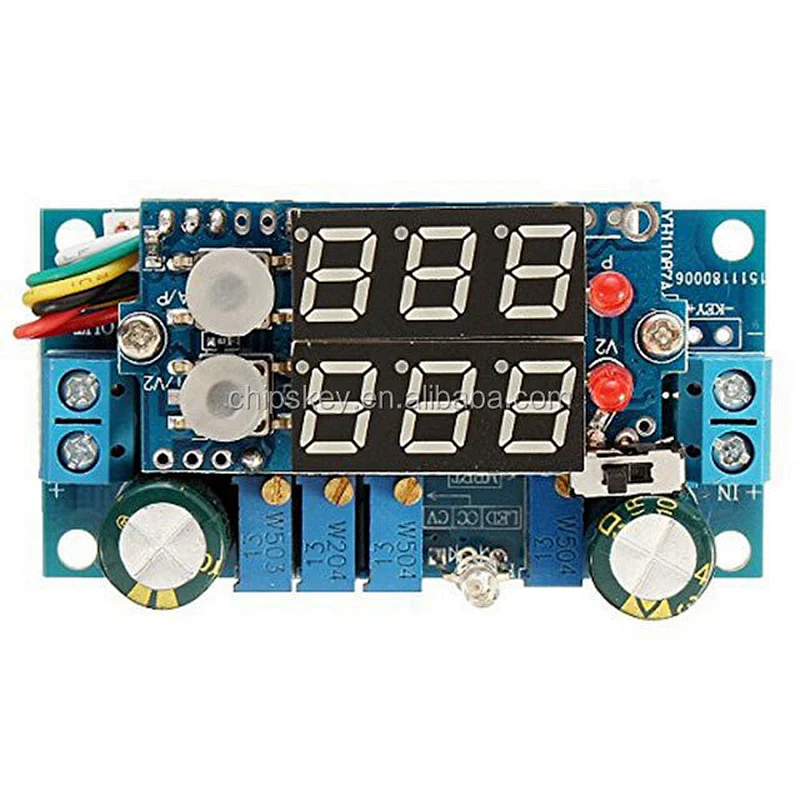

Solar Panel Controller 5A DC-DC Step-down CC/CV Charging Module

• Place of Origin:China
• Brand Name:Chipskey
• Model Number:28047
• Quality:New&Original
• Application:Great for DIY project
• SKU:28047
• Stock:In Stock ,Can Ship out Immedicate

Solar Panel Controller 5A DC-DC Step-down CC/CV Charging Module

Technical details

Product description

Module property: Non-isolated buck module (BUCK)

Input voltage: 6-36V

Output voltage:1.25-32V continuously adjustable (default 5V)

MPPT voltage setting range: 6-36V

Output current range: 0.05-5A (default 3A)

Turn lights output range: 0.01-5A (default 0.3A)

Operating temperature: -40 to + 85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 95% (efficiency is related with input voltate,output voltage,current and voltage difference)

Short circuit protection: Yes

Over temperature protection:Yes (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary, please add a diode)

Output anti-irrigation protection: None, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!

Charge indicator: light red when charging, full of green light. Turn light detection mode for current. In the use of solar panels powered, the sun is very small charge current, lower than the current, the same will be a green light, but this time is not full, please pay attention to distinguish. For  header will more directly see the charging current.

Installation: 3mm screws(4)

Size:603122 mm(L W H)

Note:

The current detection module is the low-end testing, please do not directly connect the input negative with the output negative!
