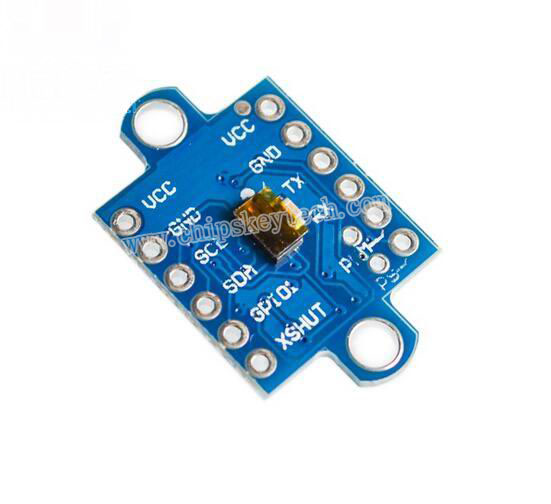

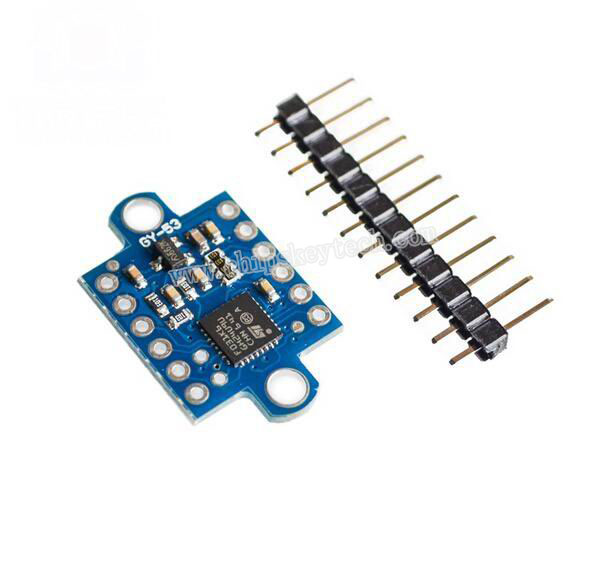

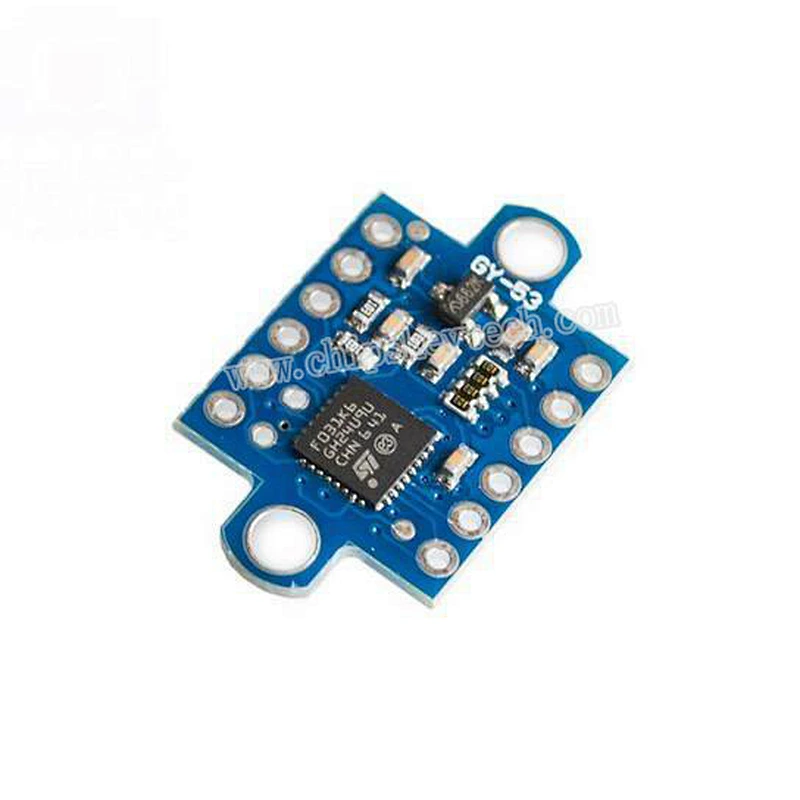

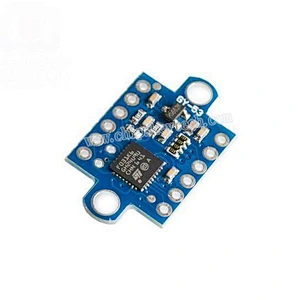

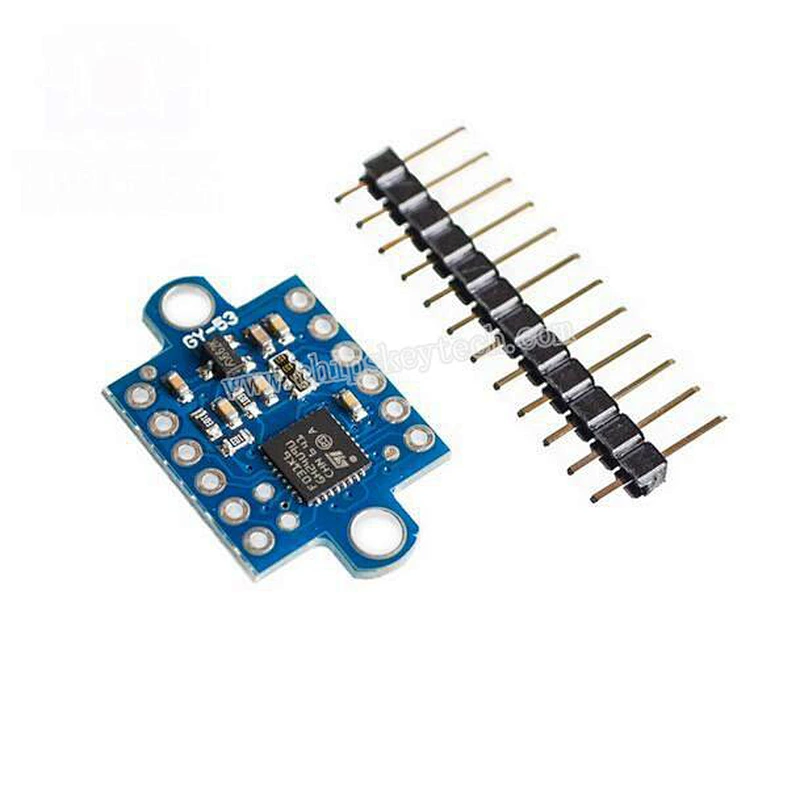

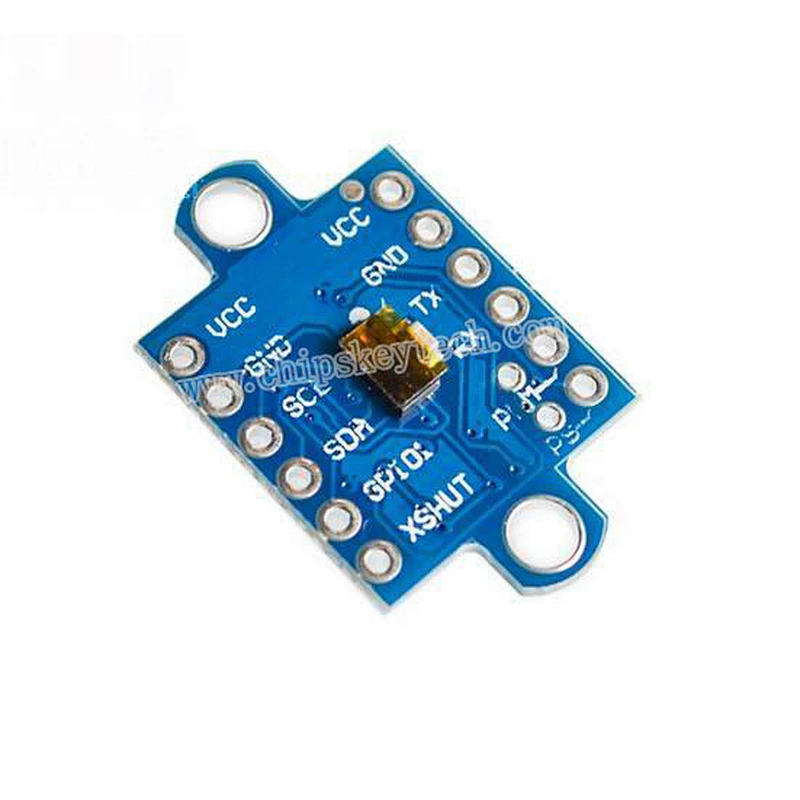

World smallest Time-o f-Flight (ToF) laser ranging sensor GY-530 VL53L0X

• Model Number:29186
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• SKU:29186
• Delivery Time:24hours
• Quality:New&Original
• Application:Great for DIY project

World smallest Time-o f-Flight (ToF) laser ranging sensor GY-530 VL53L0X

Use the chip: VL53L0X + STM32

Power supply: 3-5v (internal low voltage regulator)

Range: 2 m (dark, long distance mode)

Size: 25mm * 15.6mm (including mounting holes)

Communication: serial output, PWM output, the chip itself IIC output.

Provide serial port with pwm read data code: stm32, arduinos, 51 single chip.

Provide PC display distance software, direct usb switch ttl module connection, computer view data.

The default does not weld pin

Note that because the infrared will be affected by external light, in the light will affect the measurement of the maximum range, will not affect the measurement accuracy.

The default configuration: serial baud rate 9600, automatic output, high-precision mode.
