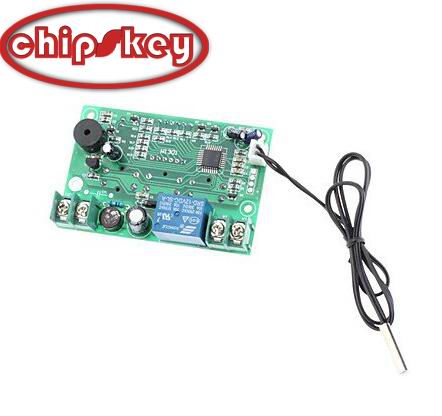

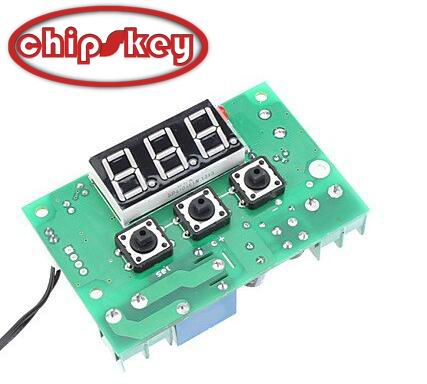

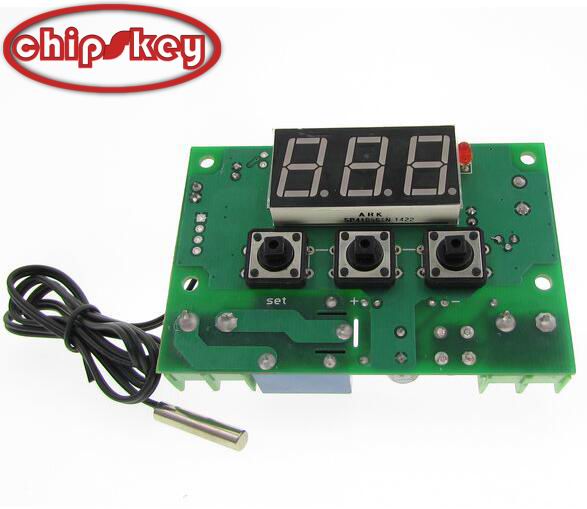

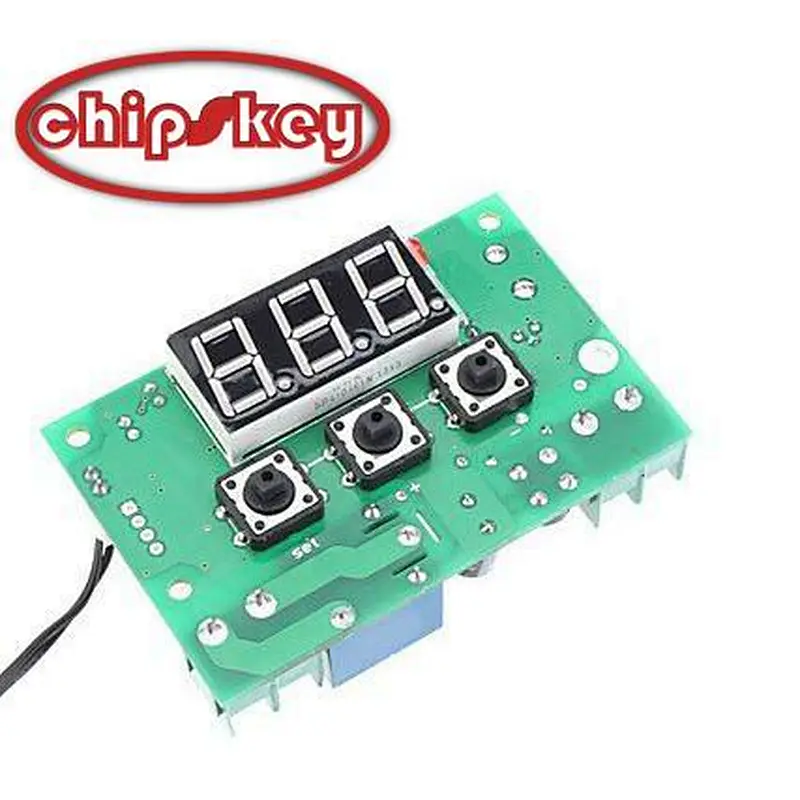

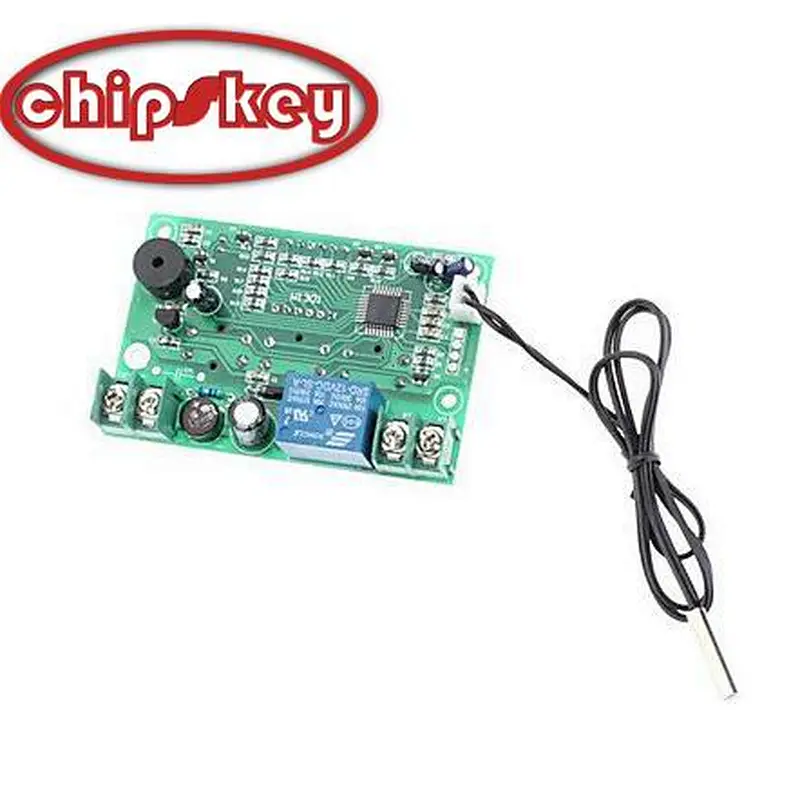

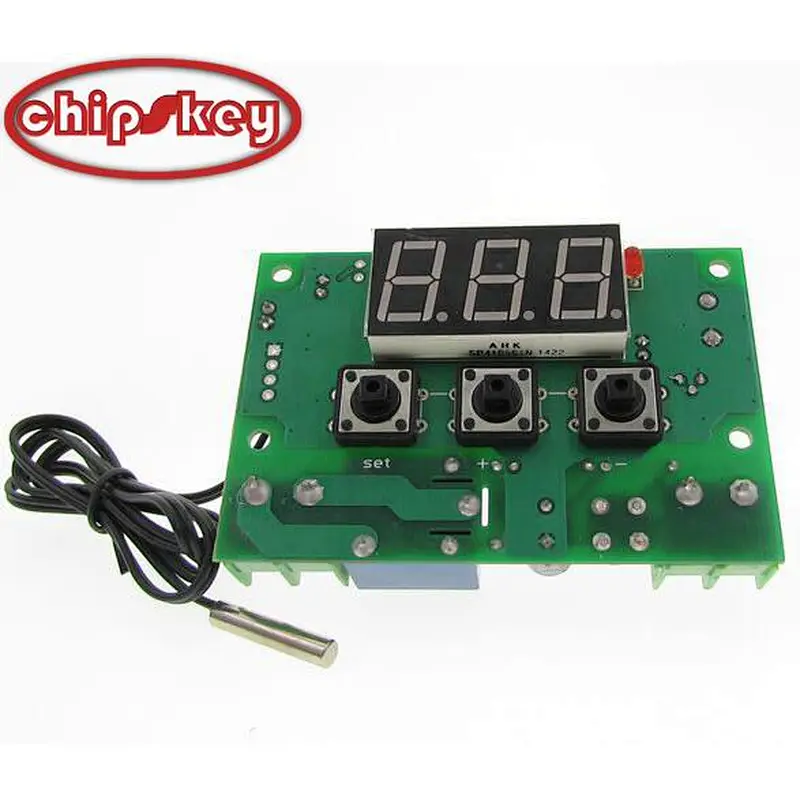

XH-W1301 Temperature controller Digital intelligent temperature controller Input 12V or 220V

• Model Number:30099
• Type:Other
• Place of Origin:China
• SKU:30099
• Brand:chipskey

XH-W1301 Temperature controller Digital intelligent temperature controller Input 12V or 220V

Temperature control range: -50 ~ 110 ℃
Resolution: -9.9 ~ 99.9 at 0.1 ℃ Other temperature 1 ℃
Temperature measurement accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Back to the poor accuracy: 0.1 ℃
Refresh rate: 0.5 S
Input power: DC / AC 12V
Measurement Input: NTC (10K 0.5%) Waterproof Sensor
Output: 1 relay output, capacity = 10A
Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%
Size: 78 * 51mm (mounting hole M3 diagonal 75mm)
Machine power consumption: quiescent current: ≤ 35MA pull-in current: ≤ 65MA
