- Model Number:11B004
- Type:Power Management Development Boards and Kits, Drive IC
- Place of Origin:Guangdong, China
- Brand Name:chipskey
- SKU:11B004
Product Description

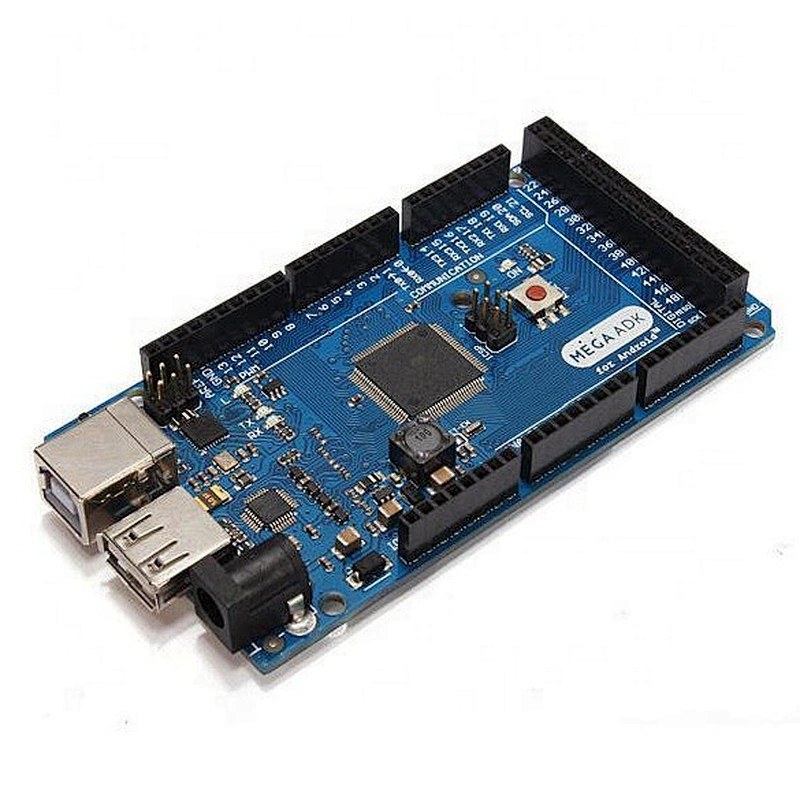

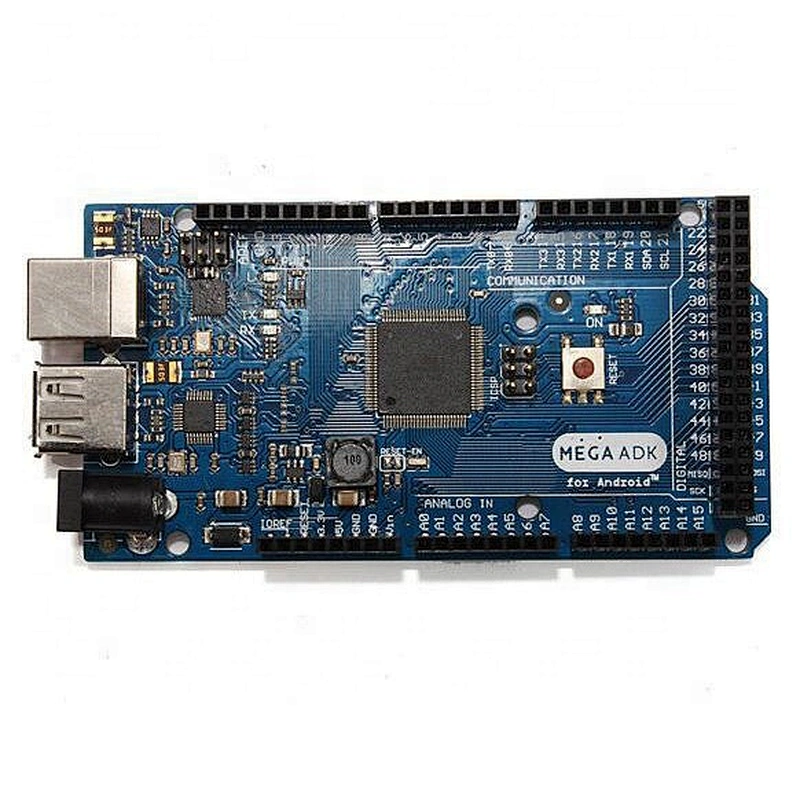

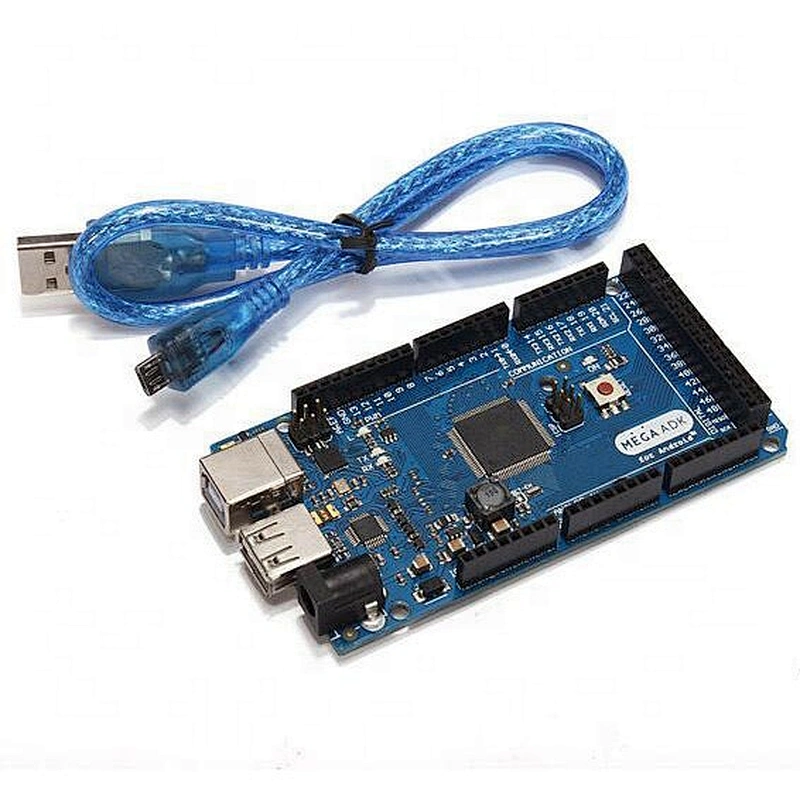

Neutral Without LOGO Mega ADK R3 ATmega2560 Module ADK With USB Cable For Arduinos
Description:
This compatible Mega ADK is based on the Mega 2560. Similar to the Mega 2560 and , it features an ATmega8U2 programmed as a
USB-to-serial converter. Mega ADK can be connected to a large number of sensors and application modules. The Mega ADK is
compatible with Google ADK. Mega ADK can use Google's ADK to develop, and run on Android 2.3.4 or Android 3.1.
The Mega ADK is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android based phones,
based on the MAX3421e IC. Mega ADK has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4
UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
Specification:
Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 54(of which 15 provide PWM output)
Analog input pins: 16
DC current per I / O pin: 40mA
DC current for 3.3V pin: 50mA
Flash memory: 256KB of which 8KB used by bootloader
SRAM: 8KB
EEPROM: 4KB
Clock speed: 16MHz
Package included:
1 x Mega ADK R3
This compatible Mega ADK is based on the Mega 2560. Similar to the Mega 2560 and , it features an ATmega8U2 programmed as a
USB-to-serial converter. Mega ADK can be connected to a large number of sensors and application modules. The Mega ADK is
compatible with Google ADK. Mega ADK can use Google's ADK to develop, and run on Android 2.3.4 or Android 3.1.
The Mega ADK is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android based phones,
based on the MAX3421e IC. Mega ADK has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4
UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
Specification:
Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 20V
Digital I / O pins: 54(of which 15 provide PWM output)
Analog input pins: 16
DC current per I / O pin: 40mA
DC current for 3.3V pin: 50mA
Flash memory: 256KB of which 8KB used by bootloader
SRAM: 8KB
EEPROM: 4KB
Clock speed: 16MHz
Package included:
1 x Mega ADK R3
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduino, sensor module for arduino, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduino & Modules For Raspberry PI ,Smart Home Products
WareHouse

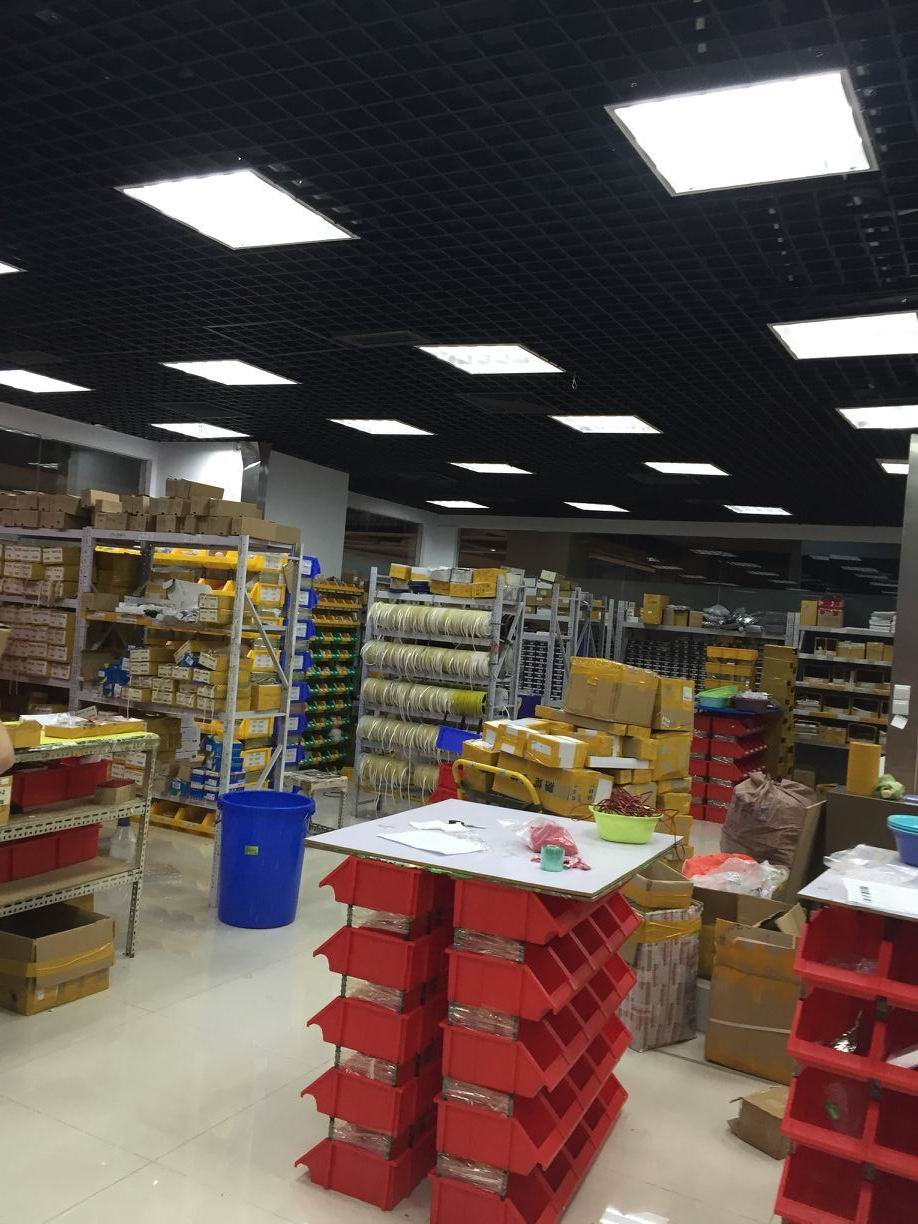

This is our Warehouse ,We Can Make A Fastest Shipment per Day
Certifiactions

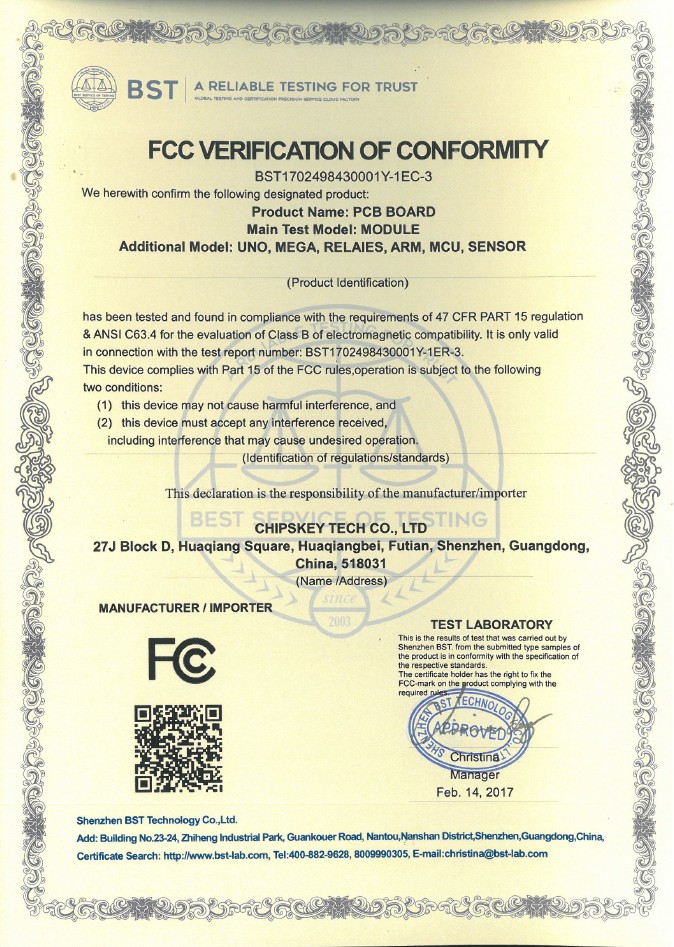

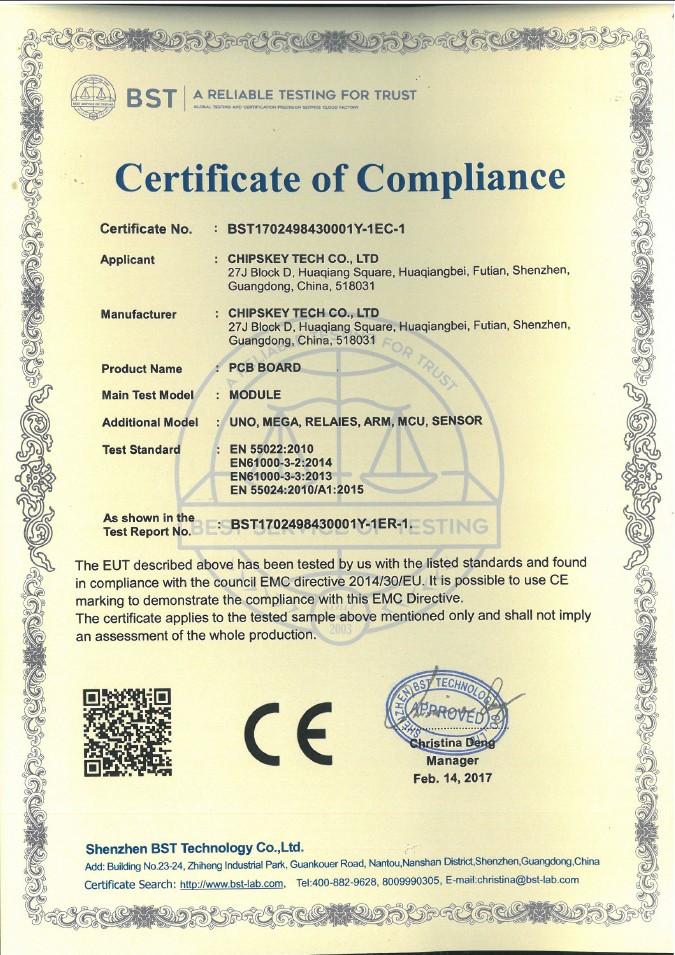

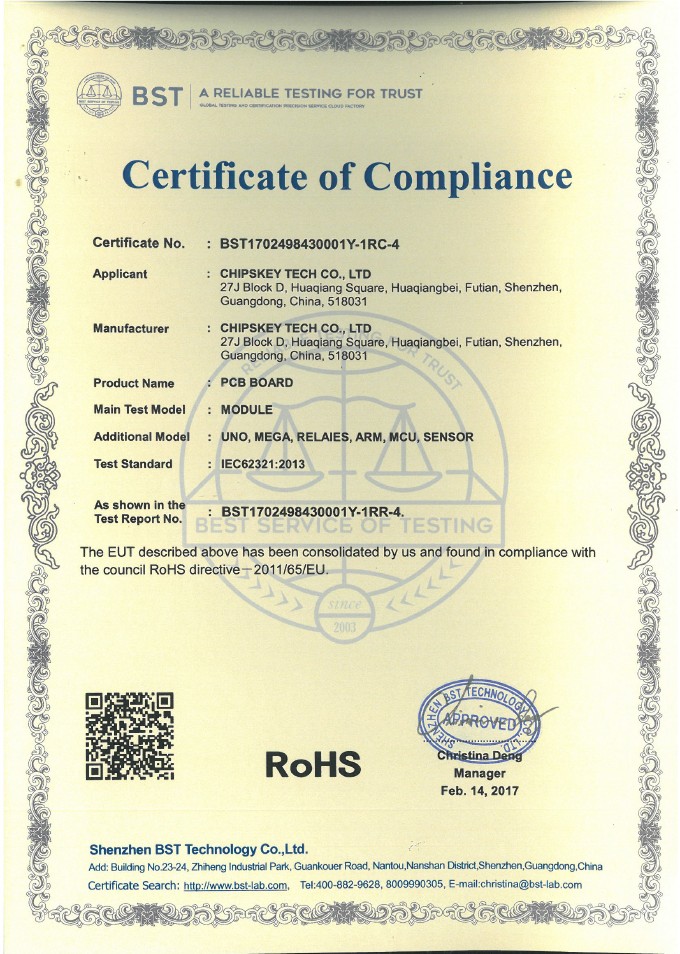

Our Products Have CE FFC ROHS Certifiactions
