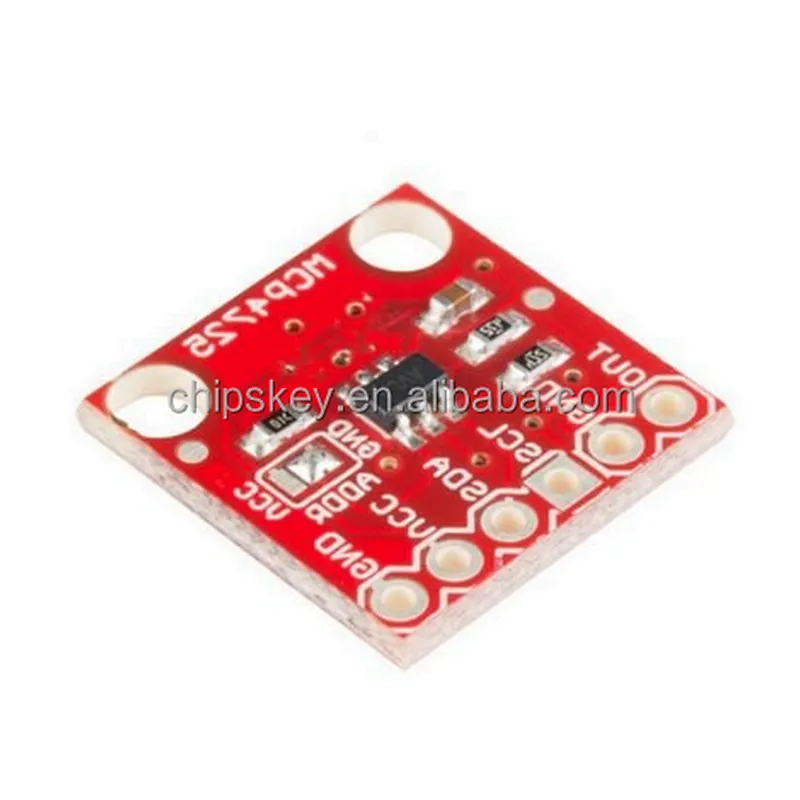

I2C MCP4725 DAC Breakout Development Board 12Bit Resolution I2C DAC Breakout

• Model Number:15F116
• Type:Other
• Place of Origin:China
• Weight:12KG
• Size:660*270*110mm
• SKU:15f116

I2C DAC Breakout Development Board 12Bit Resolution I2C DAC Breakout

Description: You’ve always wanted to output analog voltages from a microcontroller, the  is the DAC that will let you do it! ThIis  is an I²C controlled Digital-to-Analog converter (DAC). A DAC allows you to send analog signal, such as a sine wave, from a digital source, such as the I²C interface on the Arduinos microcontroller. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

This version of the Breakout fixes a few issues with the board including the IC footprint, the I²C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks. This board breaks out each pin you will need to access and use the  including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I²C pinout. Additionally, if you are looking to have more than one  on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.

Features:

• 12-bit resolution
• I²C Interface (Standard, Fast, and High-Speed supported)
• Small package
• 2.7V to 5.5V supply
• Internal EEPROM to store settings
