ISD1700 SERIES voice recording module, including chips, ISD1760 module

• Model Number:3093
• Type:Audio Module
• Place of Origin:China
• Part number:3093
• Brand:chipskey

 ISD1700 SERIES voice recording module, including chips, ISD1760 module

Product description

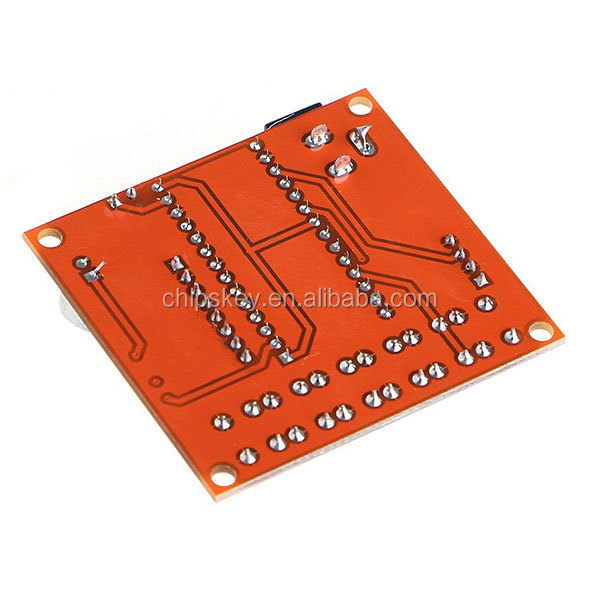

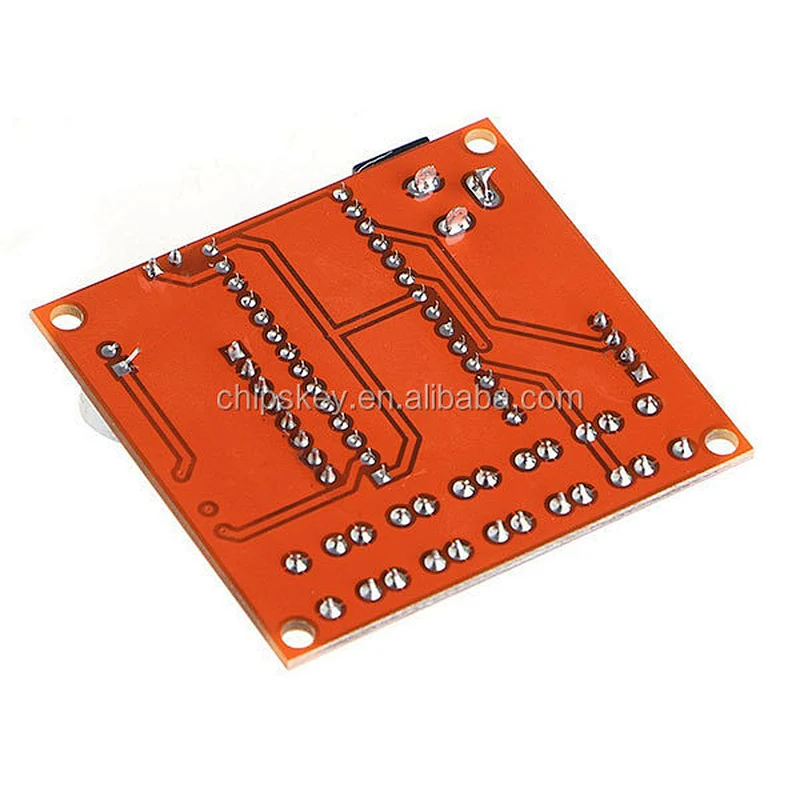

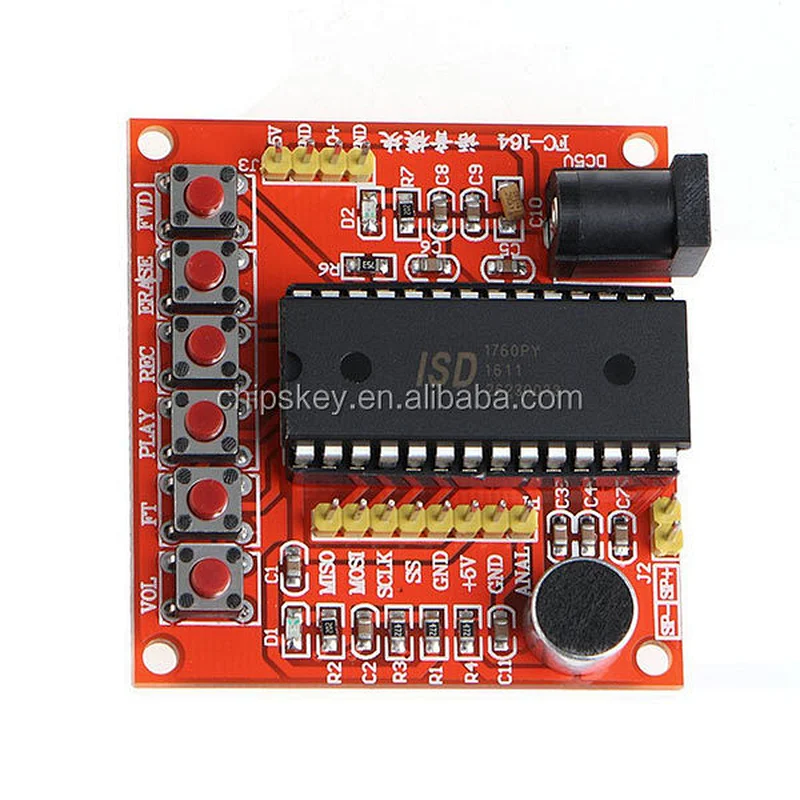

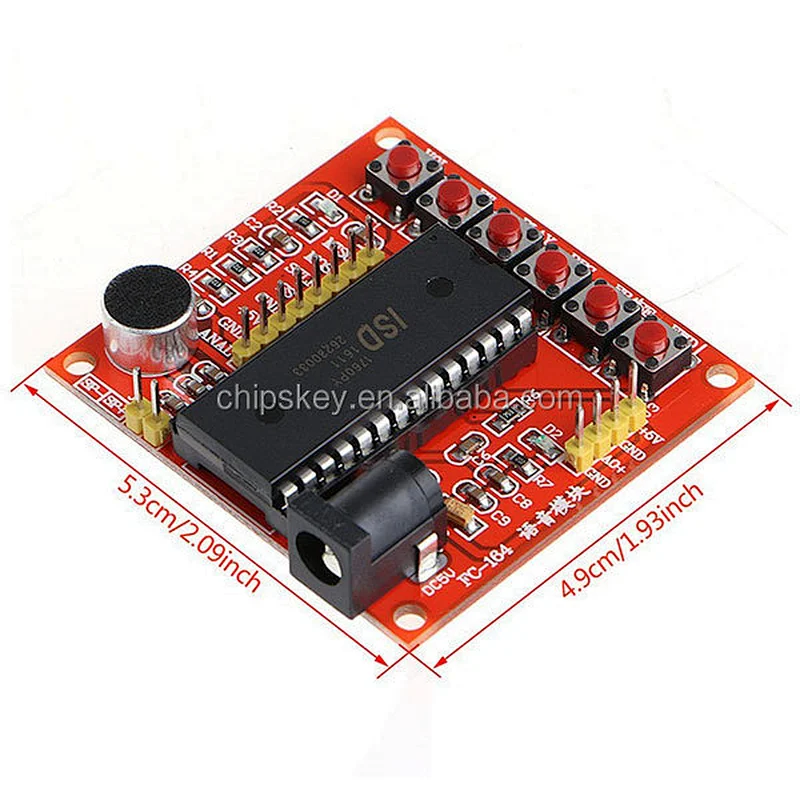

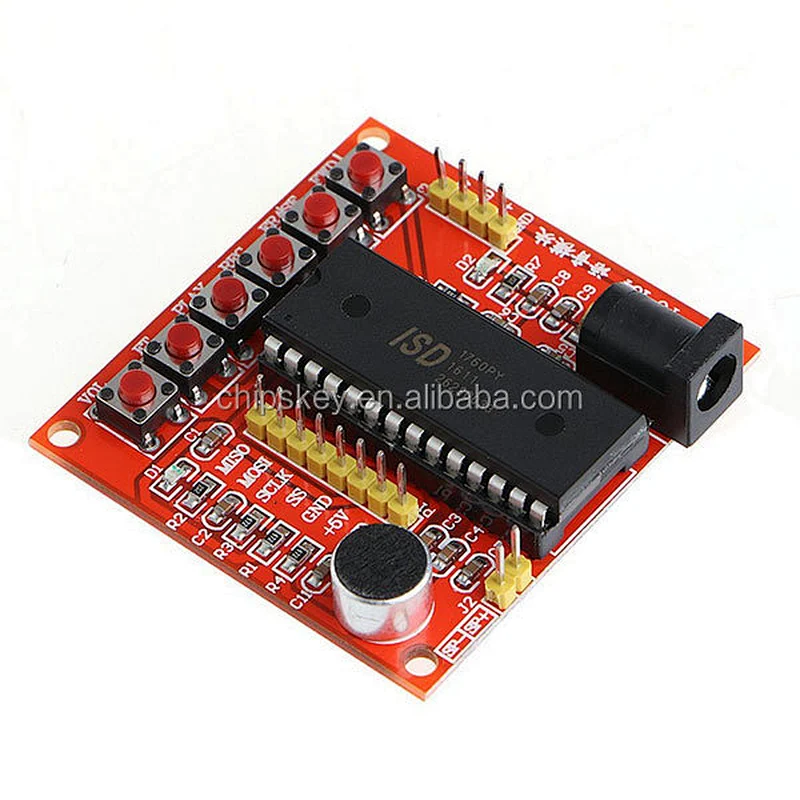

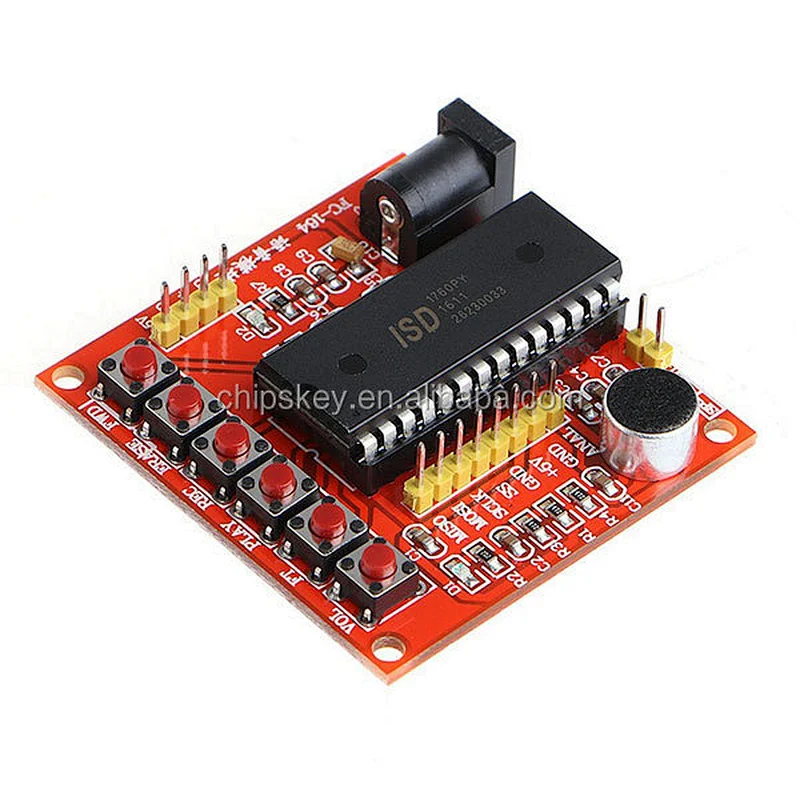

ISD1700 voice module introductionISD1700 voice module is a simple and practical circuit board that is designed to quickly become familiar with and master the ISD1700 series chip. It is suitable for ISD1700 full range of chips, with simple operation, complete functions, etc.. ISD1700 series recording chip is a highly integrated, high performance chip. It can be multi segment recording, sampling rate can be adjusted between 4K to 12K, the power supply range can be between 2.4V to 5.5V. ISD1700 there are new recording tips, when there is a new recording, LED back every few seconds to prompt the user to prompt a new recording. In addition, there are 4 kinds of sound effects to prompt the user's operating results, such as the beginning of the recording, stop recording, erase, the next song and all erased, etc.. Recording data stored in the chip FLASH, without any compression, so there is a better sound quality and power down storage. The chip has two independent voice signal input channels, the microphone input and analog signal input. In the independent button mode, when a functional operation is completed, the chip will automatically enter power down mode to reduce power consumption. In SPI mode, the user can be more functional on the chip operation. If the recording of arbitrary memory address, the analog channel configuration register (Analog PathConfiguration register, APC) for reading and writing etc.. Two, module description1 dimensions: 5.2CM*5.5CM;2 power supply: 5V;3 recording time: 6K 75 seconds, 8K 60 seconds;4 chip operating frequency 6KHZ and 8KHZ can be selected;5 with power indicator light, chip indicator light;6 operation is simple, do not need a single chip microcomputer or other modules can be directly work;7 chip control pin has been extracted to facilitate the control of the connection
