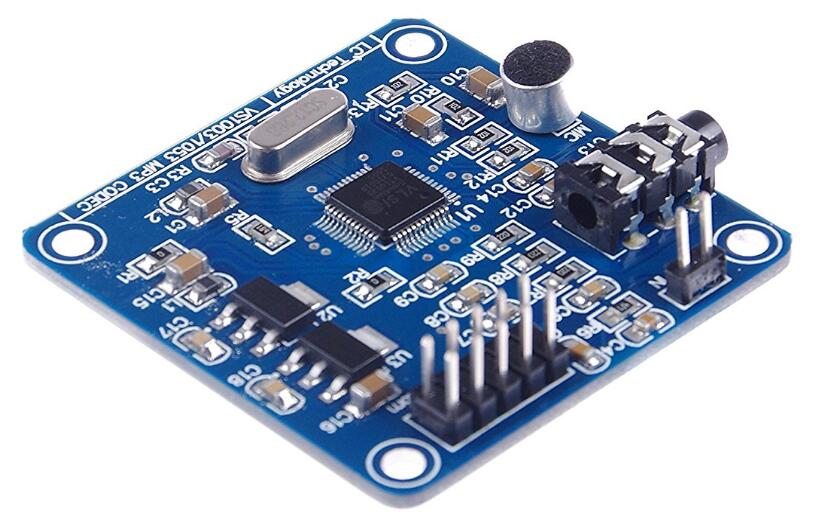

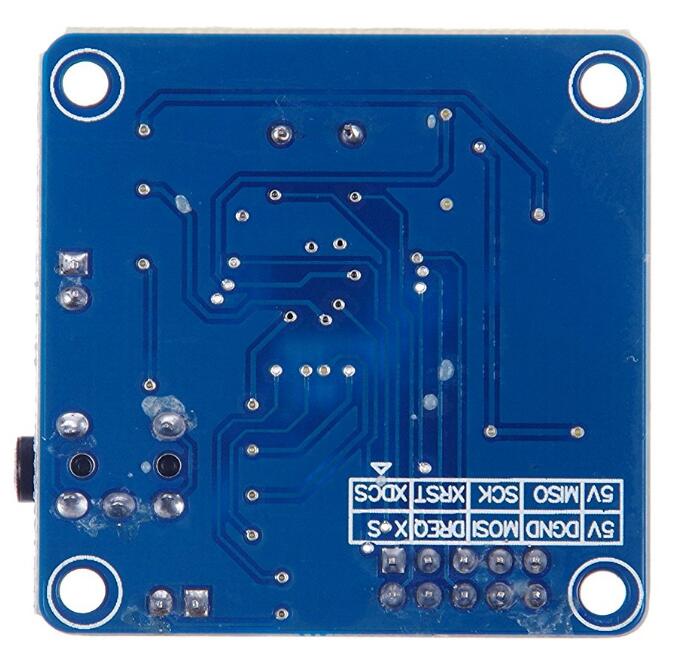

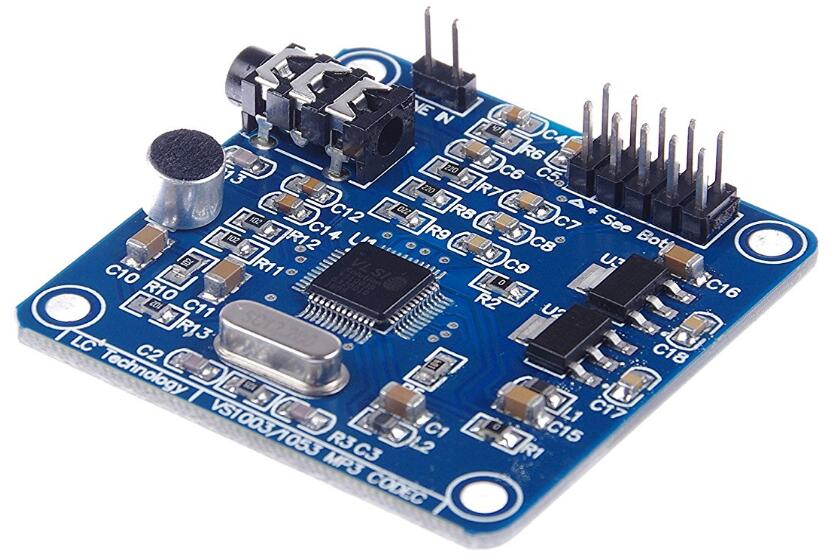

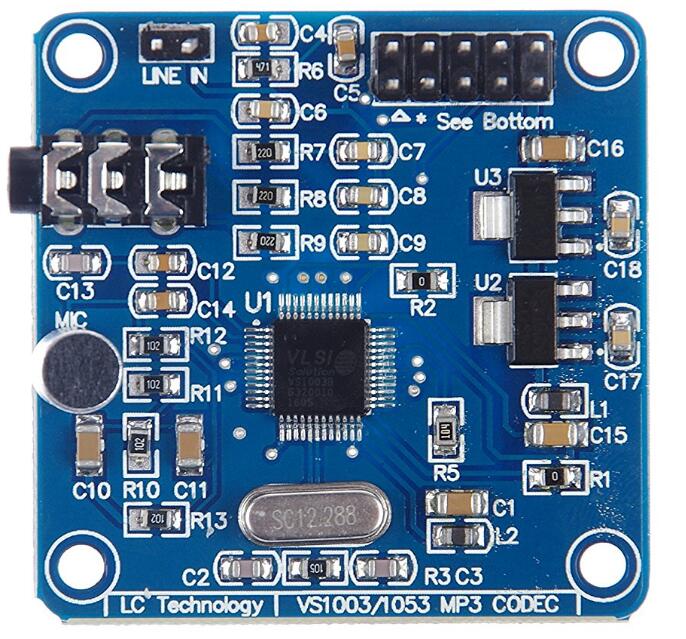

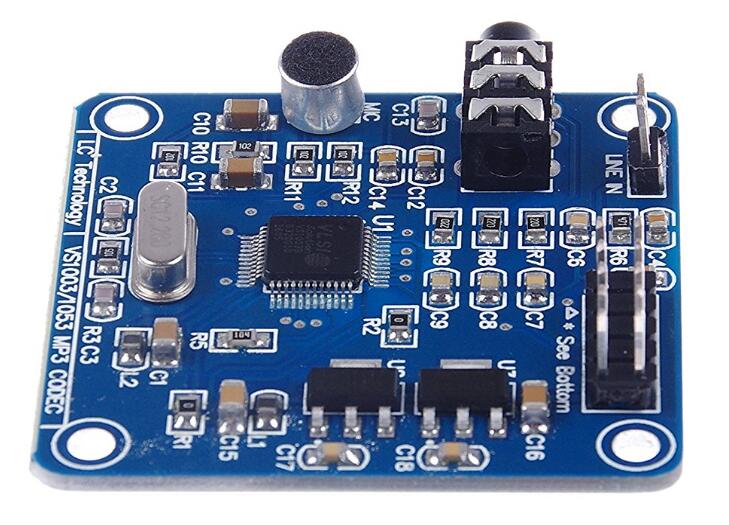

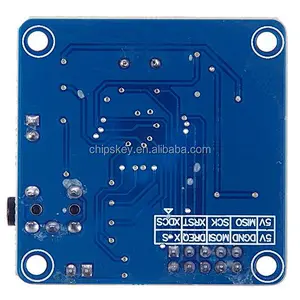

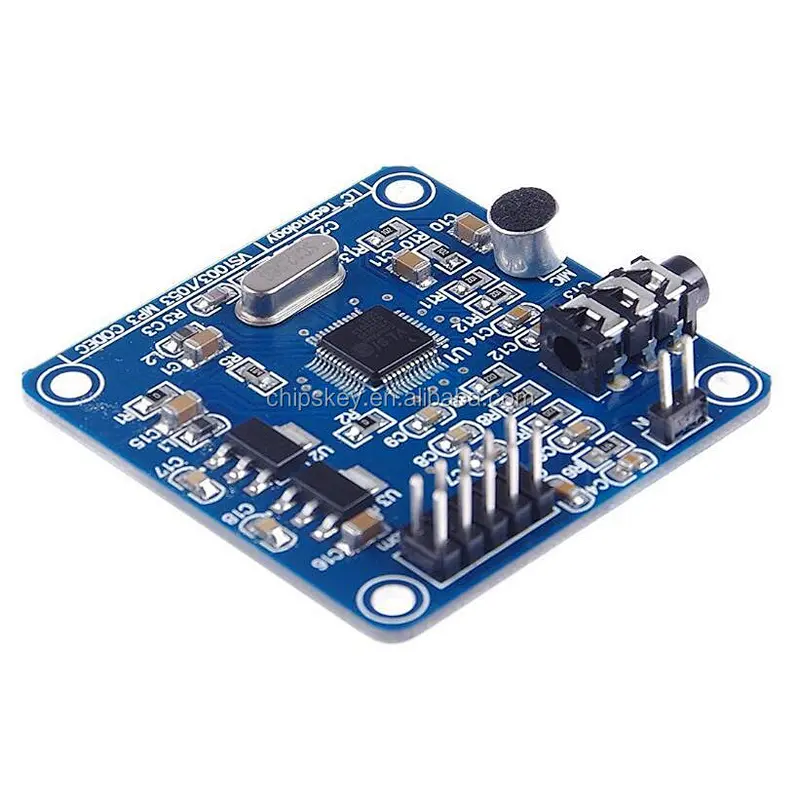

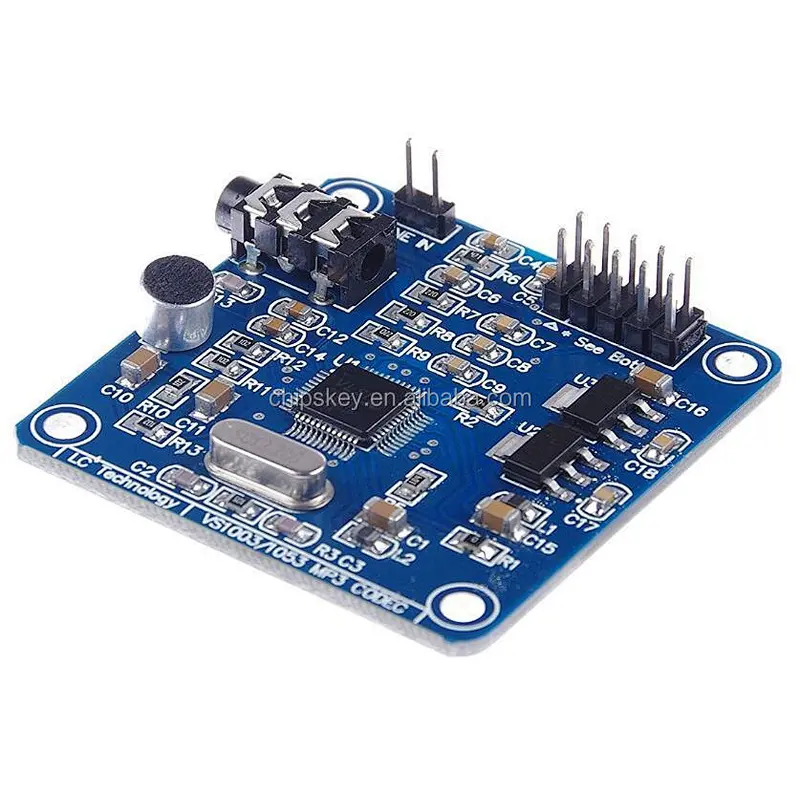

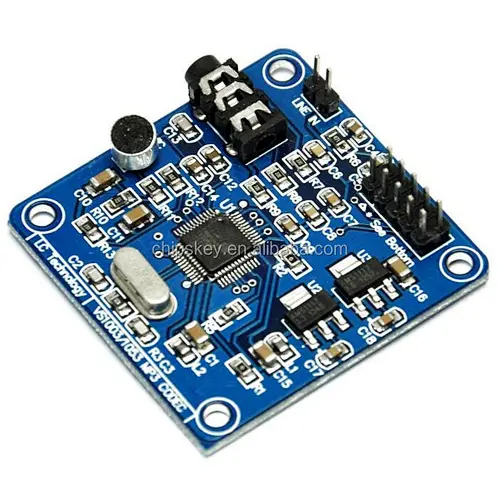

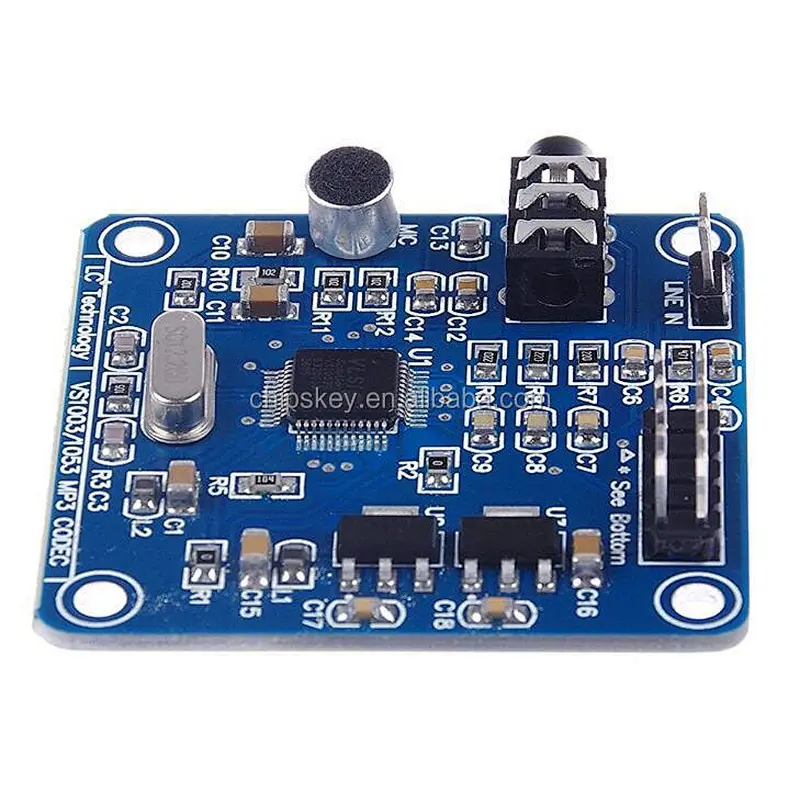

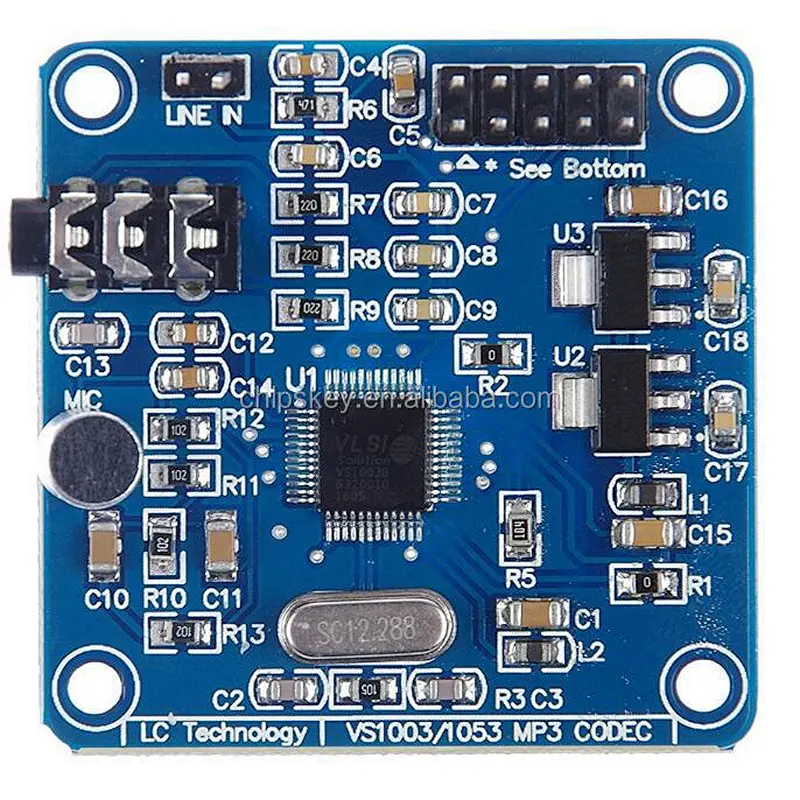

VS1003 MP3 module; onboard microphone

• Model Number:2065
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Part number:2065
• Brand:Chipskey
• Category:Module

VS1003 MP3 module; onboard microphone

Product description
VS1003 supports audio decoding formats: MP3, MP3 + V, WMA, WAV, MIDI, SP-MIDI.
Separate analog, digital and IO power supplies; serial data and control interface (SPI).
1 headphone and audio output interface with internal phase-locked loop clock multiplier; high-quality stereo digital-to-analog converter (DAC); 16-bit on-chip analog-to-digital converter (ADC); high quality stereo ear (30 euro).
1 microphone for recording, support for recording Encoding format: IMA ADPCM (mono).
1 line_in input interface, supports two input modes; support MP3 and WAV stream.
Separate analog, digital and IO power supplies with power indicator.
Onboard 3.3V and 2.5V LDO chip AMS-1117, the maximum to provide 800mA current.
Single power supply: + 5VDC, capacitor filter.
12.288Mhz crystal.
