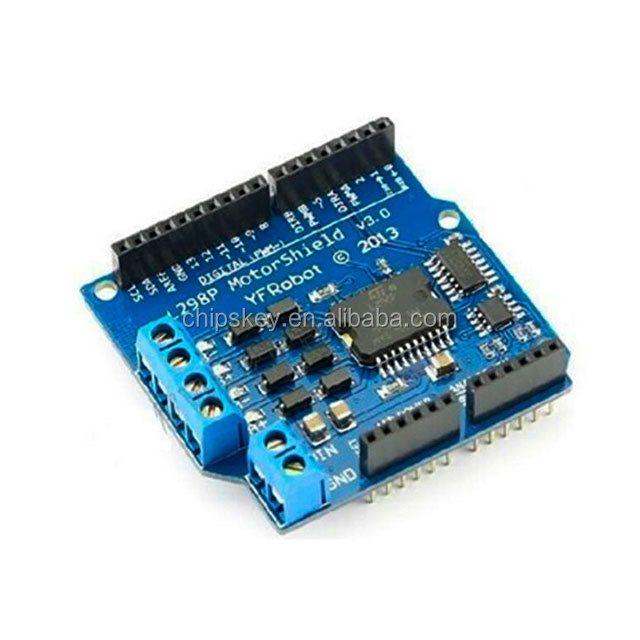

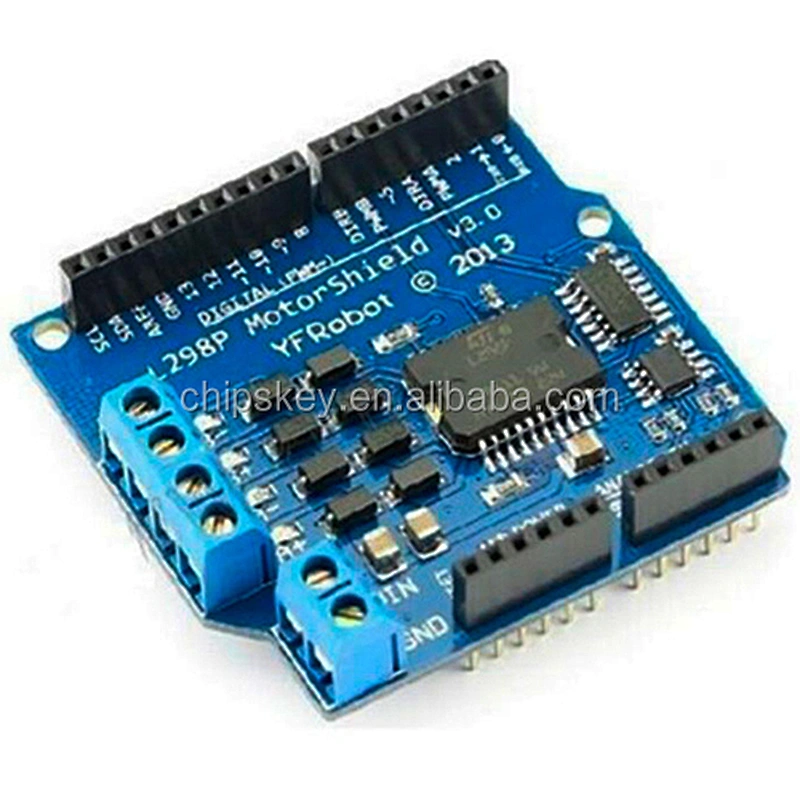

L298P Motor Driver Shield for & Mega Leonardo

• Model Number:13D132
• Type:Embedded System Development Boards and Kits
• Place of Origin:Guangdong, China
• Brand Name:chipskey
• motor drive voltage:internal external input 3-35V input: 6-12V
• logical end consumer current:<30MA
• drive current:2A
• drive peak curren:4A
• Maximum power:25W
• Working temperature:-25 ℃ -130 ℃

  L298P Motor Driver Shield for & Mega  Leonardo

The Motor Shield is based on the L298 , which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features. Operating Voltage 5V to 12V Motor controller L298P, Drives 2 DC motors or 1 stepper motor Max current 2A per channel or 4A max (with external power supply) Current sensing 1.65V/A Free running stop and brake function Click me to konw more Package Included: 1PCS*L298P Shield R3 DC Motor Driver Module 2A H-Bridge 2 way For Arduinos 2560 NW
