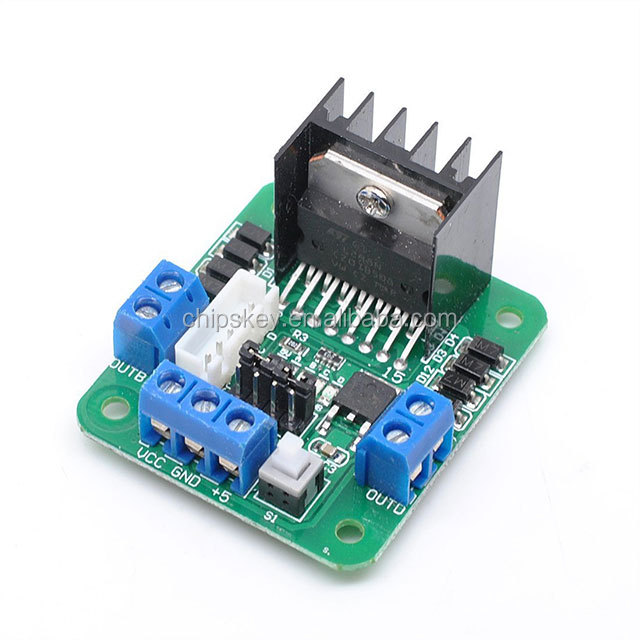

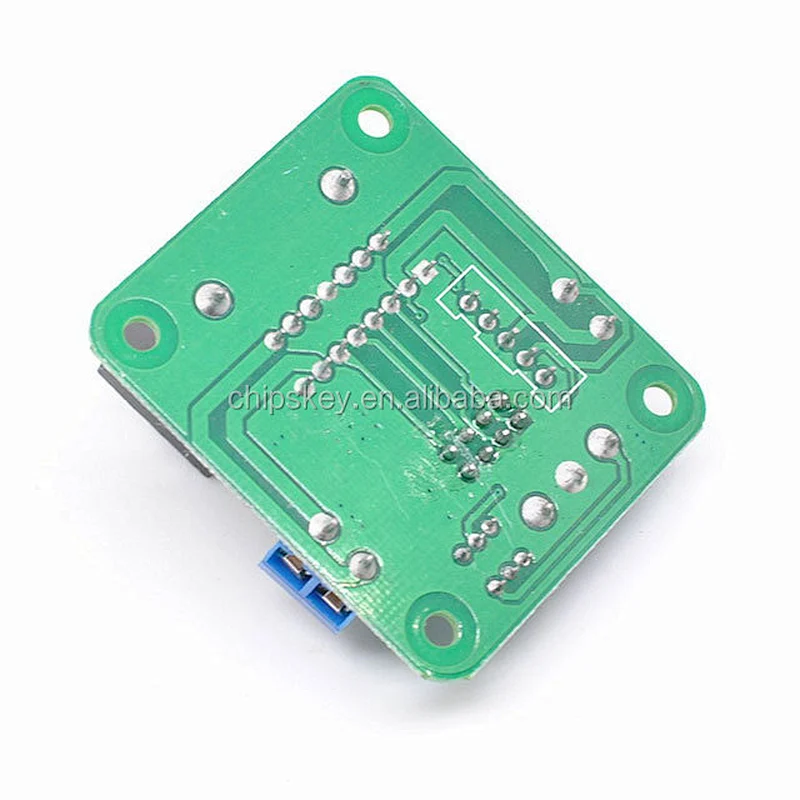

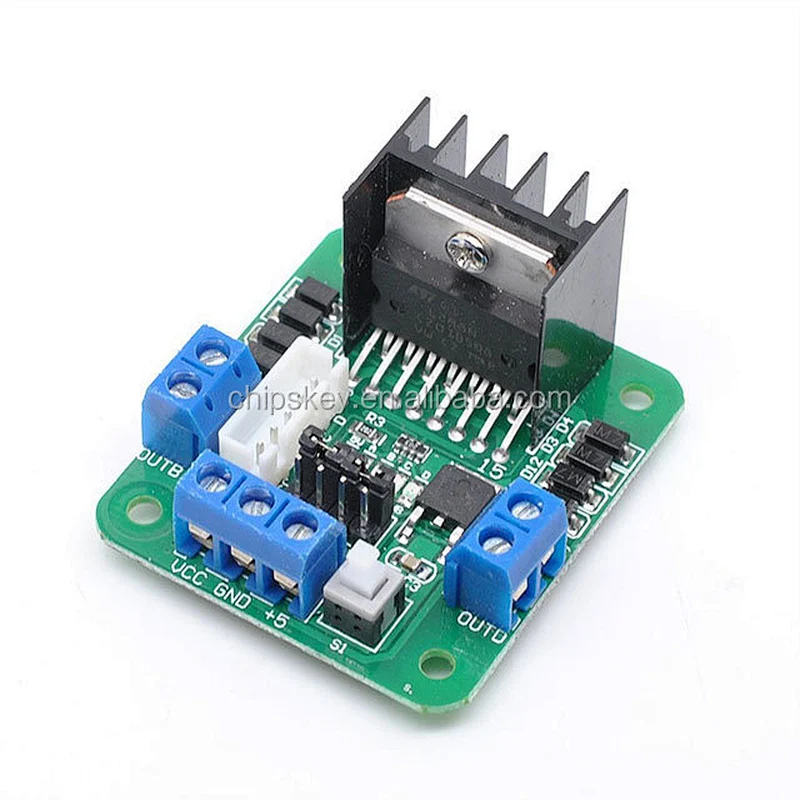

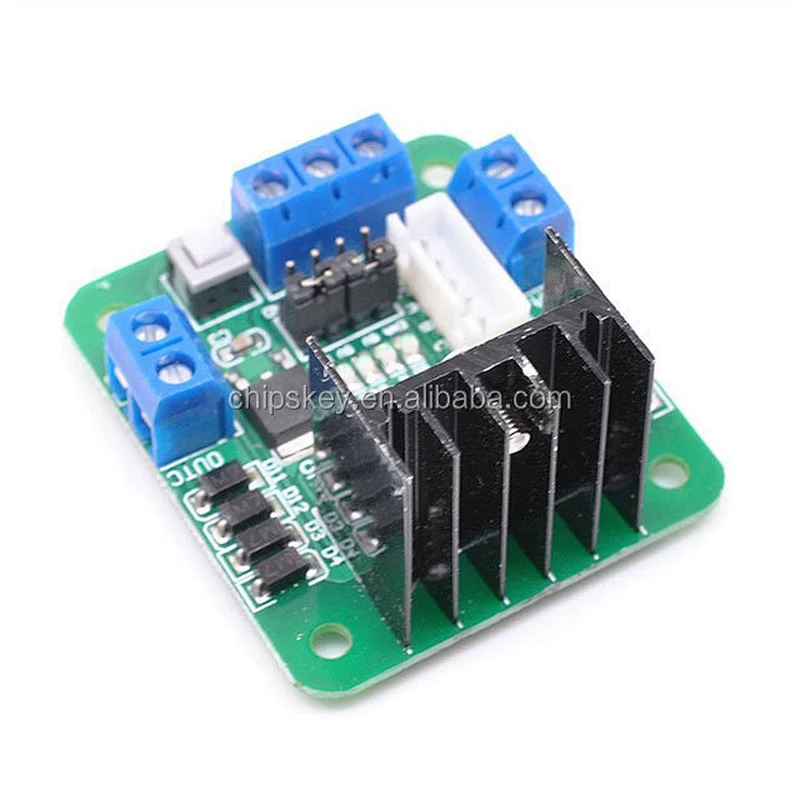

Stepper Motor Drive Controller Board Module L298N

• Model Number:19J024
• Type:Embedded System Development Boards and Kits
• Place of Origin:China

Product parameters:

1. Drive chip: L298N dual H-bridge DC motor driver chip

2. The driving portion of the terminal power supply range Vs: + 5V ~ + 35V; such as the need to take power within the board, the power supply range Vs: + 7V ~ + 35V

3. Drive part peak current Io: 2A

4. The logical part terminal power supply range Vss: + 5V ~ + 7V (can take power within the board + 5V)

5. The logical part of the operating current range: 0 ~ 36mA

6. Control signal input voltage range:
    Low: -0.3V≤Vin≤1.5V
    High: 2.3V≤Vin≤Vss

7. enable signal input voltage range:
    Low: -0.3≤Vin≤1.5V (control signal is invalid)
    High: 2.3V≤Vin≤Vss (control signal active)

8. Maximum power consumption: 20W (when the temperature T = 75 ℃)

9. Storage temperature: -25 ℃ ~ + 130 ℃

10. The driver board size: 55mm * 49mm * 33mm (with fixed copper pillar and heat sink height)

11. The driver board Weight: 33g

12. Other expansion: control direction indicator, take electrical interface within the logic portion of the plate
