LM393 Indicator Light 1 Channel Digital Output Humidity Sensor Relay Module For Arduinos

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:8045
• Part number:Reflective Infrared Sensor
• Brand:MIC
• Category:Module
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube

LM393 Indicator Light 1 Channel Digital Output Humidity Sensor Relay Module

Purpose:
Humidity testing, humidity sensor , humidity testing, with relay output , direct control of power related equipment
Module Features :

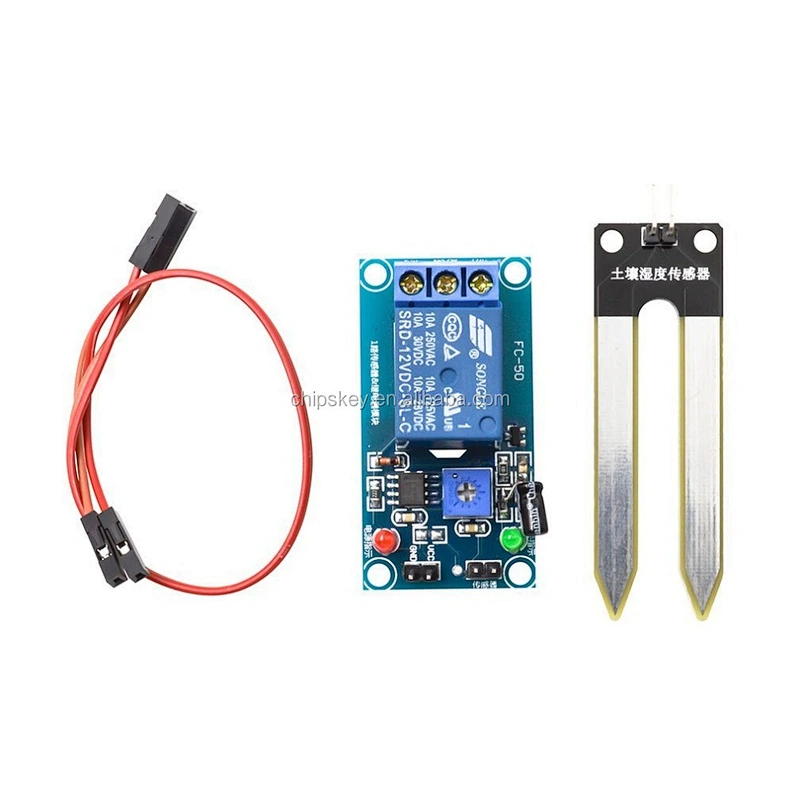

1 , using high quality HR202 humidity sensor ;

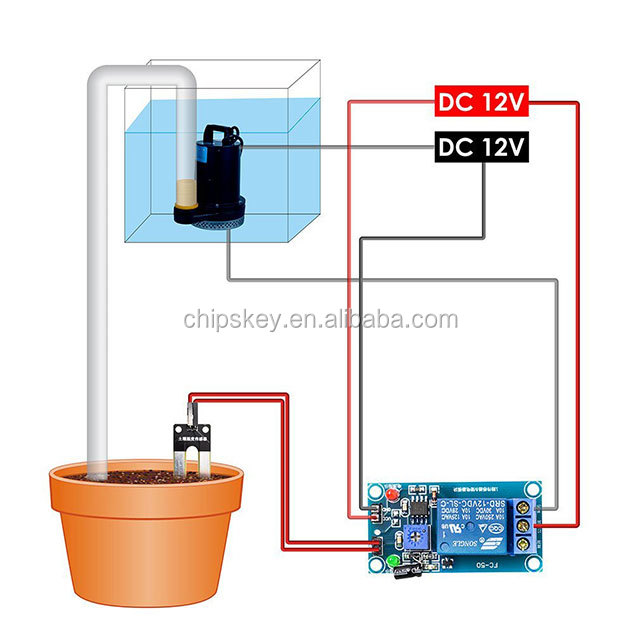

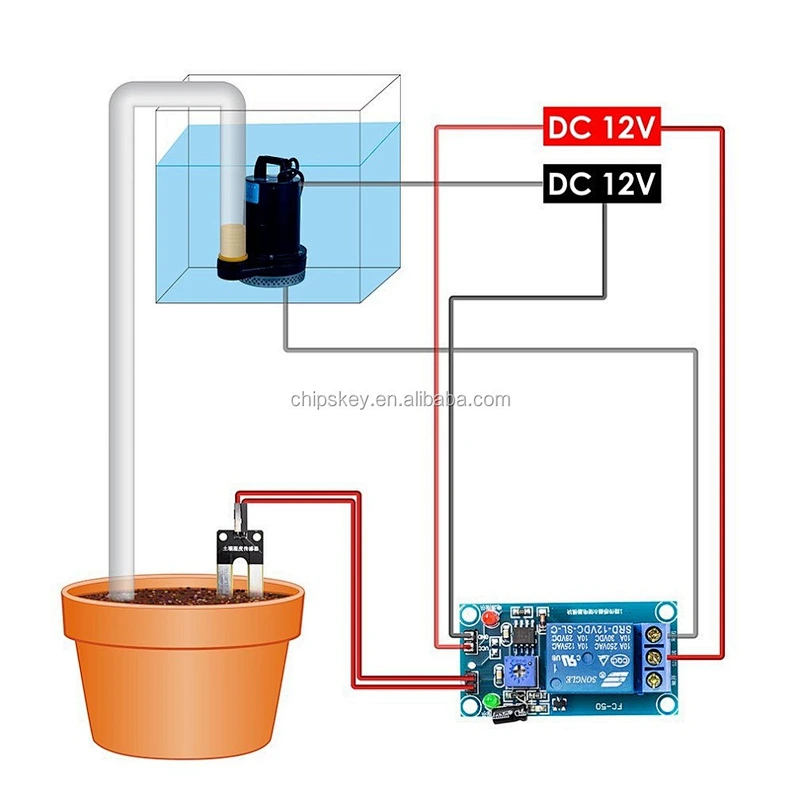

2 , the comparator outputs directly drive relays, or other devices connected to 220V AC ;
3 , adjust the temperature distribution bit detection threshold

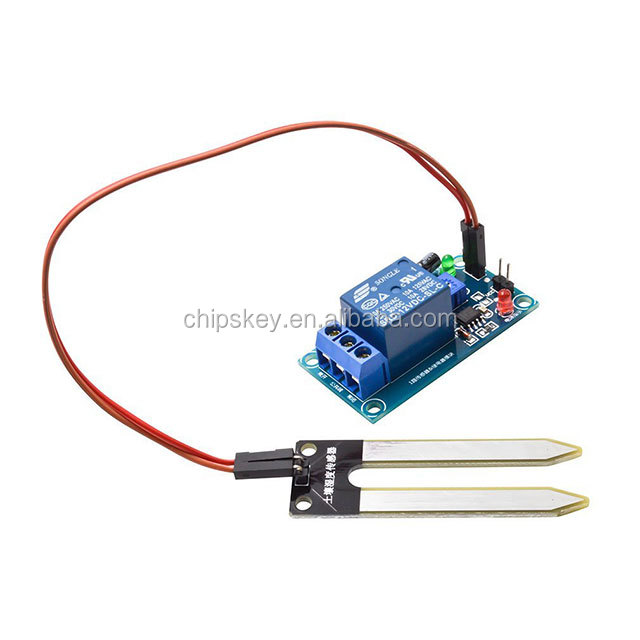

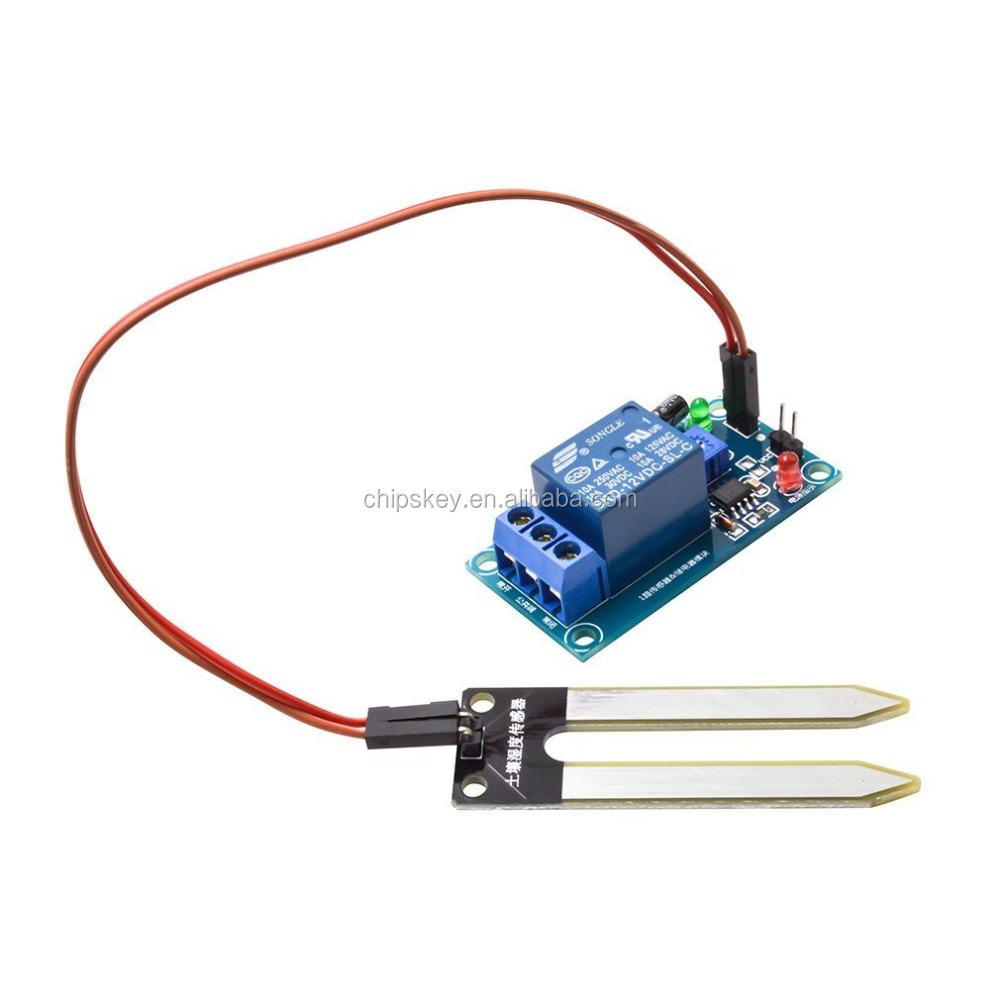

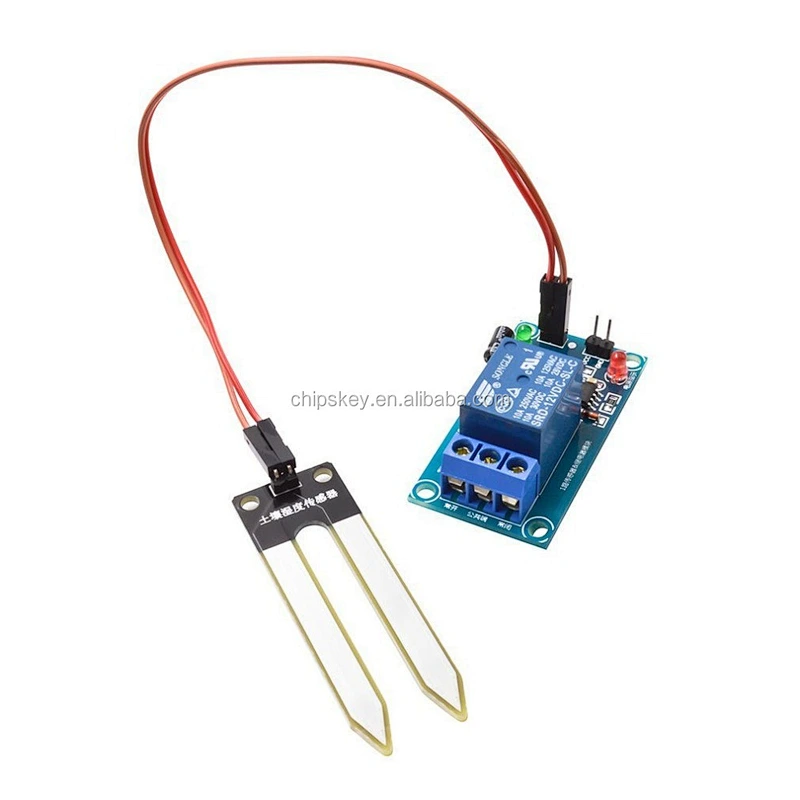

4, the sensor interface can be installed pin , plus humidity sensor with leads ;
5 , circuit board external dimensions : 50x26mm, thickness 19mm, 3mm bolts with four holes for easy installation
Electrical parameters:
Supply voltage : 5VDC or 12VDC ( default hair 5V, please leave a message needs to 12V )
Current : more than 150mA
Maximum load : 250V 10A AC or 30V 10A DC , this power can be used by small
Module for use:
1, the humidity sensor most sensitive to environmental humidity is generally used to detect ambient humidity ;

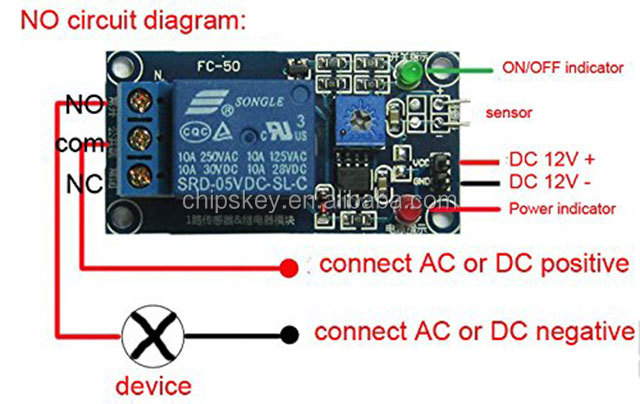

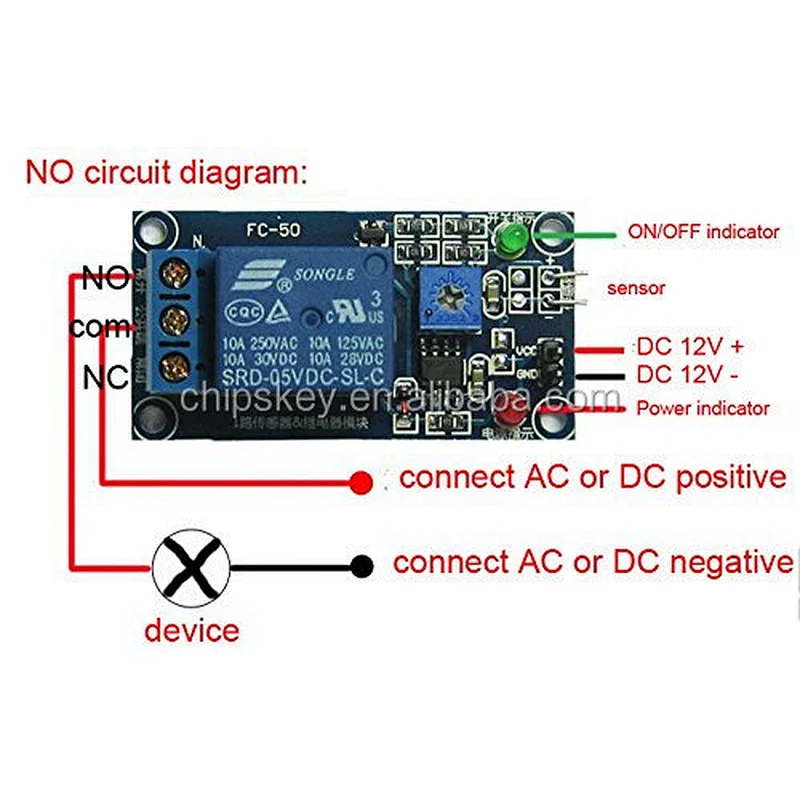

2 , the module in ambient humidity exceeds the set threshold, the relay , normally open end and connected to the public , when the outside ambient humidity is below the set threshold, the relay is switched off , the common and normally closed terminal connected ;
3 , common, normally open , normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with common terminal conduction, no electricity , the common and normally closed terminal conduction ;
