Mega R3 Neutral Without LOGO Mega R3 For Arduinos

Model NO.: 1004
Minimum order quantity: 1 piece

Quantity:

Product Description

Model Number:1004
Type:Other, Drive IC
Place of Origin:Guangdong, China
Brand Name:chipskey
Lead Free Status:Lead free / RoHS Compliant

Product Description

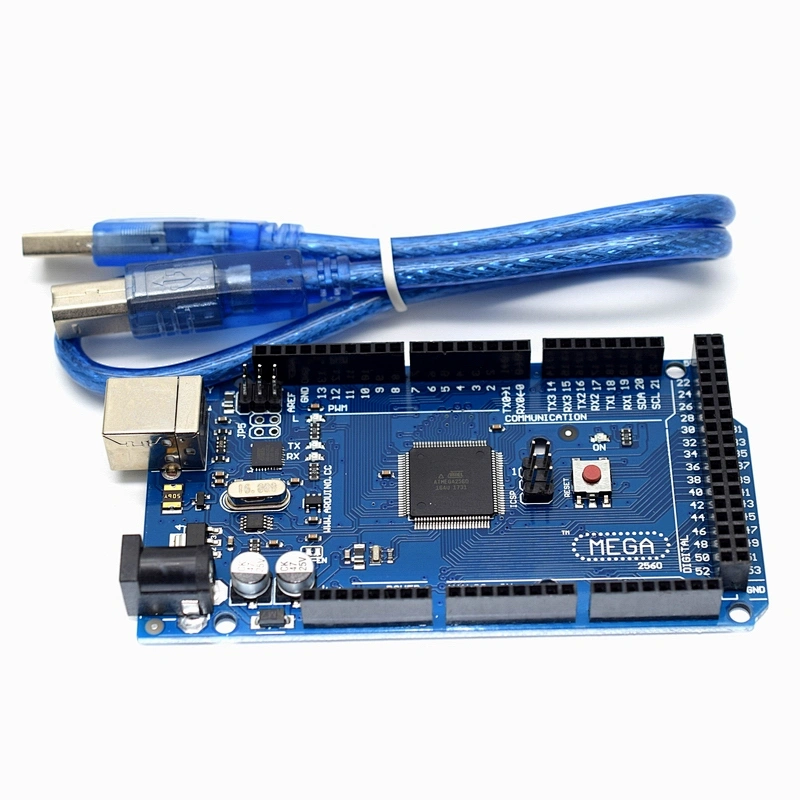

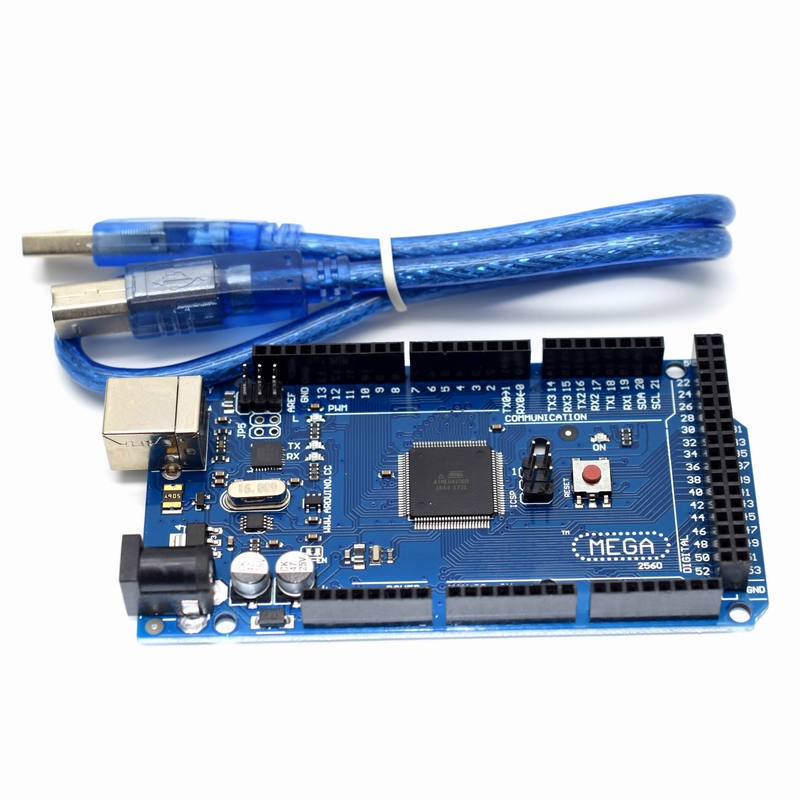

Neutral Without LOGO ATMEGA2560 Mega R3 + USB Cable For Arduinos

Microcontroller: ATmega2560-16AU
Operating voltage: 5V
Clock Speed: 16MHz
With USB cable version
Description:

This is compatible R3 Mega2560 ATmega2560-16AU control board with USB cable
Mega is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14
groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal
oscillator. With the bootloader, download the program directly via USB without having to go through other external writer. Supply
part of the optional USB power, or as an external power using the AC-to-DC adapter and battery.
Rapid growth due to open the original code, as well as the concept of using Java (cross-platform) C language development
environment for peripheral module. The main reason attracted Artist can quickly use the language with Flash or Processing ...
software communication, to make multimedia interactive works. development IDE interface is based on open-source principles, allows
you to free download for use in project work, school teaching, motor control, interactive works.
Power supply design
There are two options for the power supply system of the Mega USB direct power supply or external power supply. The choice of
power supply will be switched automatically. External supply AC-to-DC adapter or the battery can be selected on this control
panel. Limit the voltage range of 6V ~~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a
voltage of 5V, and therefore instability; If the voltage is greater than 12V, the regulator device may possibly overheating
protection, are more likely to damage the MEGA. Therefore recommended operating supply 6.5 ~ 12V, the recommended power supply to
7.5V or 9V.
The development board have been rigorously tested each product at the factory before to burn a Blink small program, please get the
goods energized inspection under the L lamp will be lit for 3 seconds and then off for 1 second, non-stop cycle to Detection of
the board is good or bad.
Its chip is Original

Specification:

Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (limits): 6-20V
Digital I / O pins: 54 (of which 14 provide PWM output)
Analog input pins: 16
DC current per I / O pin: 40 mA
DC current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 4 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16MHz

Package included:

1 x MEGA 2560 R3 development board
1 x USB cable

Company Profile

Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduino, sensor module for arduino, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduino & Modules For Raspberry PI ,Smart Home Products

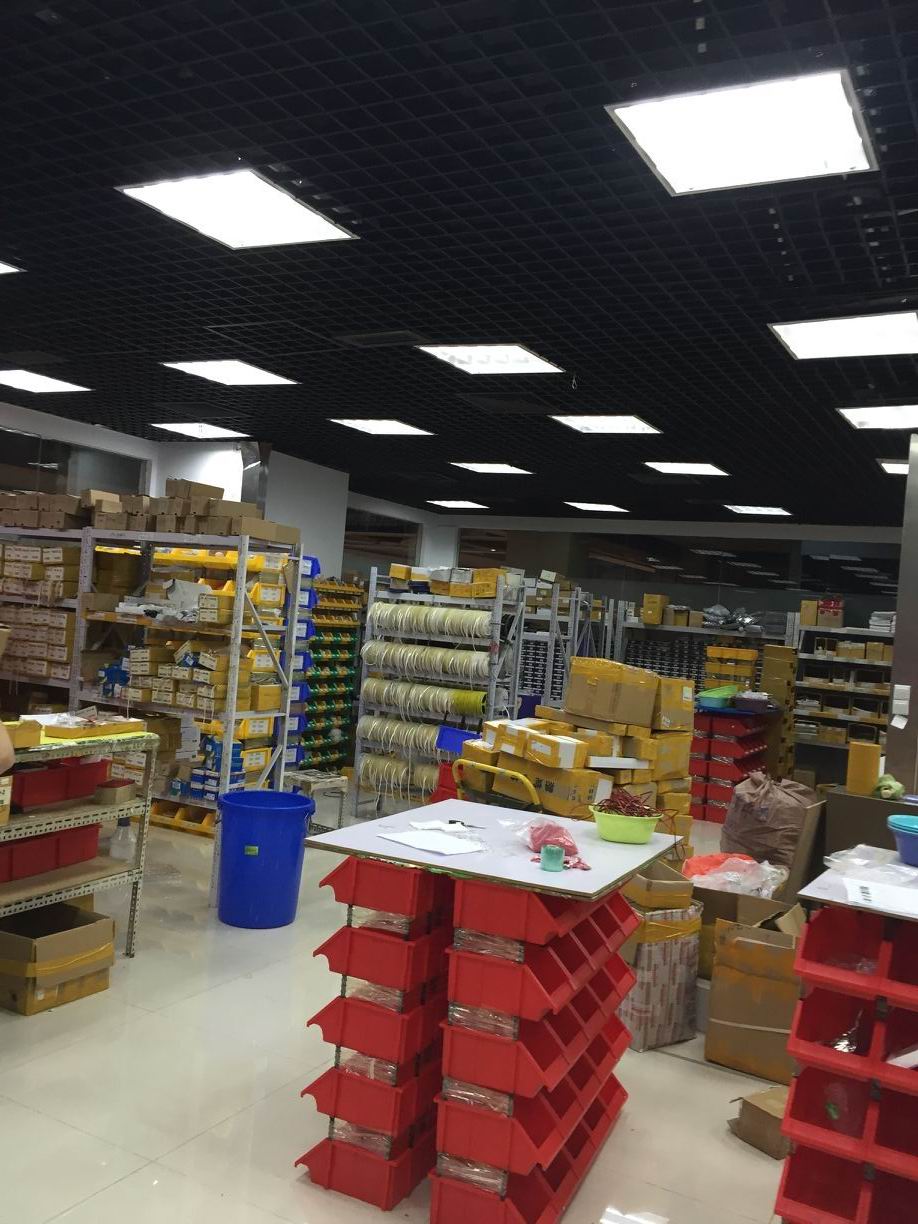

WareHouse

This is our Warehouse ,We Can Make A Fastest Shipment per Day

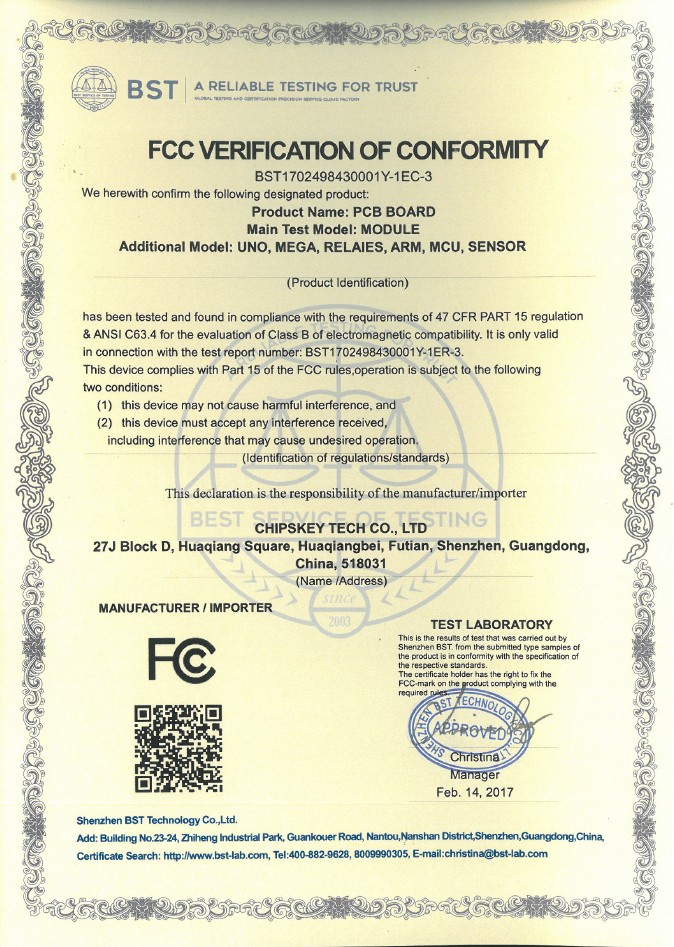

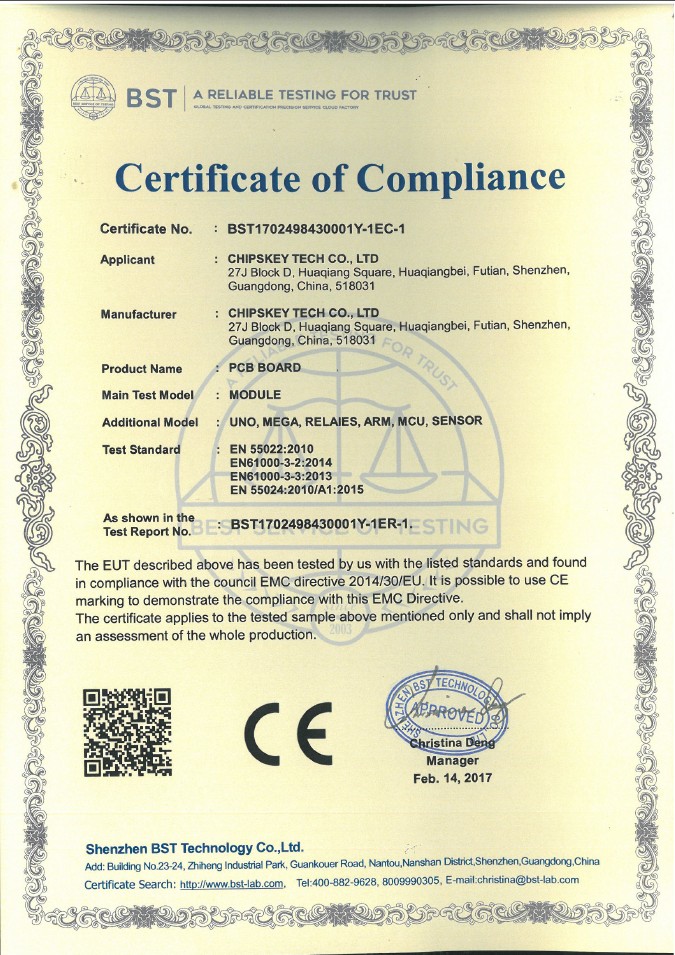

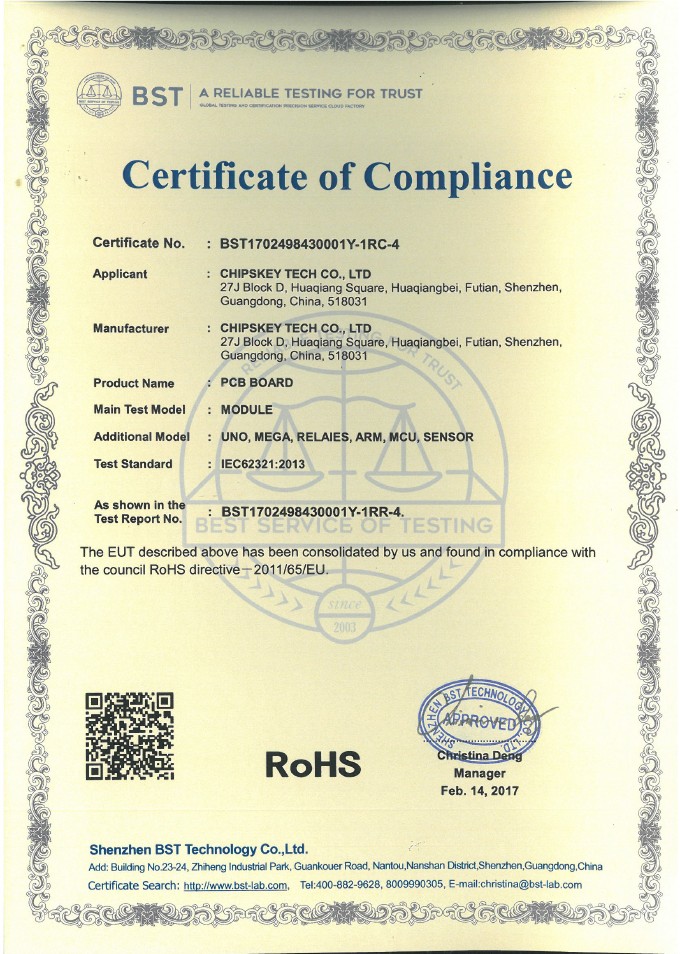

Certifiactions
