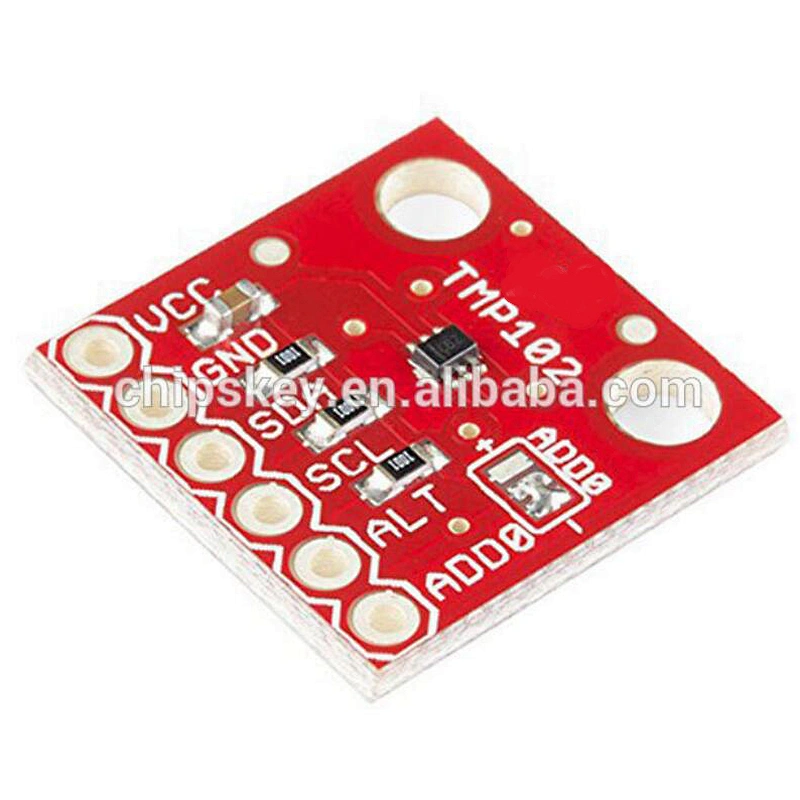

TMP102 Digital Temperature Sensor Breakout

• Model Number:28227
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Color:blue
• Weight:0.0
• SKU:28227

TMP102  Digital Temperature Sensor Breakout

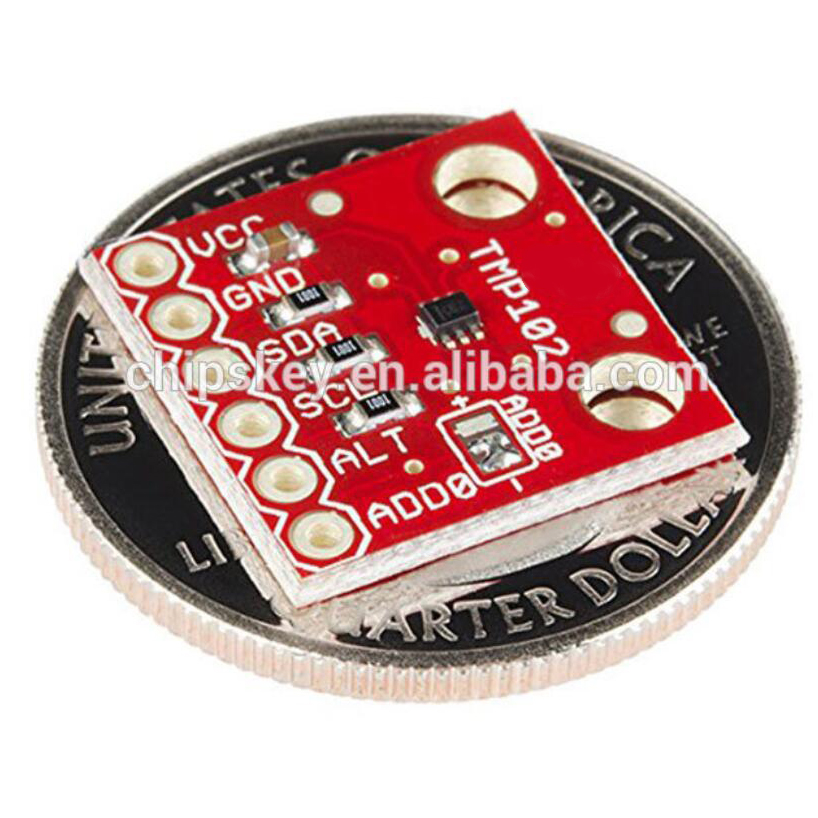

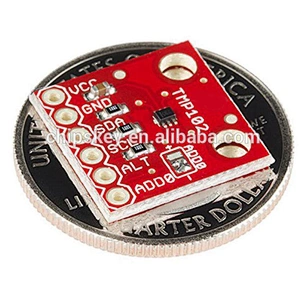

Description: This is a breakout board for the incredibly small TMP102 digital temperature sensor. The TMP102 is a digital sensor (I2C a.k.a. TWI), has a resolution of 0.0625°C, and is accurate up to 0.5°C. This is a very handy sensor that requires a very low-current.

Communication with the TMP102 is achieved through a two-wire serial interface. There is no on-board voltage regulator, so supplied voltage should be between 1.4 to 3.6VDC. Filtering capacitors and pull-up resistors are included as shown.

Features:

12-bit, 0.0625°C resolution
Accuracy: 0.5°C (-25°C to +85°C)
Low quiescent current
10μA Active (max)
1μA Shutdown (max)
1.4V to 3.6VDC supply range
Two-wire serial interface
2x Mounting Holes
