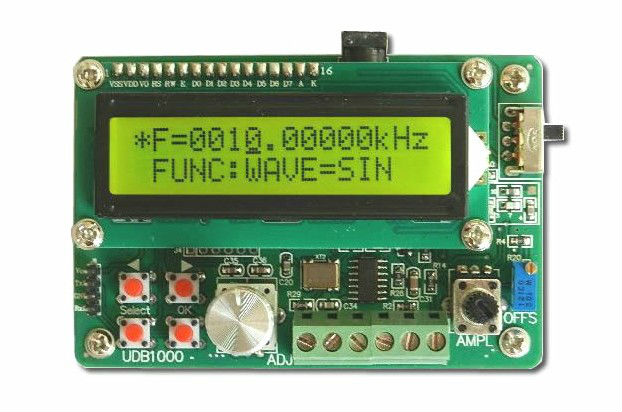

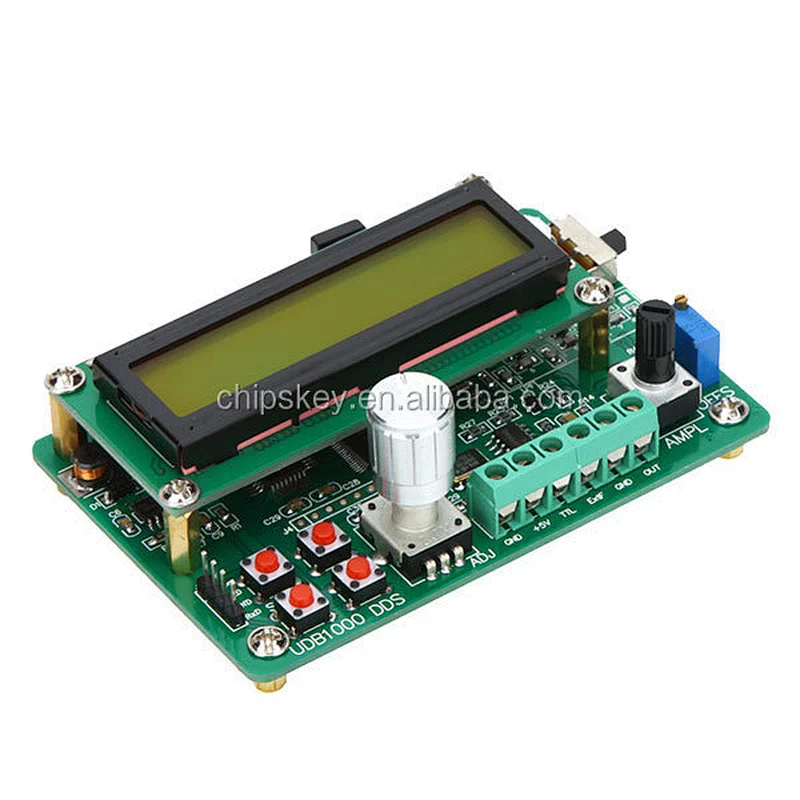

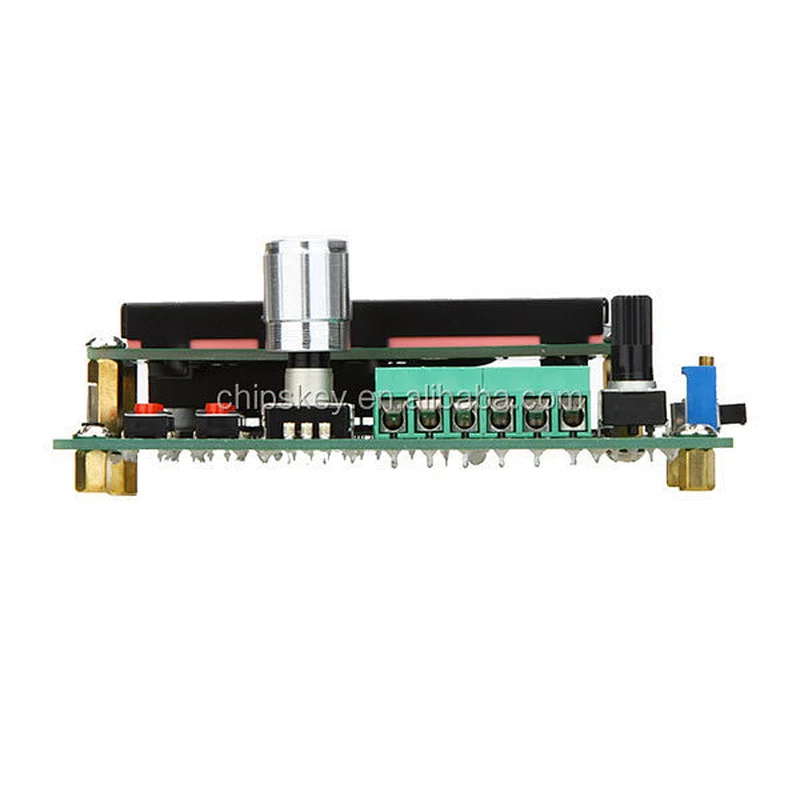

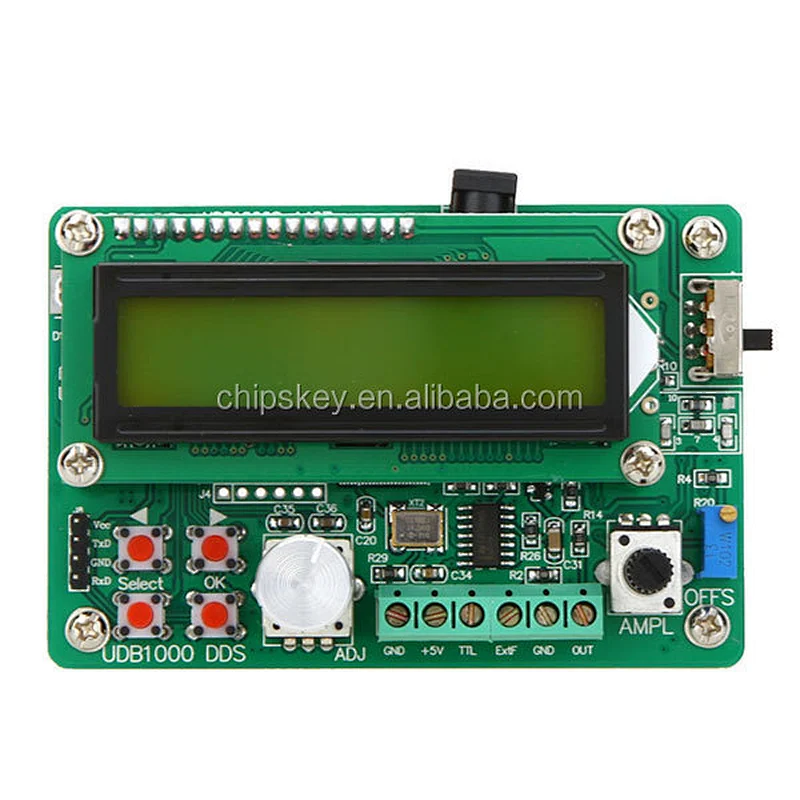

UDB1000 series DDS signal source, signal generator, with 60MHz frequency meter

• Model Number:3027
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Category:Module
• Part number:3027
• Brand:chipskey

UDB1000 series DDS signal source, signal generator, with 60MHz frequency meter

"Specifications:
Signal Output Function:
Output Waveform: Sine Wave / Square Wave / Triangle Wave
Output Amplitude: >= 9Vp-p(signal output ,no load)
Output Impedance: 50Ω10%
DC Offset: 2.5V(no load)
Display: LCD1602
Frequency Range: 0.01Hz-5MHz
Frequency Resolution: 0.01Hz
Frequency Stability: 1×10^(-6)
Frequency Accuracy: 5×10^(-6)
Sine Wave Distortion: <=0.8% (reference frequency is 1kHz)
Triangle Wave Linearity: >=98% (0.01Hz-10kHz)
Rise and Fall Time of Square Wave: <=100ns
Square Wave Duty Range: 1%-99%
TTL Output Function:
Frequency Range: 0.01Hz-5MHz
Amplitude: >3Vp-p
Fan Out Coefficient: >20 TTL Load
Counter Function:
Counter Range: 0-4294967295
Frequency Measurement Range: 1Hz-60MHz
Input Voltage Range: 0.5Vp-p-20Vp-p
Scanning Function:
Frequency Range: fM1-fM2(frequency can be freely set)
Input Voltage Range: 0.5Vp-p-20Vp-p

Item Size: 9.5 * 6 * 3cm / 3.7 * 2.4 * 1.2in
Item Weight: 84g

"
