- Model Number:31044
- Type:Other
- Place of Origin:China
- SKU:31044
"description:

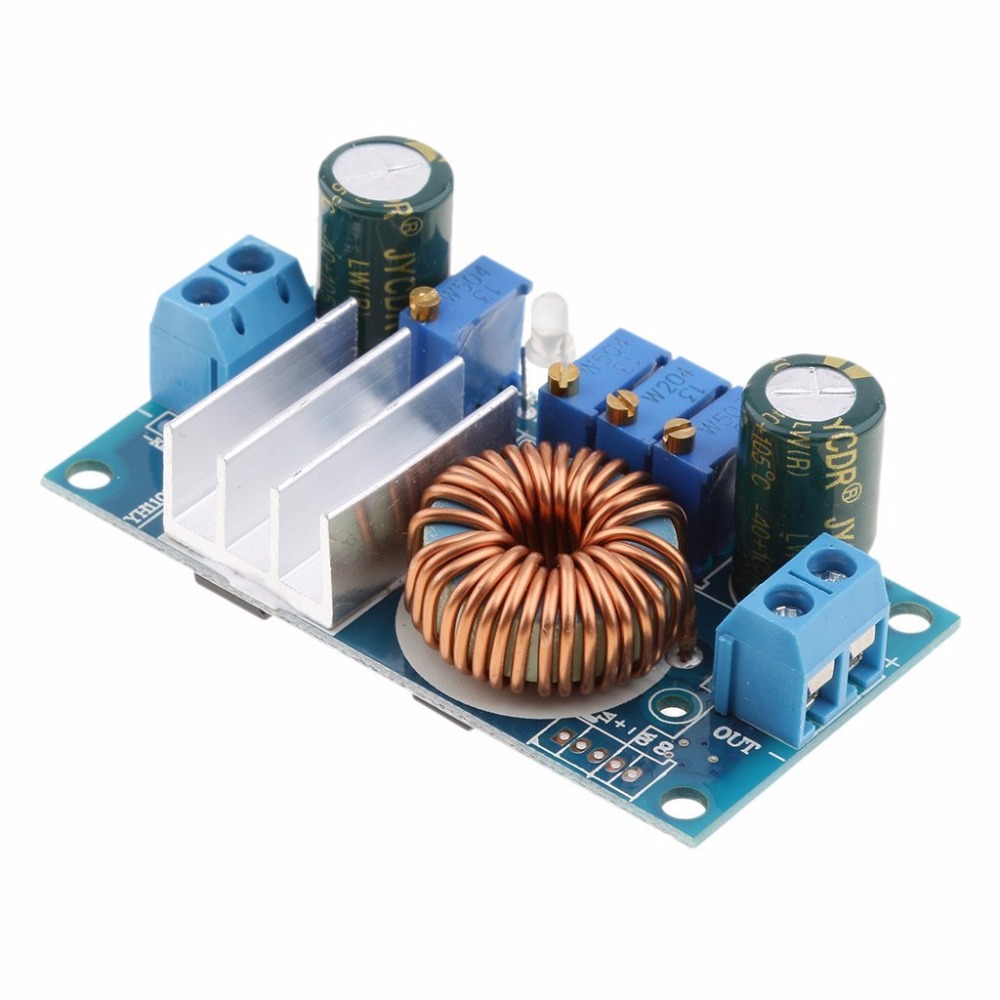

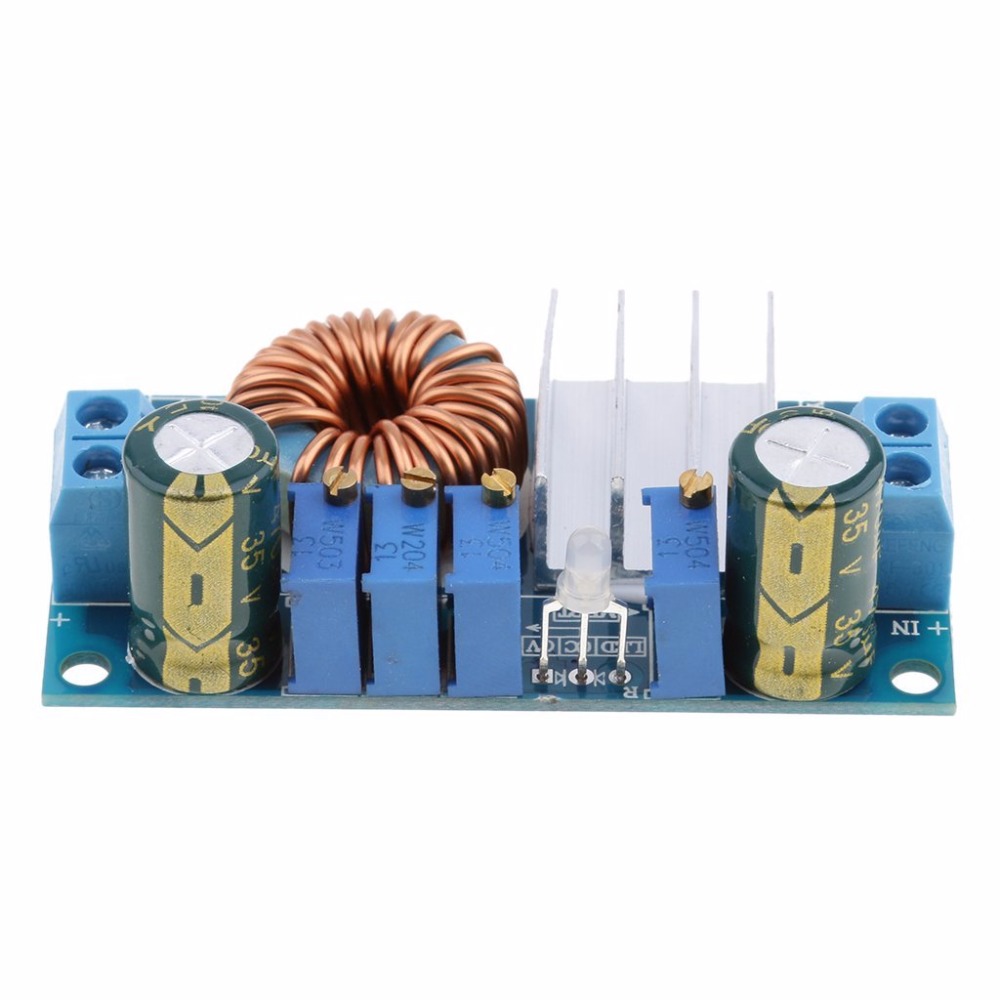

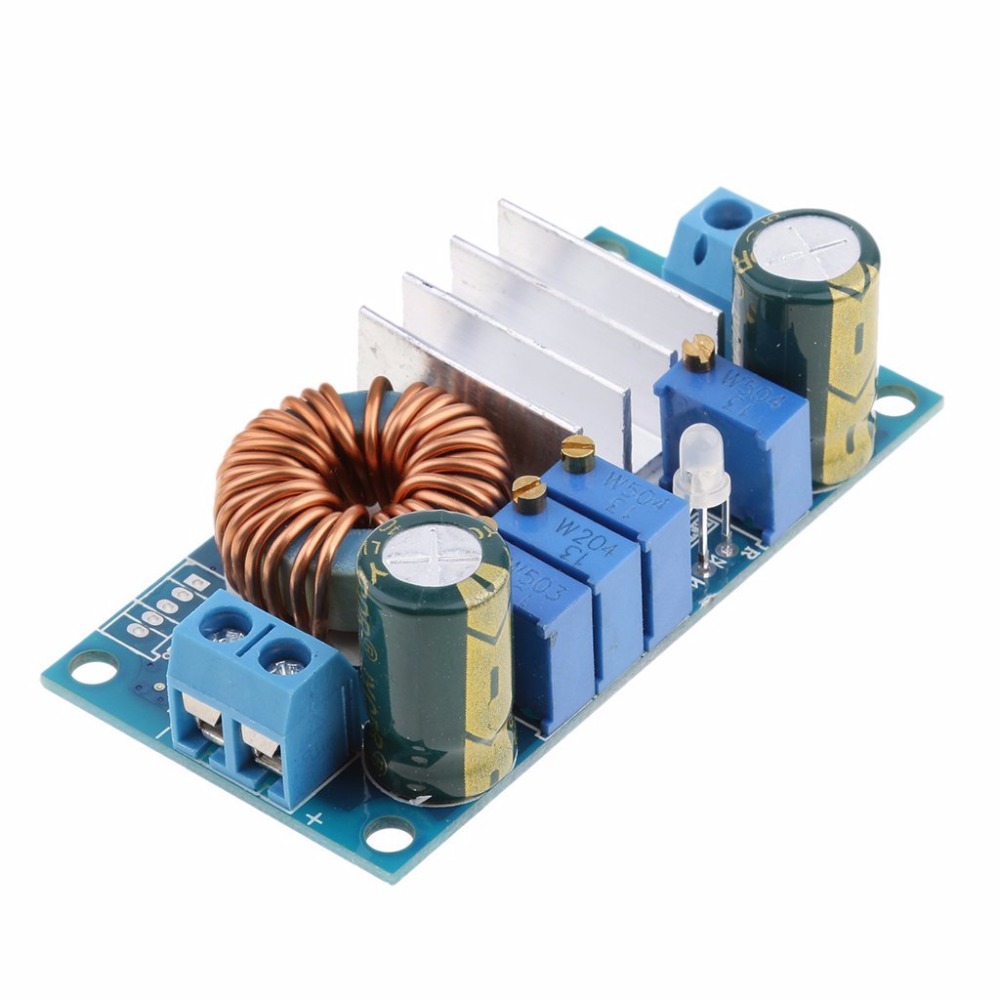

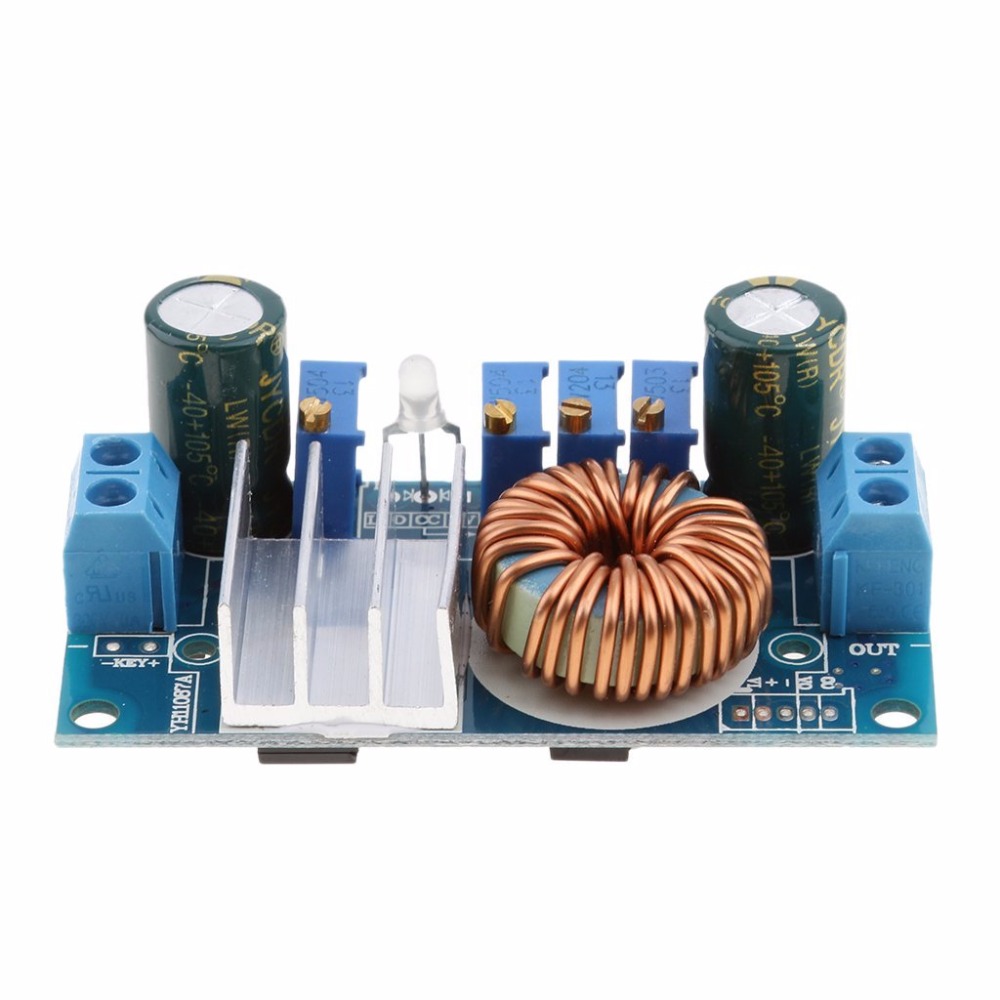

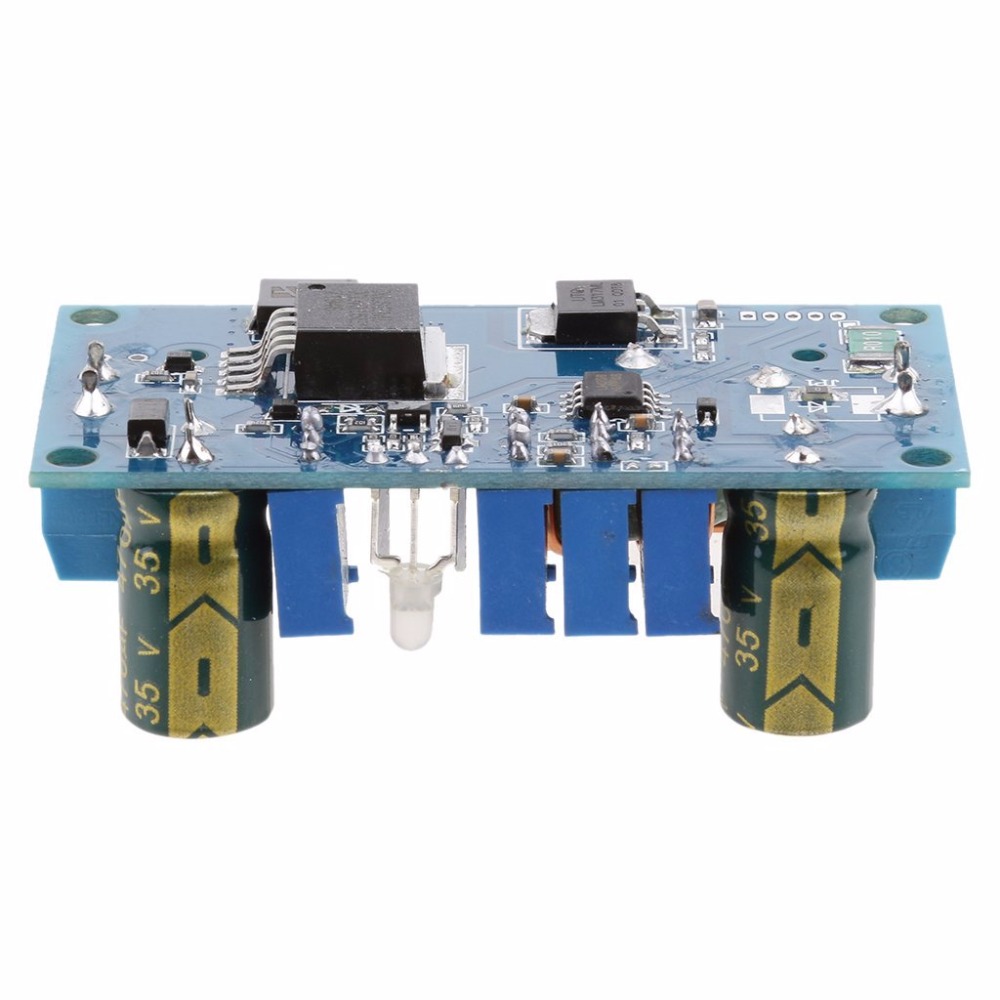

- 5A constant current and step-down module with MPPT control.
- Effectively shorten the solar battery charging time.
- Conversion efficiency up to 95%, improve charging efficiency.
- Battery, lithium battery, etc. can be charged with turn signal control.
- Powering mobile phones or various digital products as on-board power to drive high-power LEDs.
specification:
- Attributes: Non-Isolated Buck Module (BUCK)
- Input voltage: 6-36V
- Output voltage: 1.25-32V continuously adjustable (default output 5V)
- MPPT voltage setting range: 6-36V
- Output current range: 0.05-5A (the default output current of 3A, for a long time within 3A)
- Turn signal output range: 0.01-5A (default 0.3A), the current range will be slightly different due to the wrong parameters of each part.
- Multi-function dual display: input voltage, output voltage, output current, output power
- Operating temperature: -40 to +85 degrees
- Working frequency: 180KHz
- Conversion efficiency: up to 95% (efficiency versus input voltage, output voltage, current and voltage difference)
- Short circuit protection: yes
- Over-temperature protection: yes (automatic shutdown output after over-temperature)
- Input Reverse Polarity Protection: None (Please add diode string if necessary)
- Installation: 3mm screws (4)

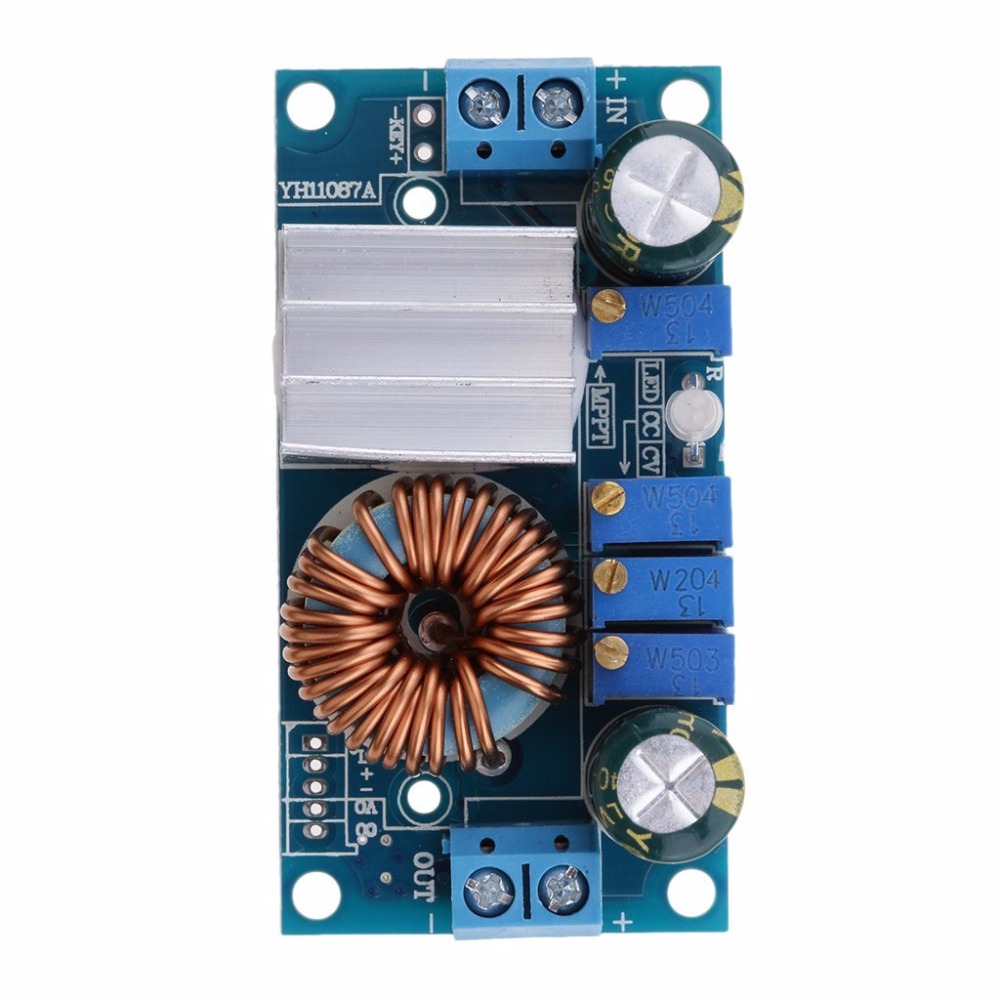

- Connection: Terminal, IN input, OUT output
- Size: 60 * 31 * 22 mm (L * W * H)
Package includes:

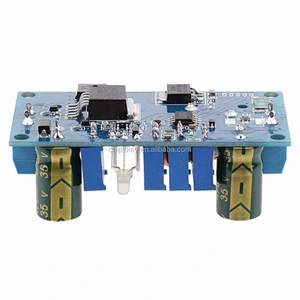

1 MPPT DC-DC step-down converter
note:
The current test module is a low-end test, please do not directly connect the input negative and negative output!"
