- Model Number:31122
- Type:Other
- Place of Origin:China
"product description
Supply voltage: 6-36V to 1.25-32V
Operating temperature: -40 to +85
UPC: 5a mppt Solar Panel Controller Voltage Buck m
Match 1: mppt module
Match 2: mppt solar controller
Match 3: Constant current module solar energy
Matching 5: solar panel controller
Match 4: Constant voltage current step-down
Match 6: mppt 5a

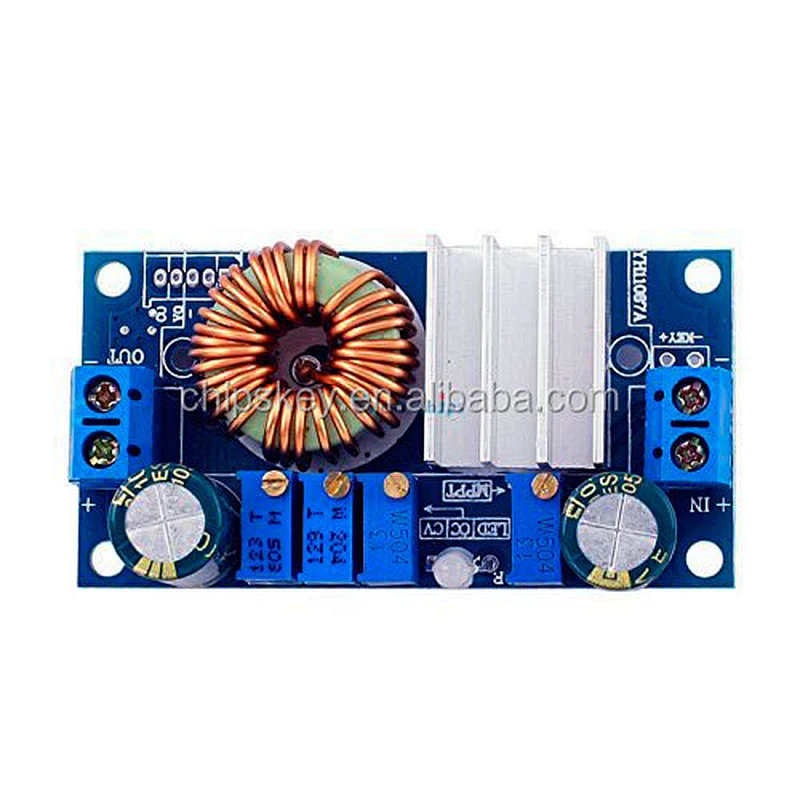

Module Name: 5A Buck Constant Voltage Constant Current MPPT Module Performance: Non-isolated buck module Input voltage: 6-36V Output voltage: 1.25-32V continuously adjustable (default output 5V) MPPT voltage setting range: 6- 36V Output current range: 0.05-5A (the default output current is 3A) Turn signal output range: 0.01-5A (default turn signal current 0.3A) Due to the part parameter error, the current range will have a little difference. Display: None Operating Temperature: -40 to +85 degrees Operating Frequency: 180KHz Conversion Efficiency: Up to 95% (Efficiency, I / O Voltage, Current and Pressure Related) Short Circuit Protection: Yes Over Temperature Protection: : None (Please add series diode if necessary) Output anti-reverse protection: No, the output must be connected to the battery plus blocking diode, otherwise it will burn the module! Charging indicator: Charging red, green when fully charged. Output current detection Installation: 4 x 3mm screw connections: IN is the input and OUT is the output module size: 60 x 31 x 22 mm (not included with the meter) Note: The detection module should not be connected directly to the output of n"
