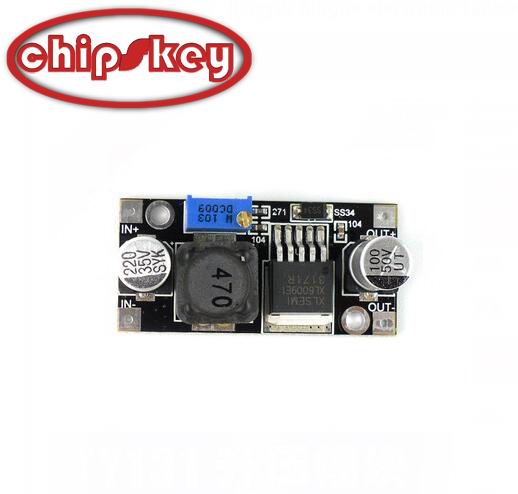

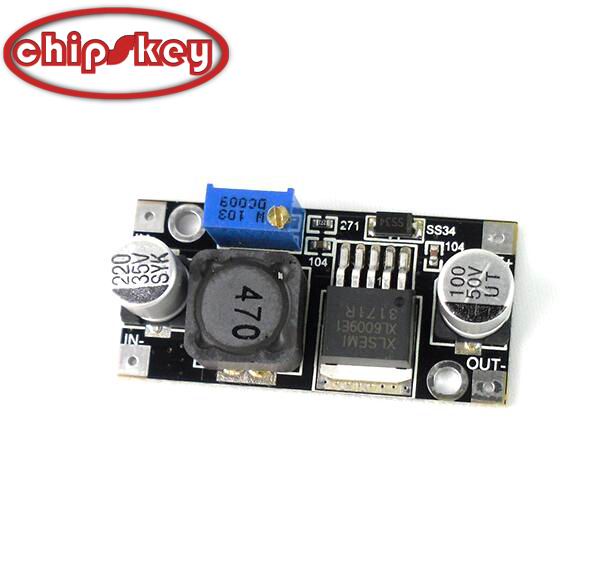

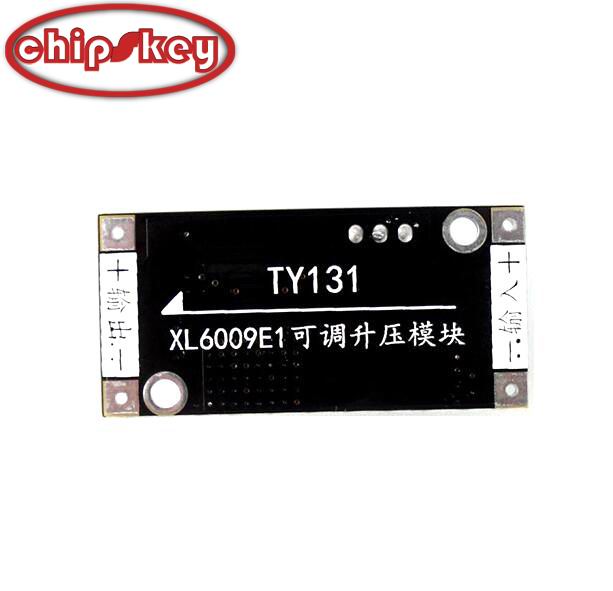

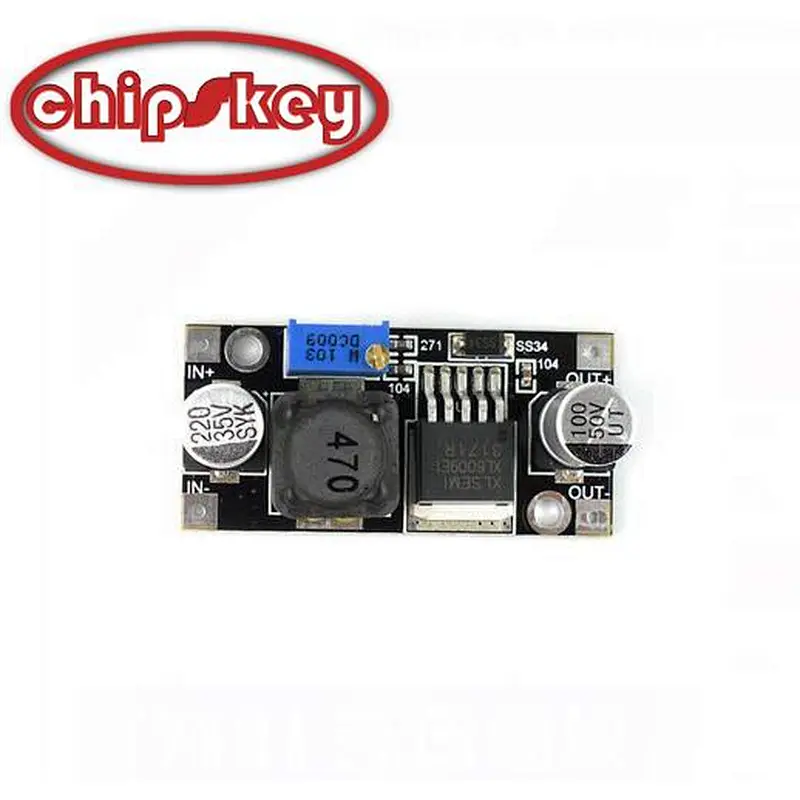

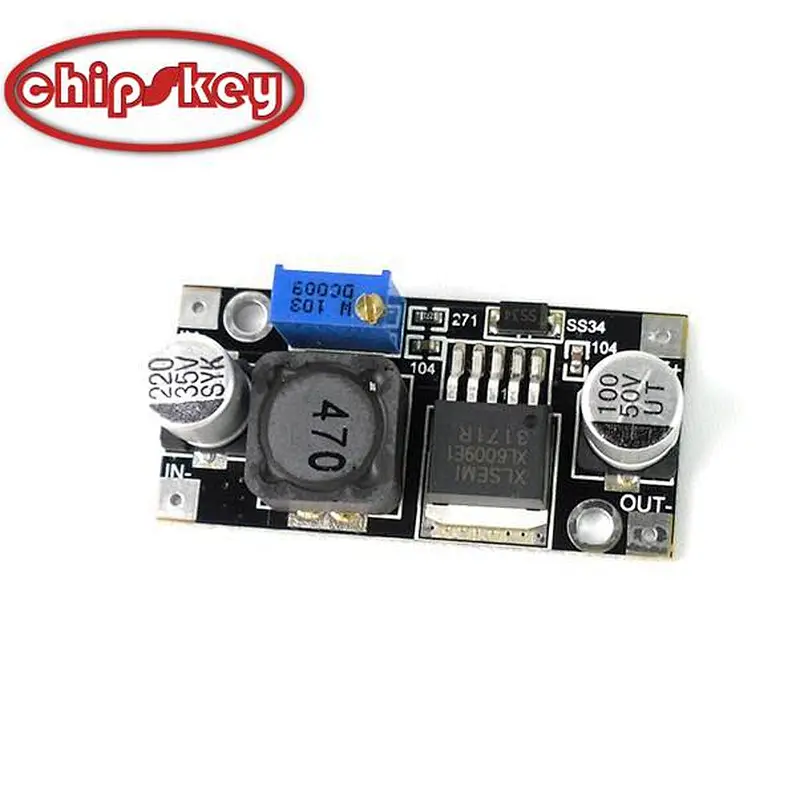

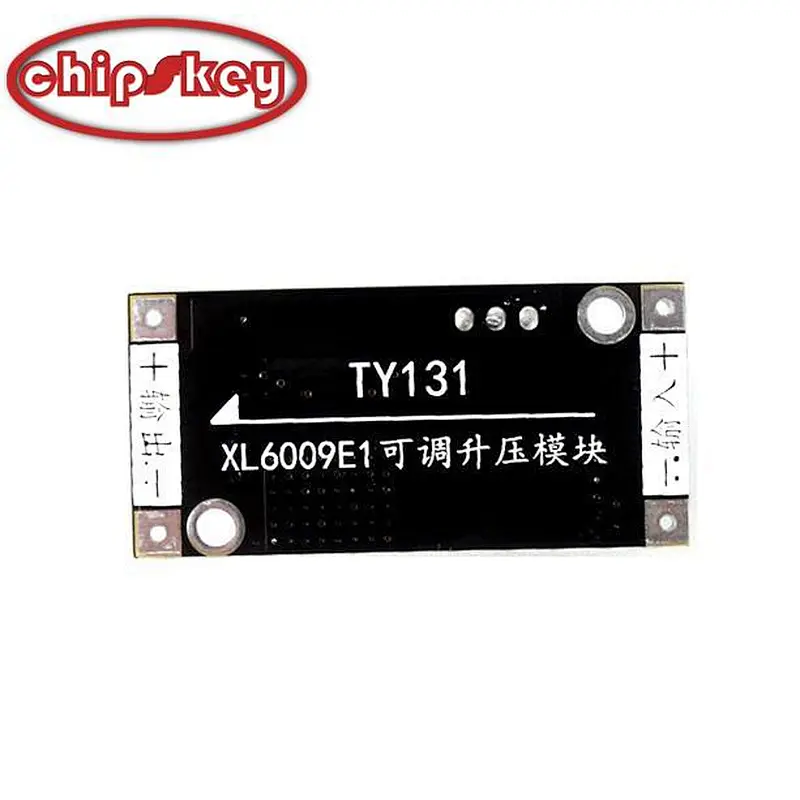

Chipskey XL6009 DC-DC Booster module Power supply module output is adjustable Super LM2577 step-up module H-M162

• Model Number:30163
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:30163
• Brand:chipskey

Chipskey XL6009 DC-DC Booster module Power supply module output is adjustable Super LM2577 step-up module H-M162

Module nature
Non-isolated boost (BOOST)
Rectifier mode
Non-synchronous rectification
Enter the range
3V ~ 32V
Output range
4V ~ 38V
Input Current
4A (maximum), no load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the greater the load current.)
Conversion efficiency
<94% (the greater the pressure difference, the lower the efficiency)
On-off level
400KHz
Output ripple
50mV (the higher the voltage, the bigger the current, the bigger the ripple)
Load Regulation
± 0.5%
Voltage regulation
± 0.5%
Operating temperature
-40 ℃ ~ +85 ℃
Dimensions
43mm * 21mm * 14mm (L * W * H)
