- Model Number:19J035
- Type:Power Management Development Boards and Kits
- Place of Origin:China
- sku:19j035

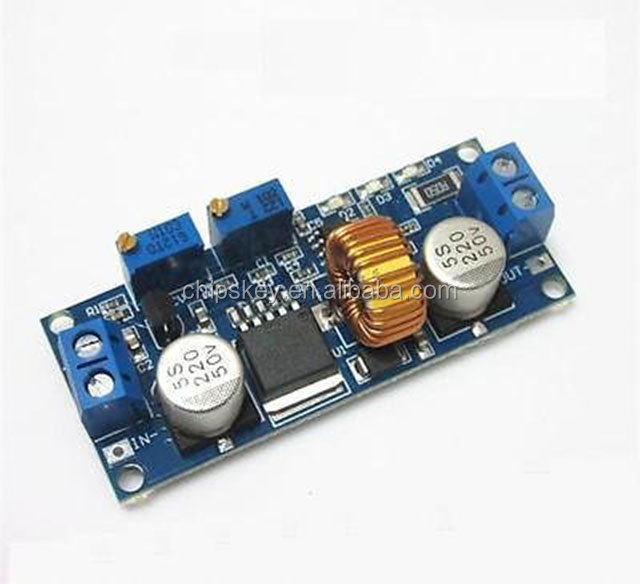

Description:
1. High-power, high efficiency, 5A, low ripple;
2. triple:
(1) use as an ordinary step-down modules with overcurrent protection capabilities;
(2) as the value of various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery) charger for solar panels, wind turbines and other occasions;
(3) used as high-power LED constant current driver module;

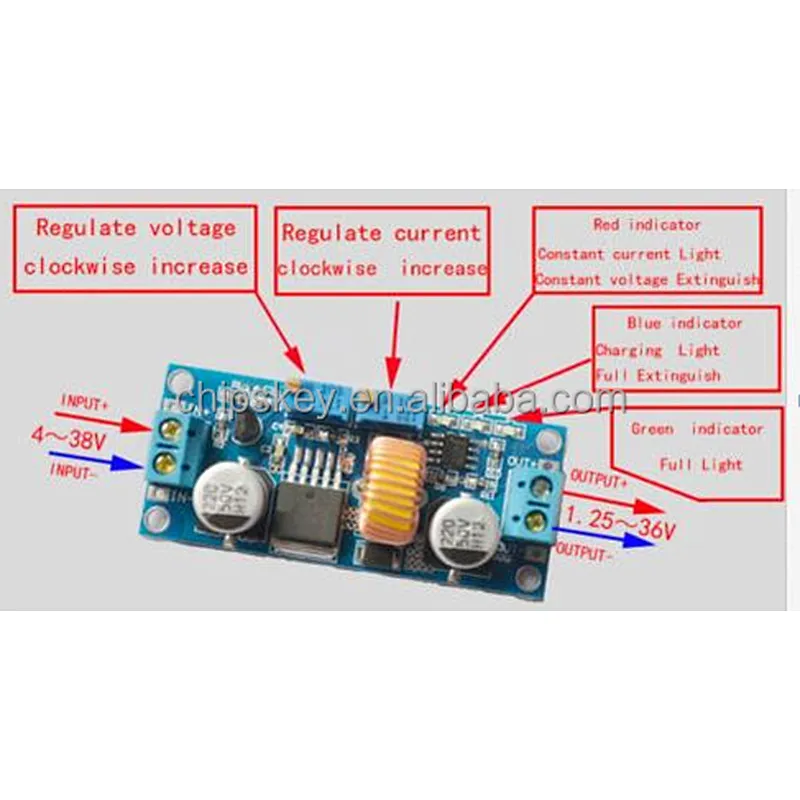

3. With Constant voltage and current modes, the indicator light indicates which mode is currently in the module;
4. When using a lithium battery charger, you can set the float voltage and charge current, has a light finger
It is shown being charged or has been filled;
5. The current limiting protection, short circuit will not burn even if the output module.

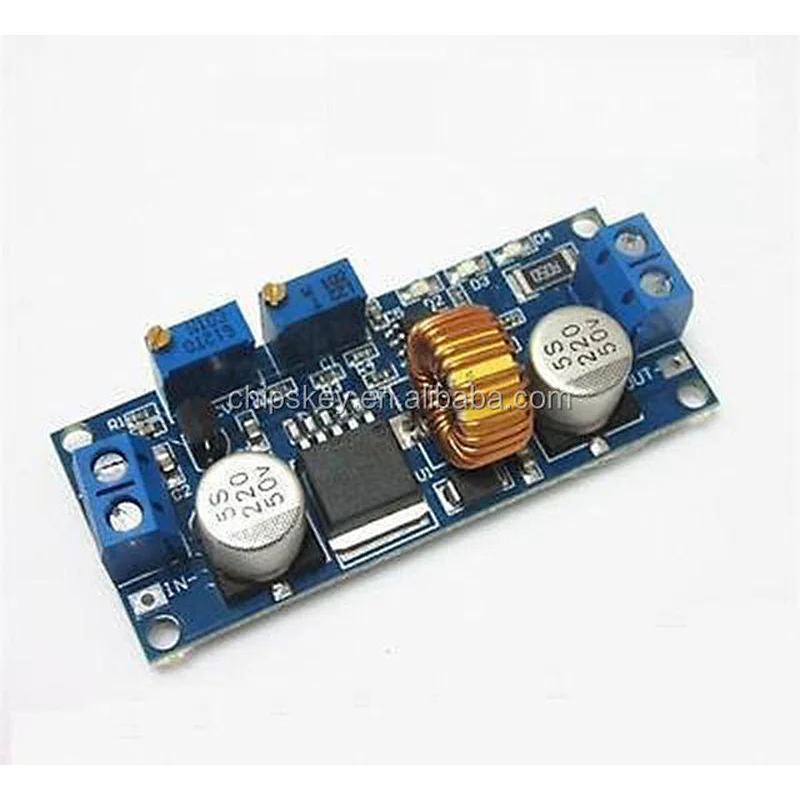

Module parameters
Input voltage: 4-38V
Output voltage: 1.25-36V continuously adjustable
Output current: adjustable, 5A
Output Power: 75W maximum
Operating temperature: -40 to + 85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Short circuit protection: YES (limit current 8A)
Overtemperature protection: (automatically shut off the output after overtemperature)
Input Reverse Polarity Protection: None (if necessary please enter the string into the high current diode)
Installation: four 3mm screws
Connection: terminals or solder terminals, V-IN is the input, V-OUT output
Module size: 15mm long 61.7mm wide and 26.2mm high
Weight: 25g
Twenty-two range of applications
1. Use as an ordinary step-down modules with overcurrent protection capabilities
Instructions:
(1) This regulation potentiometer, the output voltage reaches the value you want
(2) 10A current with a multimeter measuring the output short-circuit current file (directly to the two leads to the output can be), while adjusting the constant current potentiometer allows the output current reaches a predetermined overcurrent protection value. (Such as the current value displayed on the multimeter is 4A, then you can use the module to a maximum current of 4A, 4A current to the constant voltage constant current when the red indicator light, otherwise light off)
Note: When used in this state, since the output of 0.05 ohm current sense resistor, there will be 0 ~ 0.3V voltage drop after connected to the load, this is normal! This drop is not being pulled down your load, but down-sampling resistor.
2. Use as a battery charger
Without constant function module can not be used to charge the battery, due to the complete consumption of the electrical battery charger with big difference between charging current is too large, resulting in damage to the battery, so start to the battery using a constant current charging, when charging to a certain extent automatically switch back to constant voltage charging.
Instructions:
(1) determine that you need to recharge the battery float voltage and charging current; (lithium parameters if 3.7V / 2200mAh, then float voltage of 4.2V, the maximum charging current 1C, namely 2200mA)
(2) under no-load conditions, the multimeter to measure the output voltage, the constant voltage potentiometer to adjust the output voltage reaches the float voltage; (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
(3) with a multimeter 10A current range measuring output short-circuit current (directly to the two leads to the output can be), while adjusting the constant current potentiometer allows the output current reaches a predetermined charge current value;
(4) Charge turn lamp current factory default is 0.1 times the charging current; (Battery during charging current is gradually reduced, gradually converted to constant voltage charging by the constant current charging, if the charging current setting is 1A, then when the charging current is less than 0.1A when the blue lights off, the green light is on, then the battery is fully charged)
(5) connected to the battery charge.
(1,2,3,4 steps as: termination power input, the output of load cell is not connected)
3. Use a high-power LED constant current driver module
(1) determine that you need to drive the LED operating current and the maximum operating voltage;
(2) no-load condition, the multimeter to measure the output voltage of the constant voltage potentiometer to adjust the output voltage reaches the LED maximum working voltage;
(3) 10A current with a multimeter to measure the output short-circuit current gear while adjusting the constant current potentiometer allows the output current reaches a predetermined LED operating current;
(4) connected to the LED, the test machine.
(Steps 1 through 3 are: power supply input connected to the output load is not connected LED lights.)
