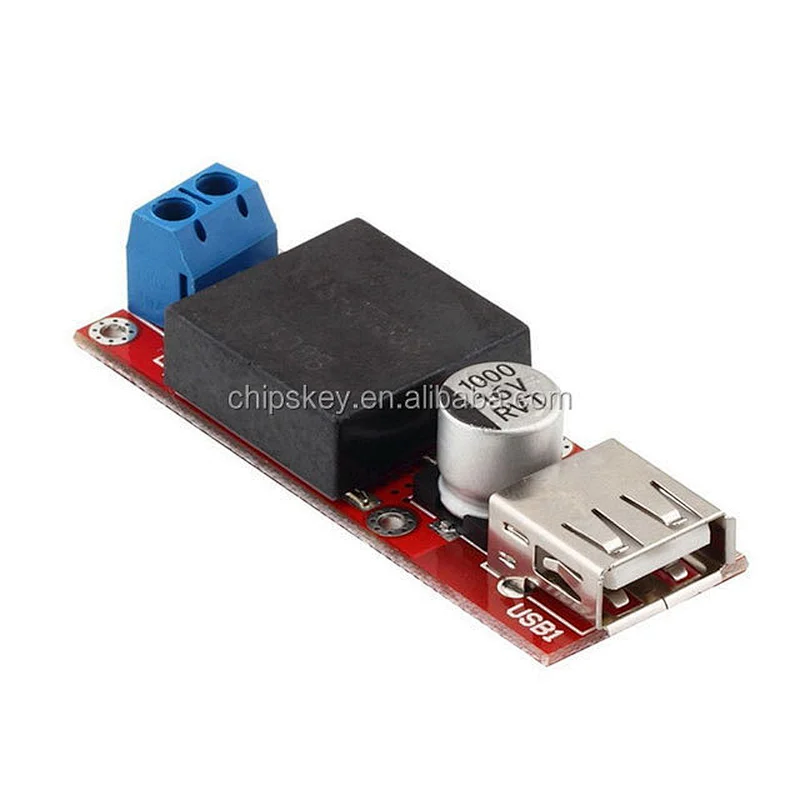

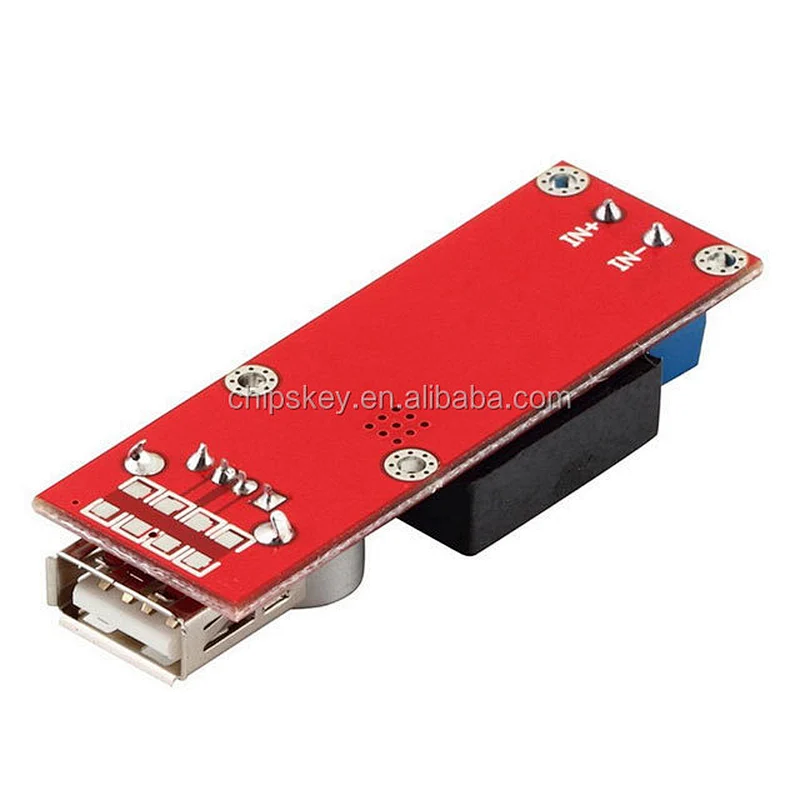

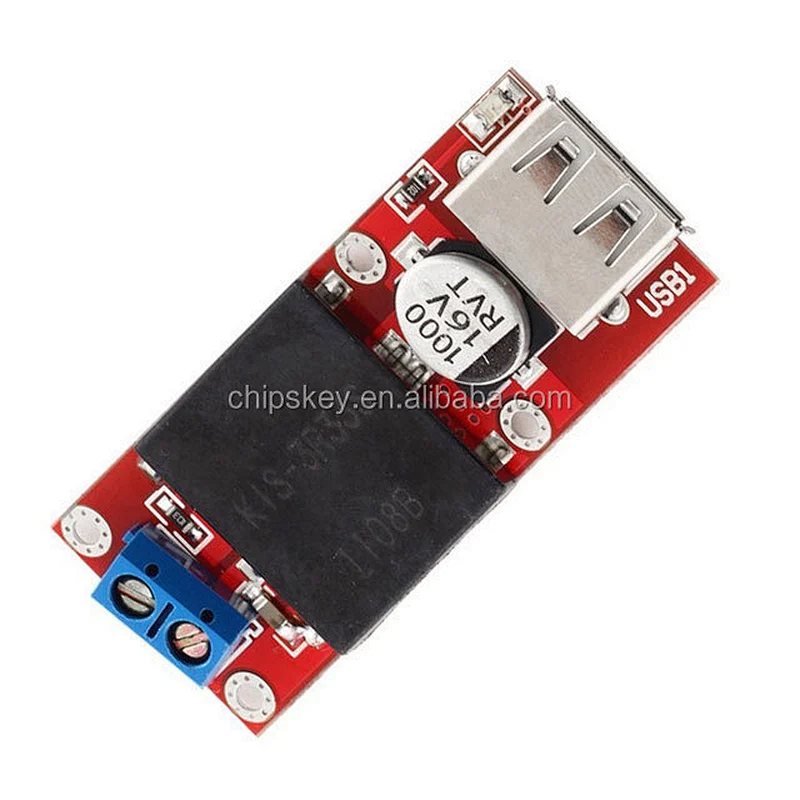

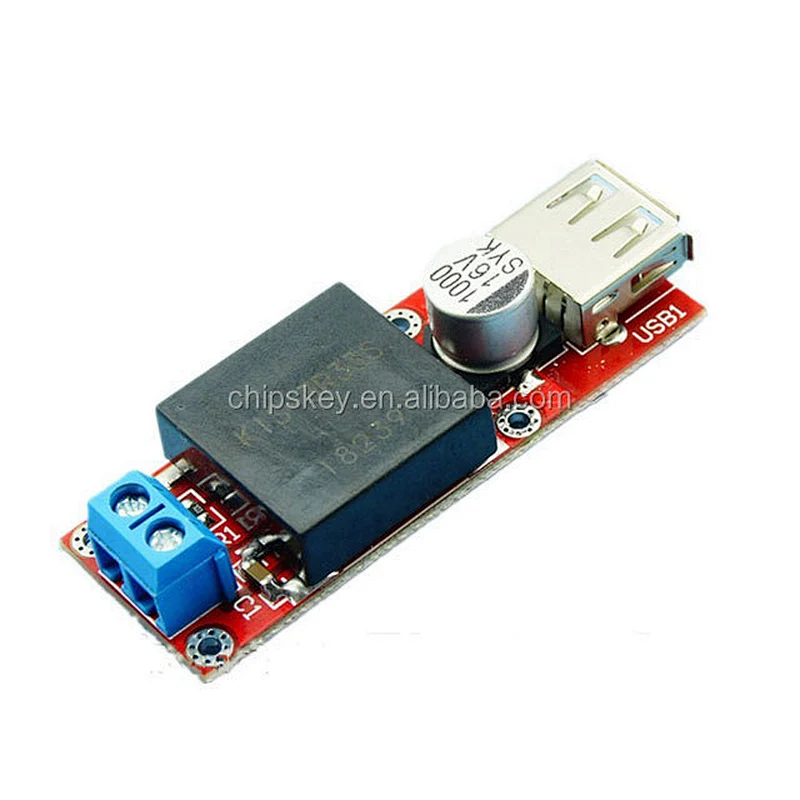

DC 7V-24V To DC 5V 3A USB Output Converter Step Down Module KIS3R33S

• Model Number:11B162
• Type:Power Management Development Boards and Kits
• Place of Origin:China, CN
• Category:IC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C

DC 7V-24V To DC 5V 3A USB Output Converter Step Down Module KIS3R33S

"Specifications:

Modules nature: non-isolated Buck
With Overcurrent Protection
Rectification: Non-synchronous rectification
Input voltage: DC 7- 24V
Output voltage: DC 5V
Output current: 3A (max)
Conversion efficiency: 96% (MAX)
Switching frequency: 340KHz
Output ripple: 30mV (max)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating Temperature: -40 ℃ to +85 ℃
Size: 6.2 x 2.1 x 1 cm
DIY Mobile Power Supply, 5V output for charging Phone, MP3, MP4, PSP, etc
Note: Please connect right as the printed: N-, IN +, OUT-, OUT +, or else the Module will be burned
