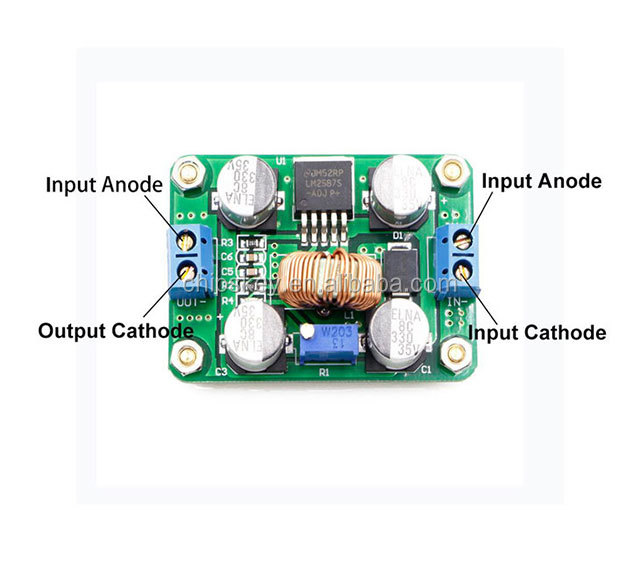

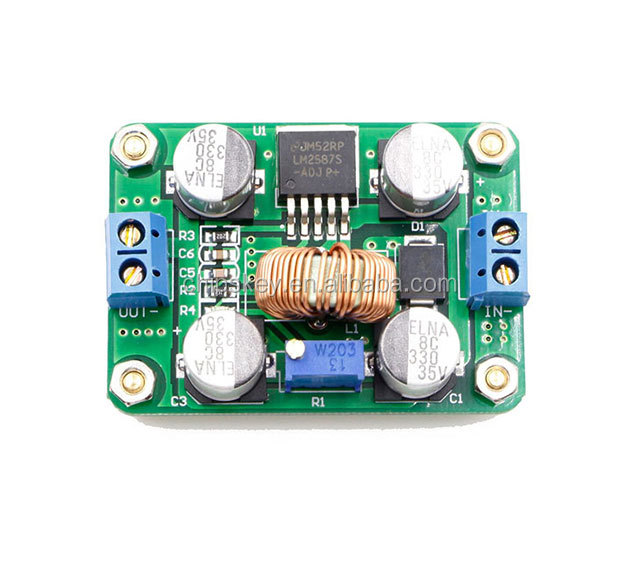

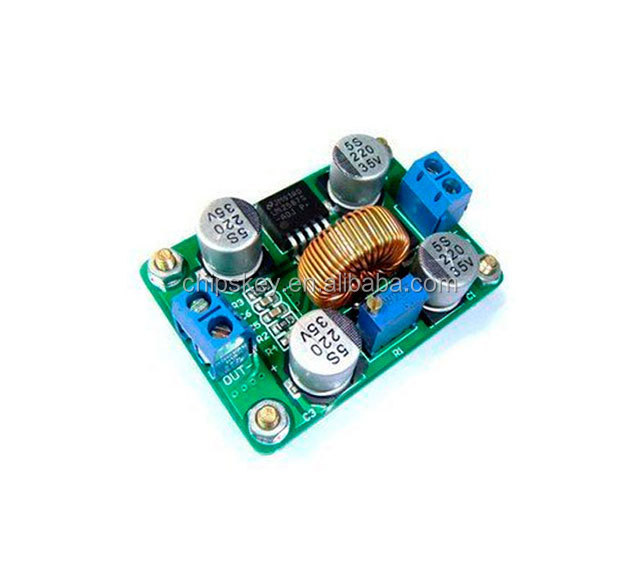

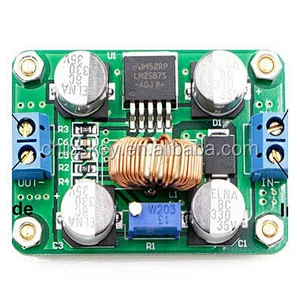

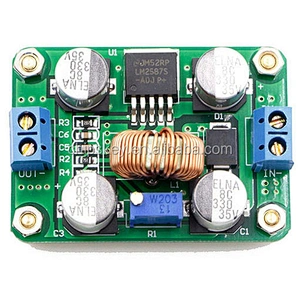

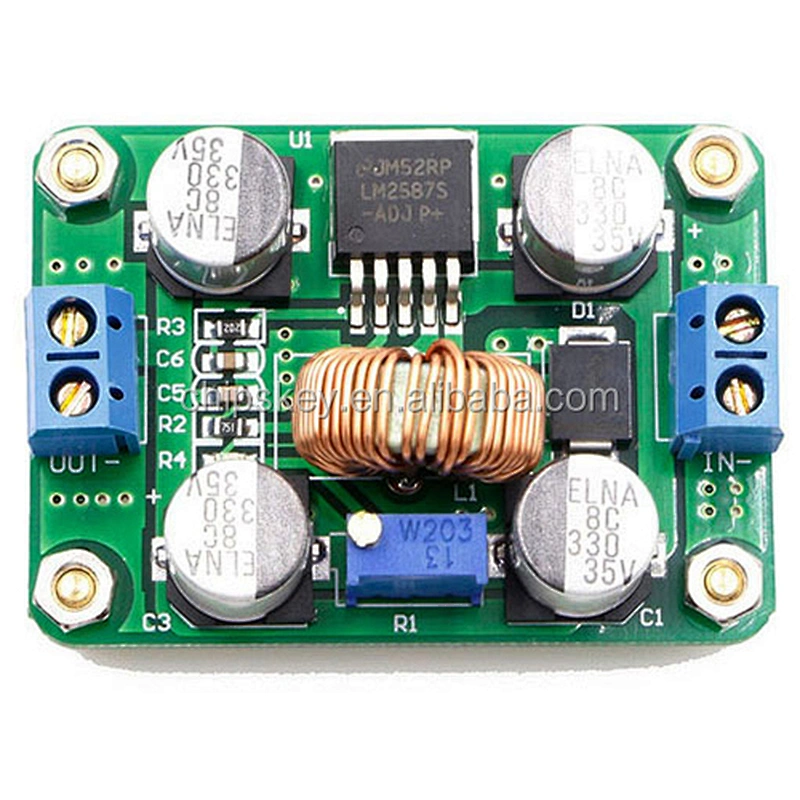

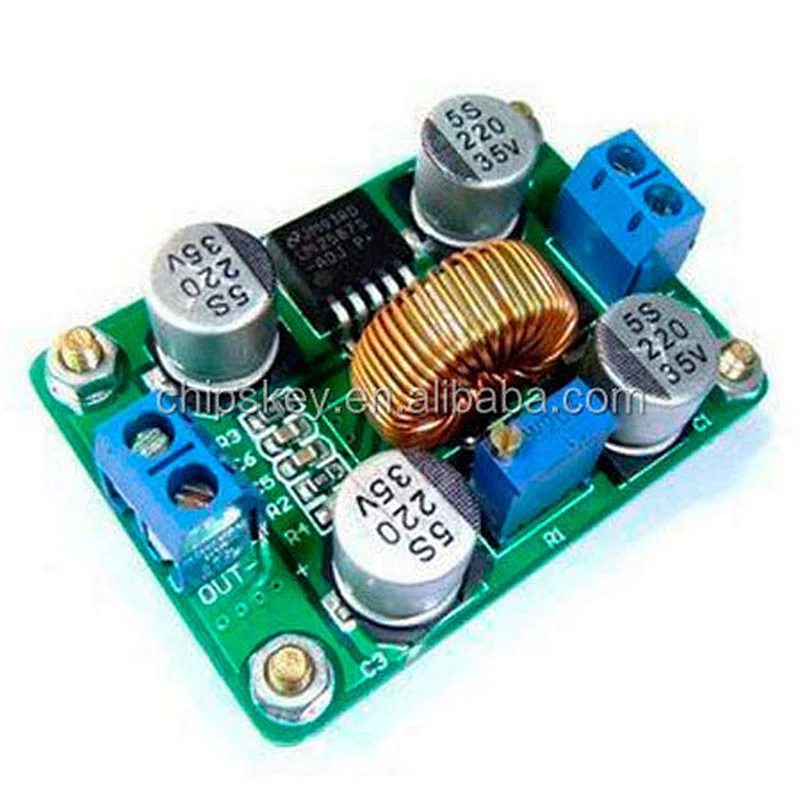

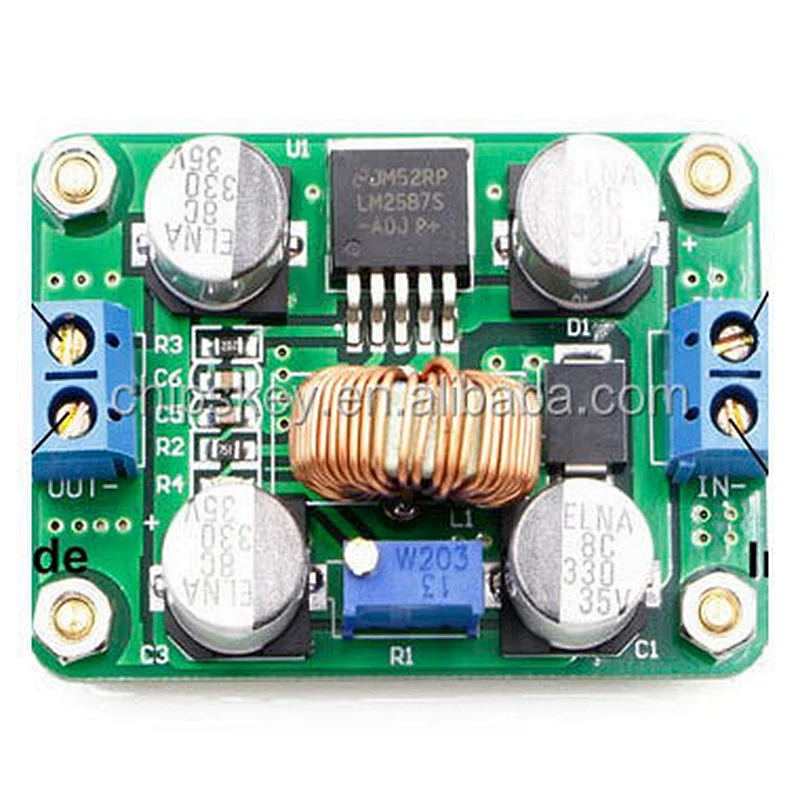

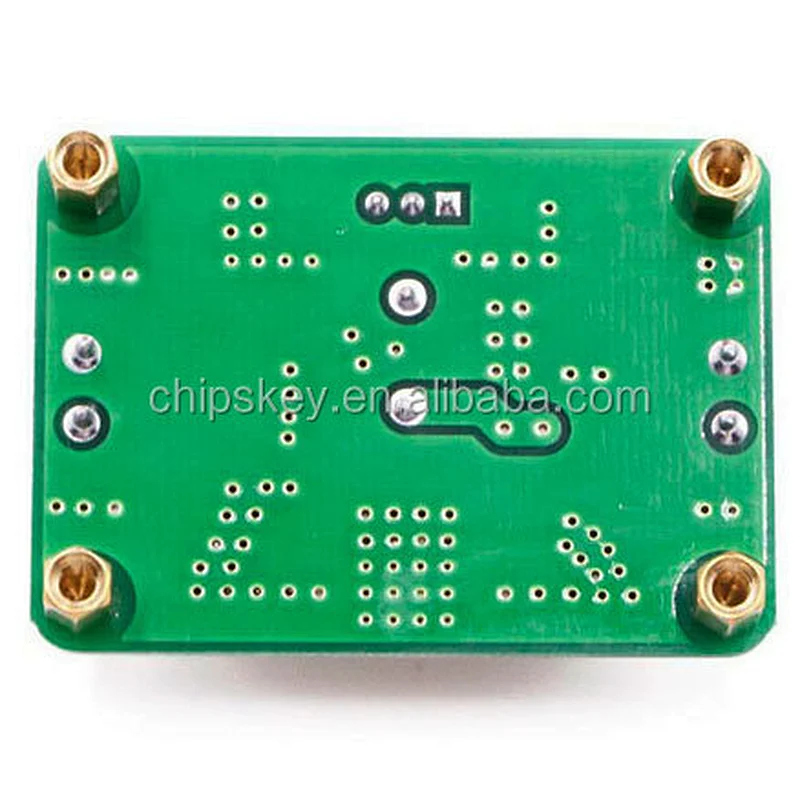

DC/DC 3.5-30V to 4.0-30V Booster Converter Step Up Voltage Regulator LM2587

• Model Number:4006
• Place of Origin:Guangdong, China
• Brand Name:chipskey
• Brand:Chipskey
• Part number:4006

LM2587 high-power modules, terminal block DC-DC step-up module, super lm2577 (peak 5A)

Product description
DC/DC 3.5-30V to 4.0-30V

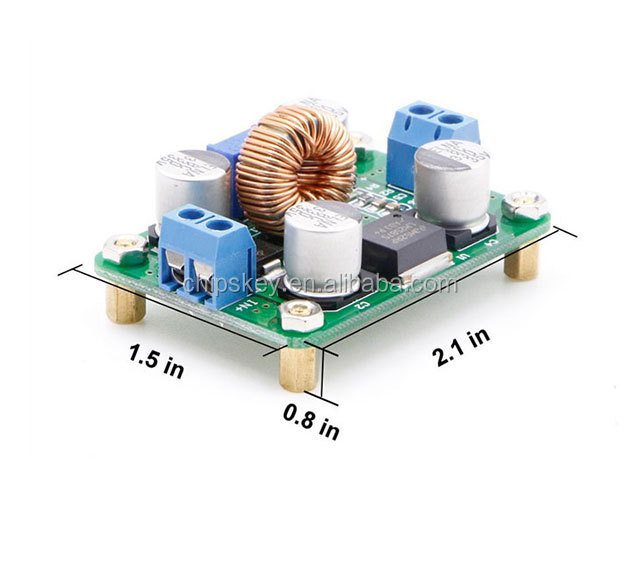

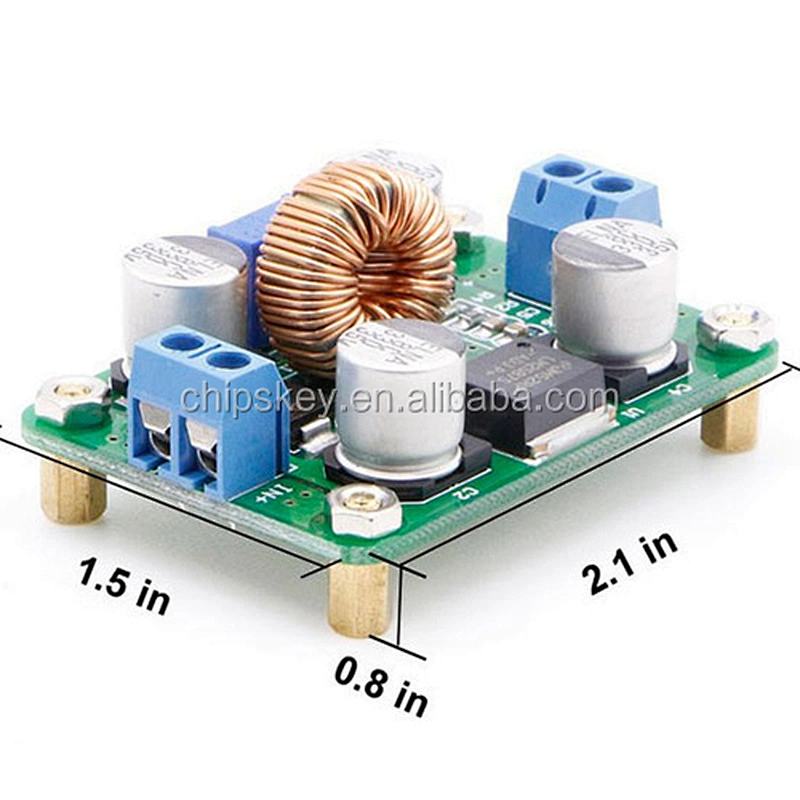

Booster Converter Step Up Voltage Regulator LM2587 Volume: length (3.8) * W (5.2) * (2.0) (CM) Weight 32G
Item: LLL-DY-01
Note: If the output voltage is not higher than the input voltage, please adjust potentiometer clockwise, the output voltage will rise, please do not counterclockwise adjustment when you test the module in the case of high input voltage will be damaged or even damaged!
Indicators: Input voltage range: 3.5V-30V (output set voltage higher than the input voltage must be guaranteed)
Output voltage range: 4.0V-30V
Input maximum current: 5A (based on power conservation under nominal conditions the output current Uin Iin efficiency = Uout Iout)
Continuous operating current: 3A (good ventilation conditions, the output voltage and input voltage ratio can not be greater than 3)
