- Model Number:29040
- Type:Power Management Development Boards and Kits
- Place of Origin:China
- SKU:29040
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project

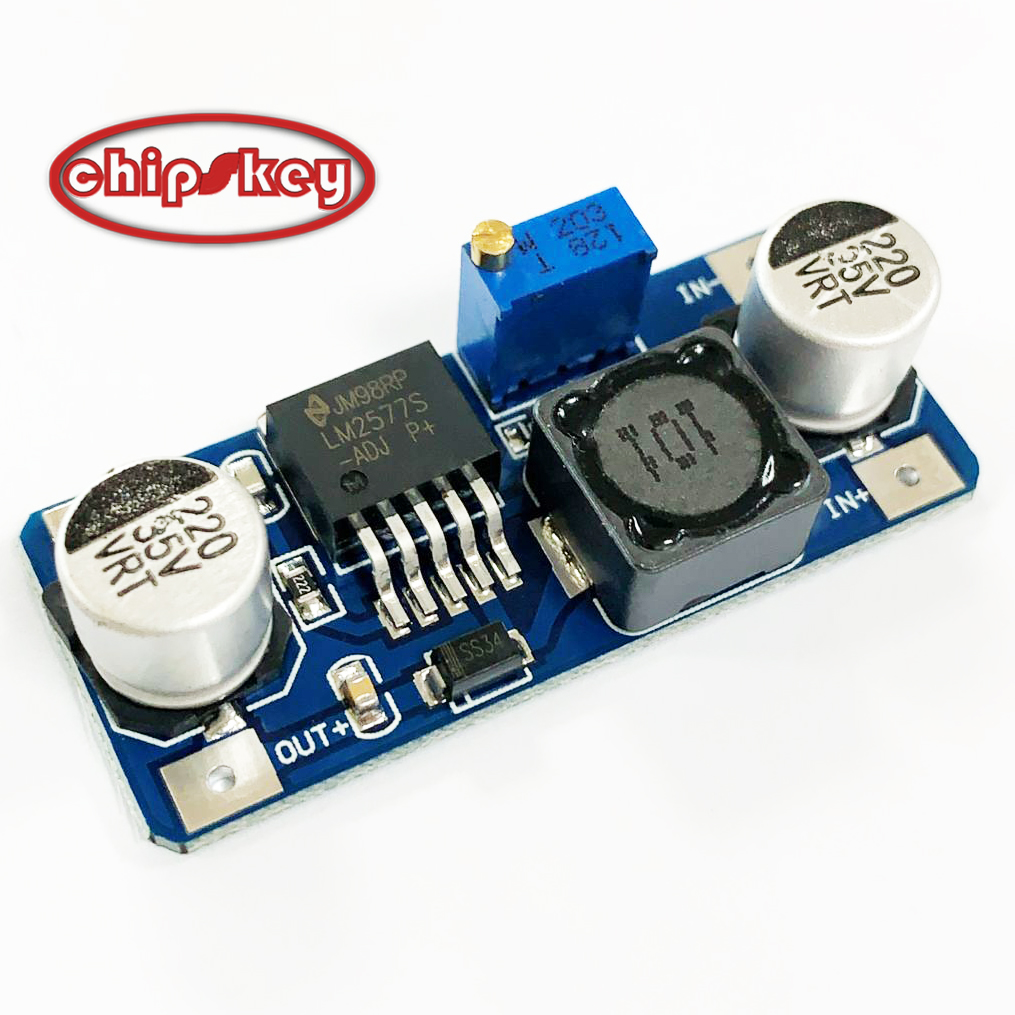

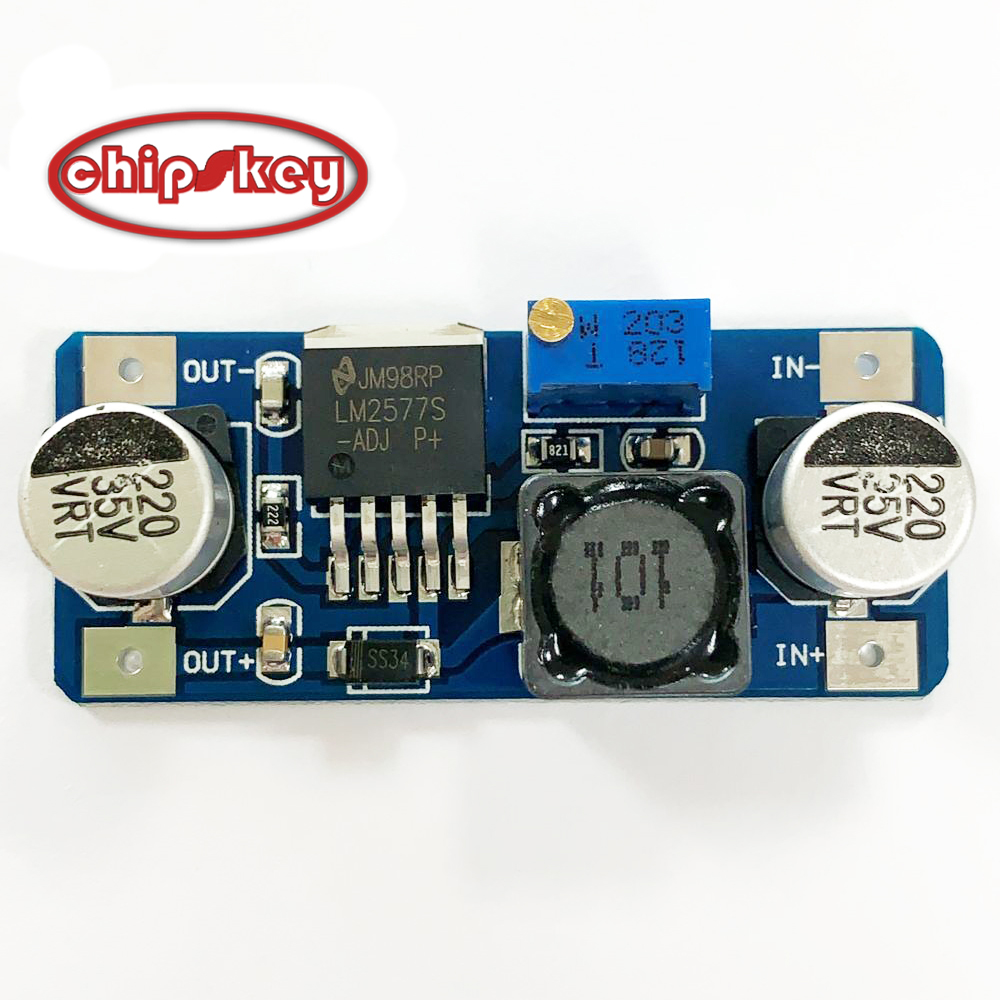

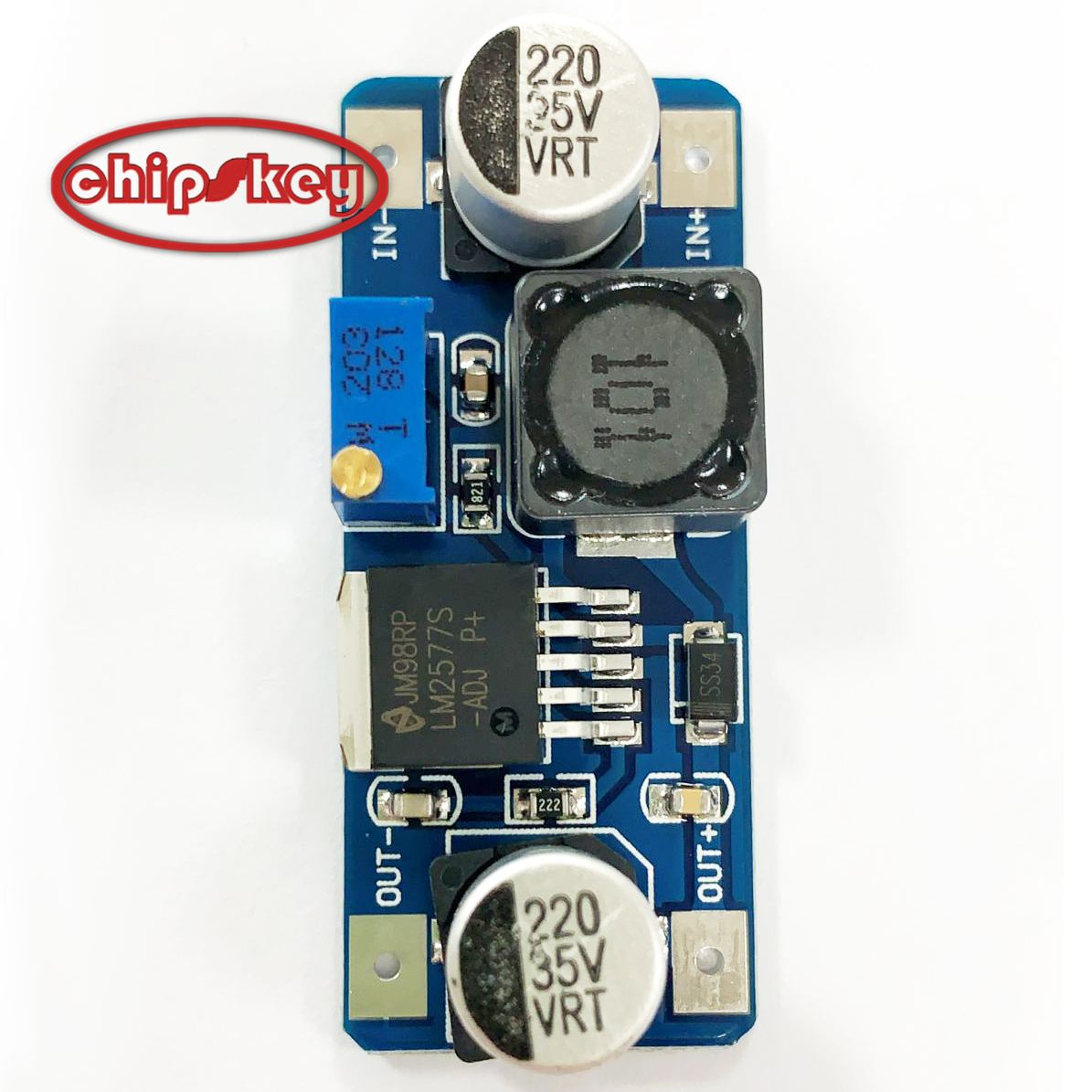

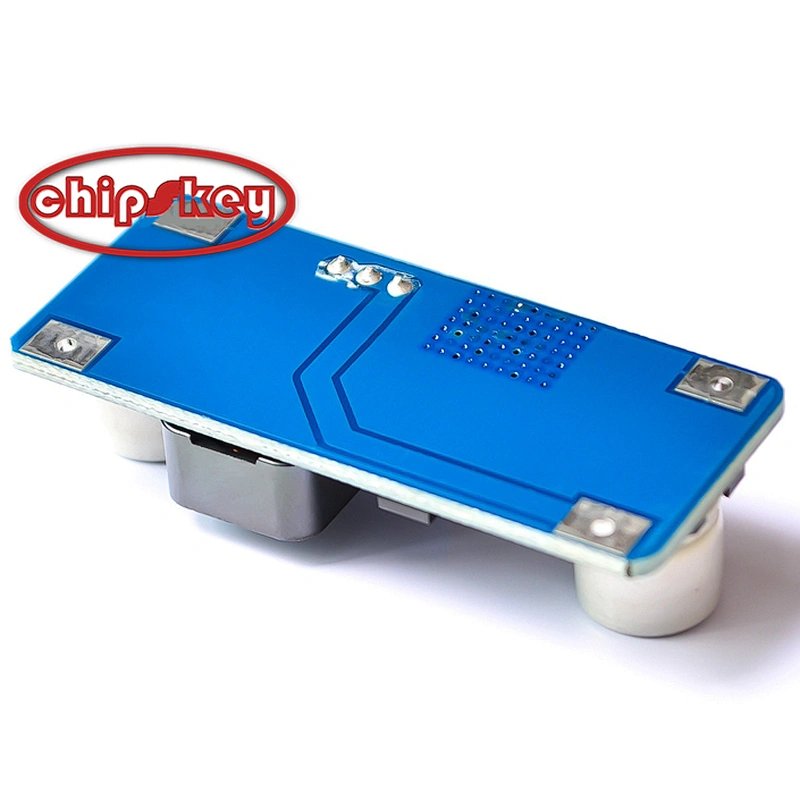

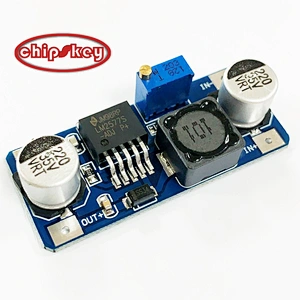

LM2577 DC-DC Boost Module
"Product description
DC-DC Step Up Converter 3-30V to 4-35V LM2577 Step-Up Voltage Adjustable DC Boost Converters Discription: Modules nature:
Non-isolated step-up (Boost) Rectification: Non-synchronous rectification Input voltage: 3V-30V Output voltage: 4V-35V Input
current: 3A (max), No-load current 15mA Power: 15W, if install heatsink can reach 20W (MAX), Please do not exceed 20W, or it would
burn out. Conversion efficiency: 92% (highest) Switching frequency: 50KHz Output ripple: 50mV (max) Load regulation: ± 0.5%
Voltage regulation: ± 0.5% Operating Temperature: -40 ° C to +85 ° C Dimension: 48 x 23 x 14 (mm) Short Circuit Protection: NONE
If the output power greater than 15W, please install heat sink The typical efficiency measurement: (24.04V * 1.001A) / (12V *
2.236A) * 100% = 89.6% The typical efficiency measurement: (12.24V * 0.501A) / (5V * 1.466A) * 100% = 83.6%
DC-DC Step Up Converter 3-30V to 4-35V LM2577 Step-Up Voltage Adjustable DC Boost Converters Discription: Modules nature:
Non-isolated step-up (Boost) Rectification: Non-synchronous rectification Input voltage: 3V-30V Output voltage: 4V-35V Input
current: 3A (max), No-load current 15mA Power: 15W, if install heatsink can reach 20W (MAX), Please do not exceed 20W, or it would
burn out. Conversion efficiency: 92% (highest) Switching frequency: 50KHz Output ripple: 50mV (max) Load regulation: ± 0.5%
Voltage regulation: ± 0.5% Operating Temperature: -40 ° C to +85 ° C Dimension: 48 x 23 x 14 (mm) Short Circuit Protection: NONE
If the output power greater than 15W, please install heat sink The typical efficiency measurement: (24.04V * 1.001A) / (12V *
2.236A) * 100% = 89.6% The typical efficiency measurement: (12.24V * 0.501A) / (5V * 1.466A) * 100% = 83.6%
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduinos, sensor module for arduinos, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduinos & Modules For Raspberry PI ,Smart Home Products
WareHouse
This is our Warehouse ,We Can Make A Fastest Shipment per Day

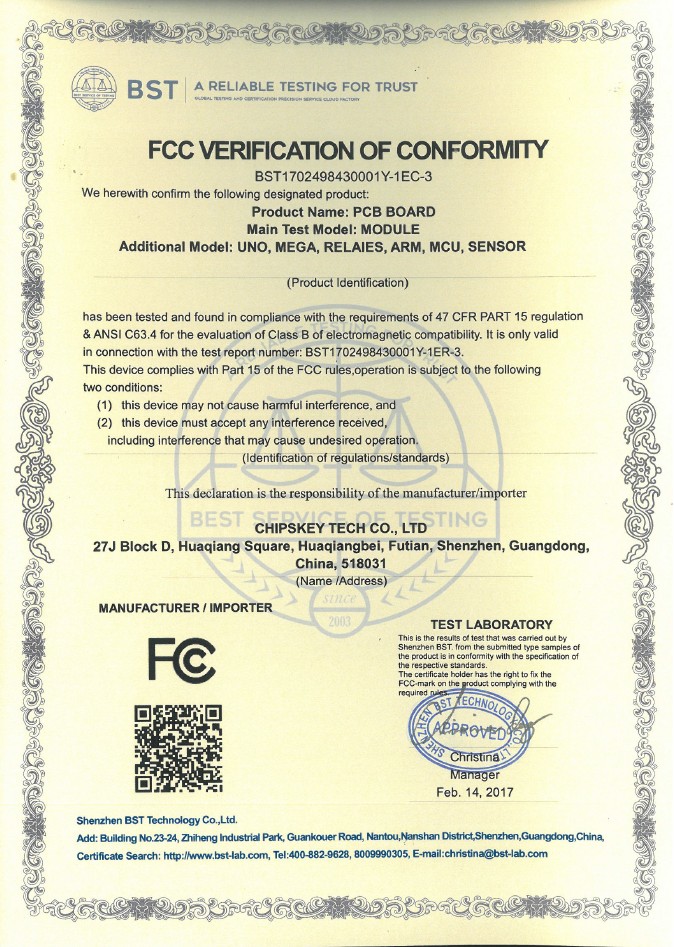

Certifiactions
