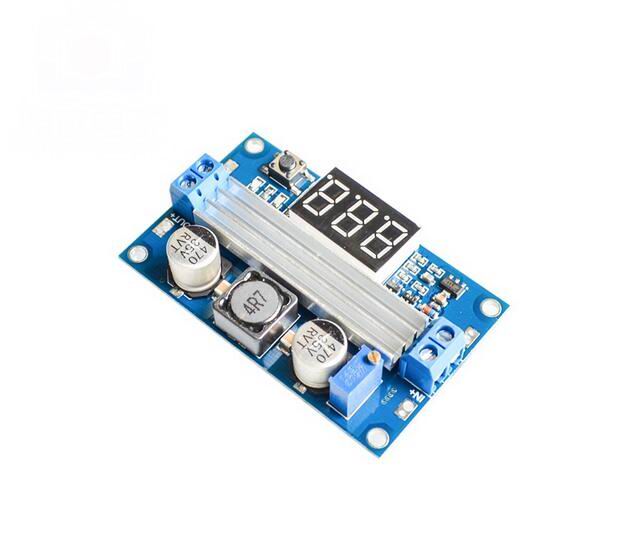

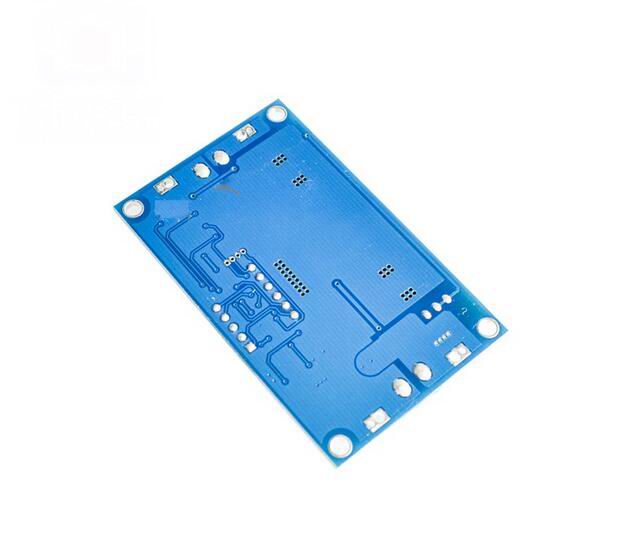

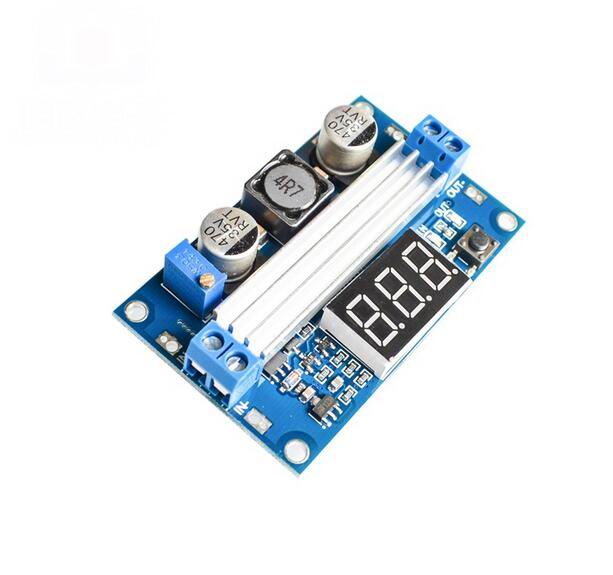

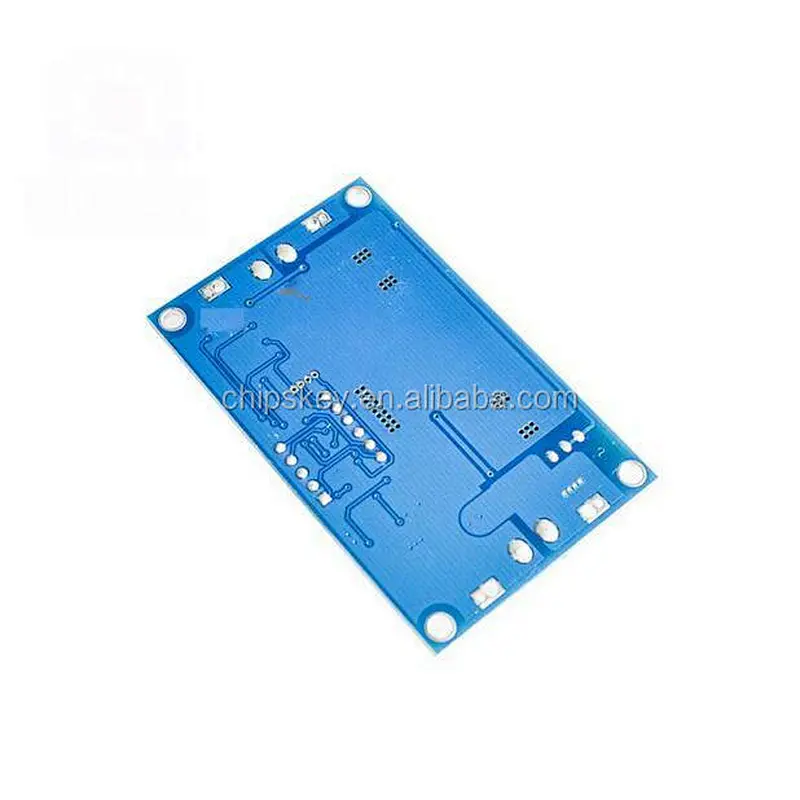

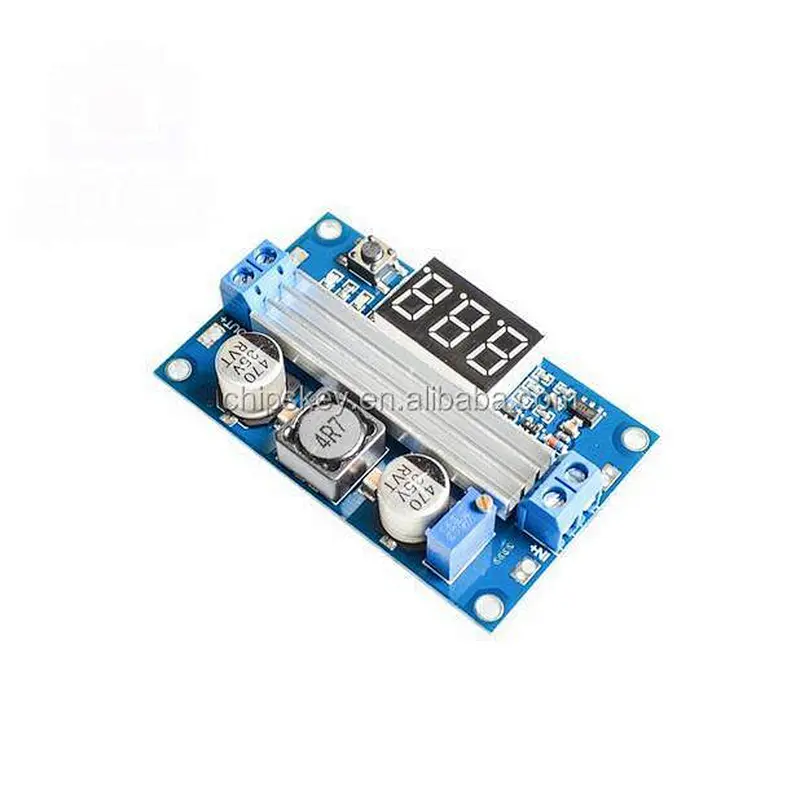

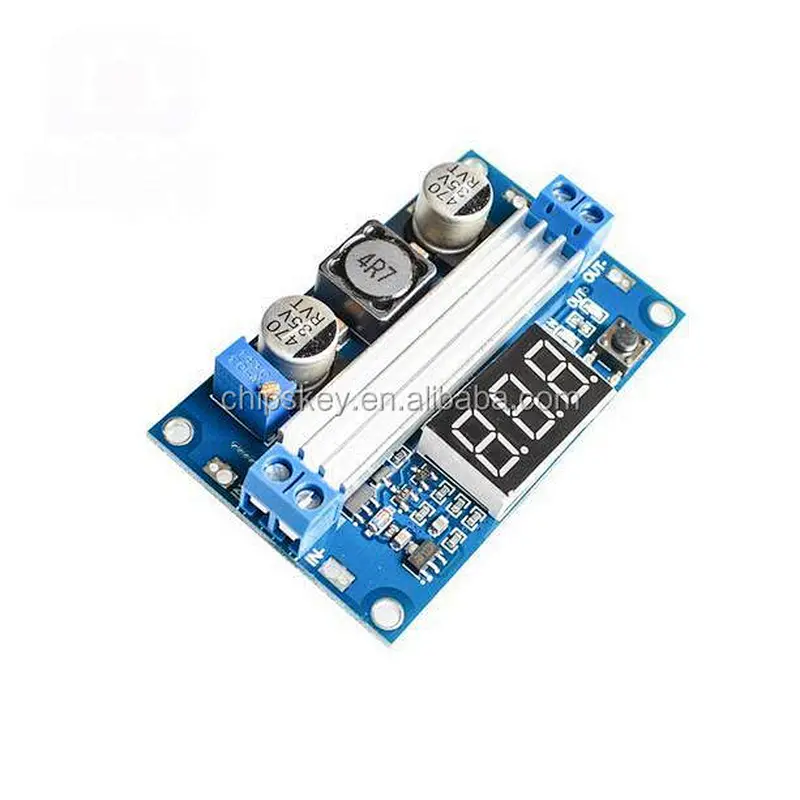

LTC1871 100W 3-35V 12V to 3.5-35V Boost Step-up Module LED Voltmeter

• Model Number:29116
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:29116
• Delivery Time:24hours
• Quality:New&Original
• Application:Great for DIY project

LTC1871 100W 3-35V 12V to 3.5-35V Boost Step-up Module LED Voltmeter

Performance parameters:

1, the input voltage: 3 ~ 35V DC (Note: the input voltage is less than 4V, onboard voltage meter failure)

2, the input current: 9A (max)

3, the output voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage)

4, the output current: 6A (max)

5, the output power: 75W, (when the input and output voltage is greater than 20V can reach 128W)

6, conversion efficiency: 96.7% (highest)

7, the output ripple: 24mV (TYP)

8, onboard voltmeter range: 4 ~ 40V, error + -0.1V

9, short circuit protection: Yes (limit current 14A). Warm Tip: In the access to high-power load, due to the impact of the current is very large current limit self-locking protection, it is recommended to boot, and then access the load.

10, input reverse protection: no (if necessary, enter the string into the high current diode).

11, long x wide x high = 67 * 43 * 12MM (excluding copper pillars)
