- Network:other
- Customized support:other
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Model Number:3018
- Input voltage range:4.5-24V
- Part number:3018
- Output voltage range:0.93V-20V
- Output current:continuous 2A output
- Output power:up to 20W
- Ripple frequency:330Khz or so
- Ripple peak:30mV
- Size:44mm * 30mm * 20mm
- Weight:18g
- Voltage indication:input 4.5-24V, output 0.9-20V

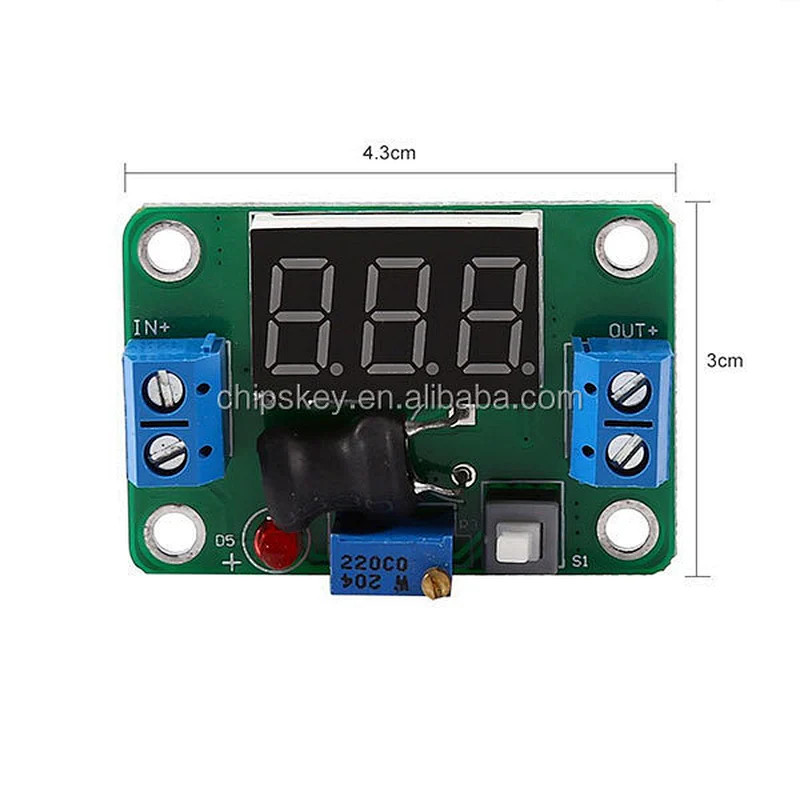

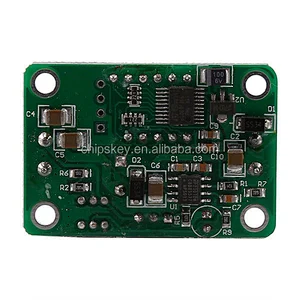

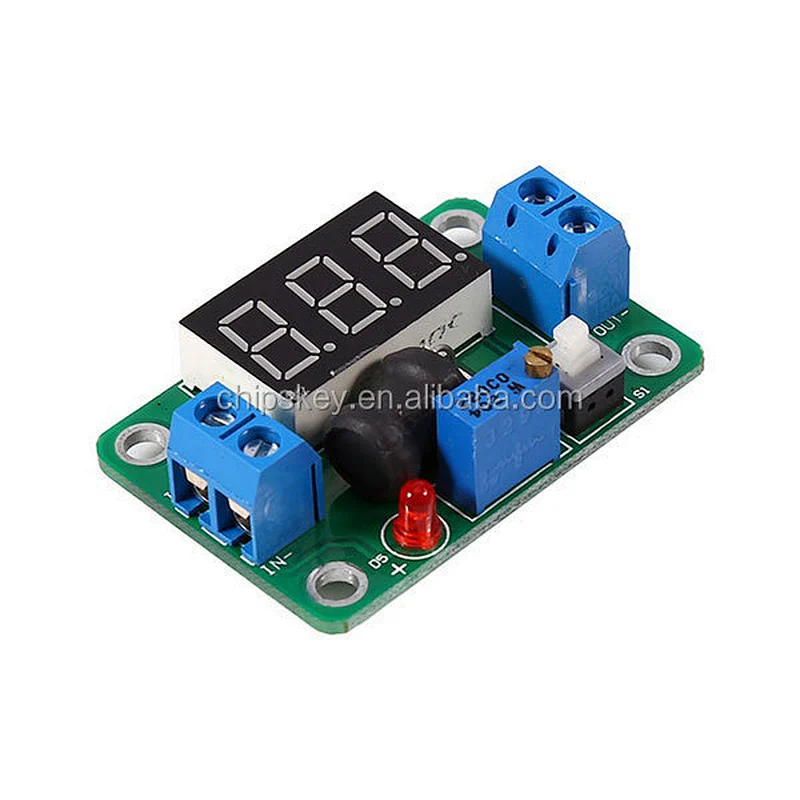

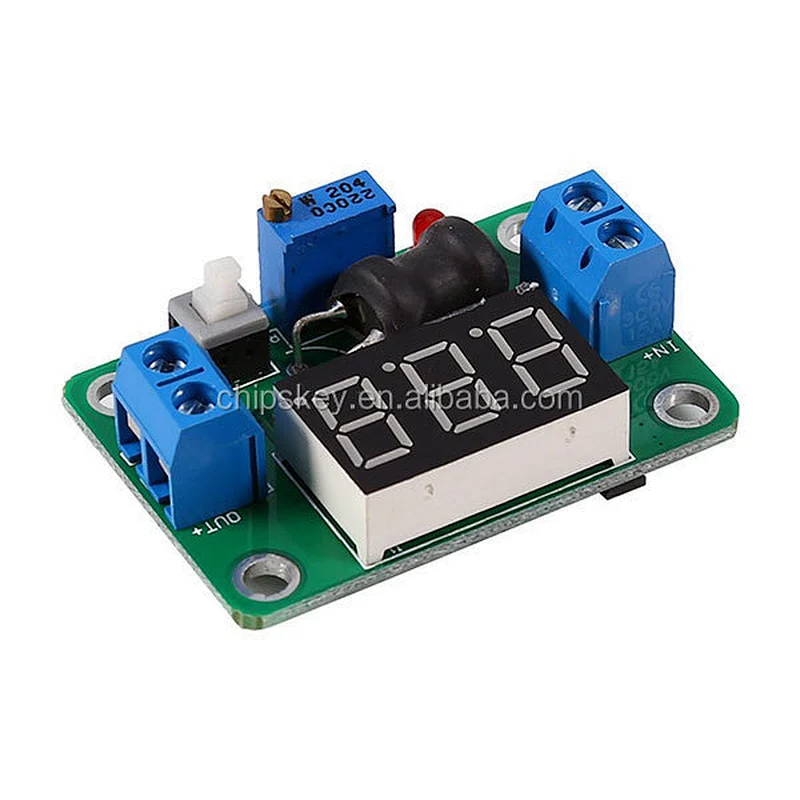

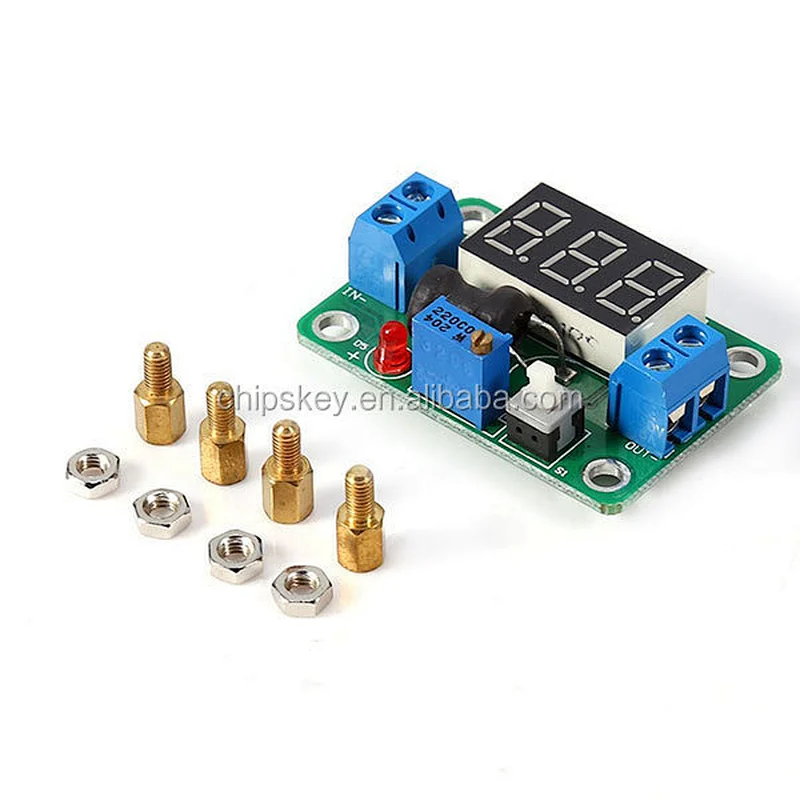

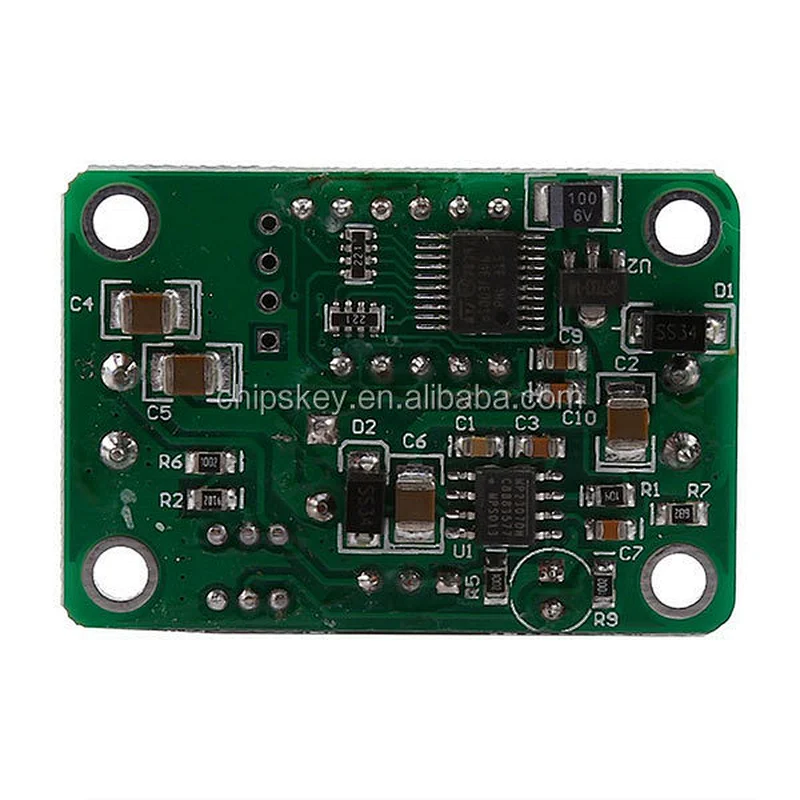

Efficient synchronous rectification DC-DC regulator with a voltage meter to 4.5-24V super LM2596
Features :
In+: Input positive
In-: Input negative
Out+: Output positive
Out-: Output negative
Weight: 18g
Dimensions: 44 *30.5 *12mm(length*width*height)
Button switch: Control the module work or not
Input voltage: 5-24V(Maximum limit voltage is 24 v, please
leave some leeway to use ,otherwise be damaged)
Output voltage: 0.93v-18v (step-down mode, Inputs must be higher
than the output above 2V)
Output current: Continuous output 2.5A
Ripple frequency: About 330KHZ
Ripple peak to peak value: 50mv
Static power consumption: Typical about 15mA
