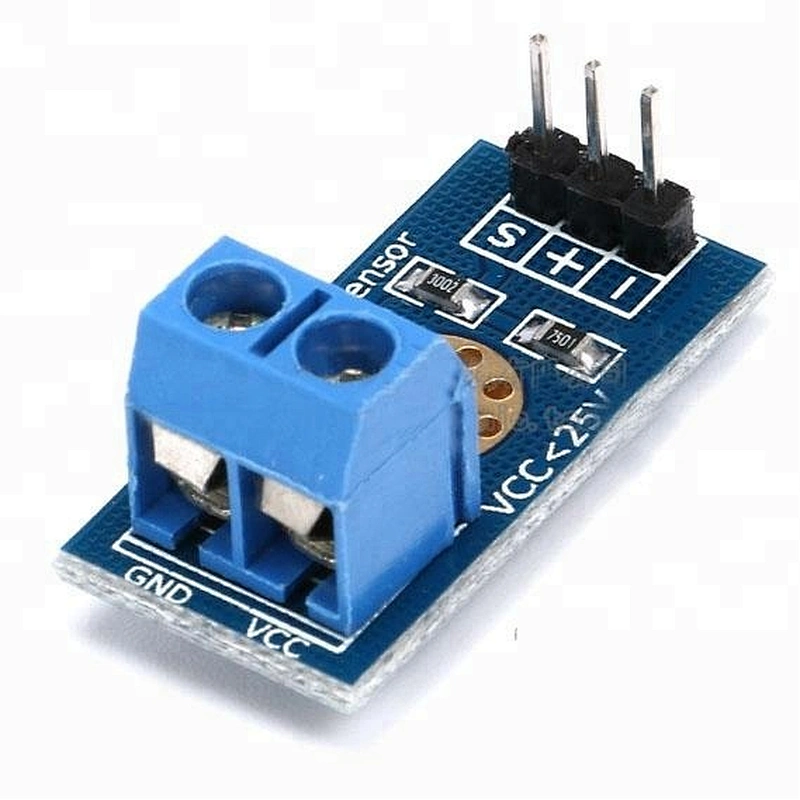

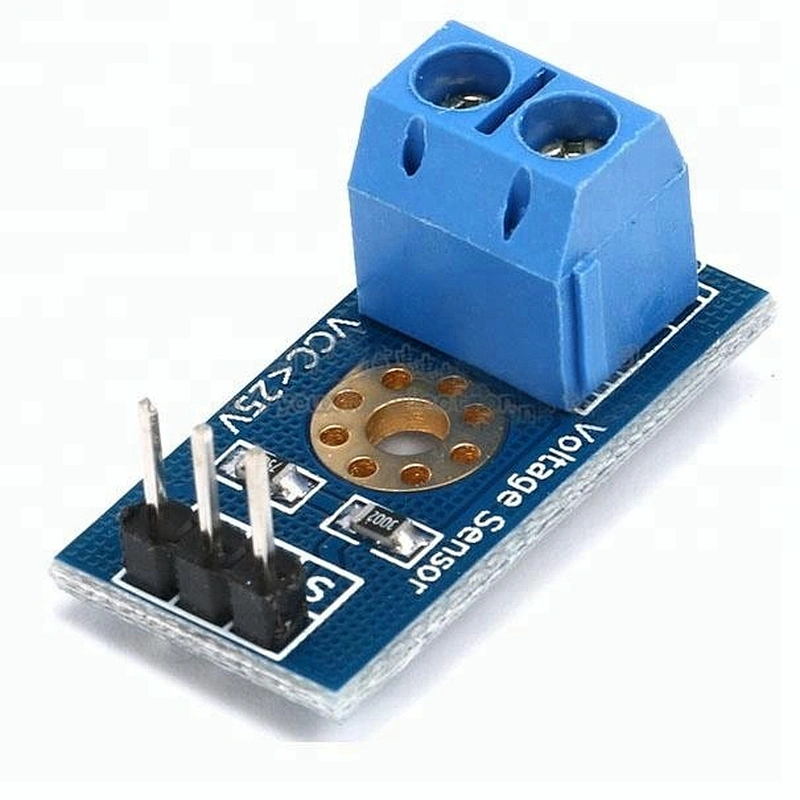

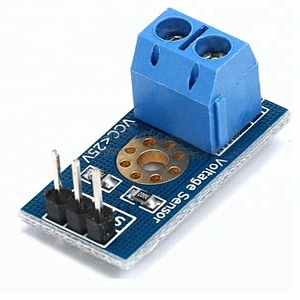

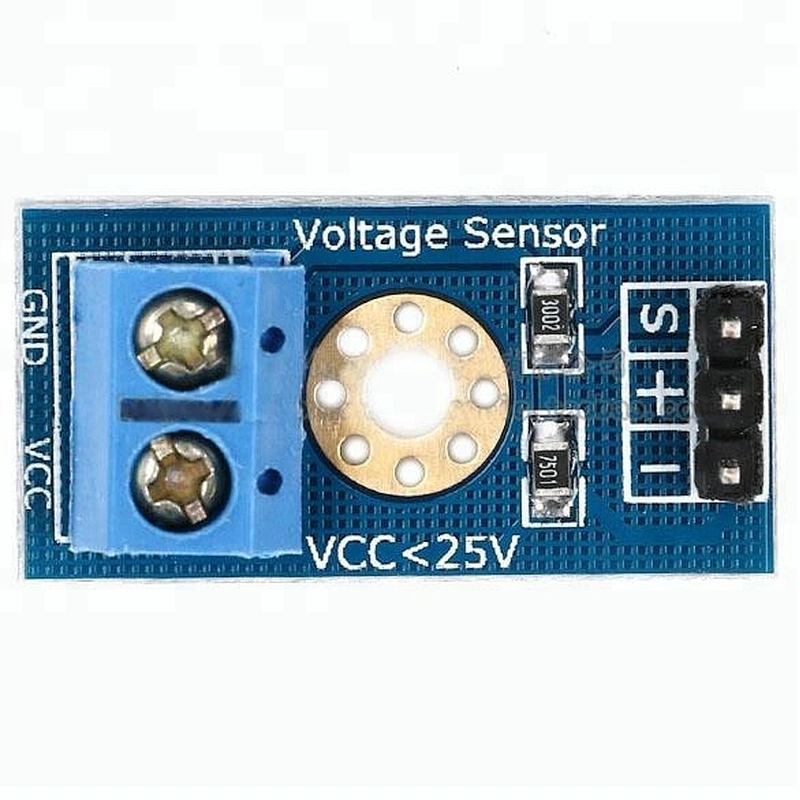

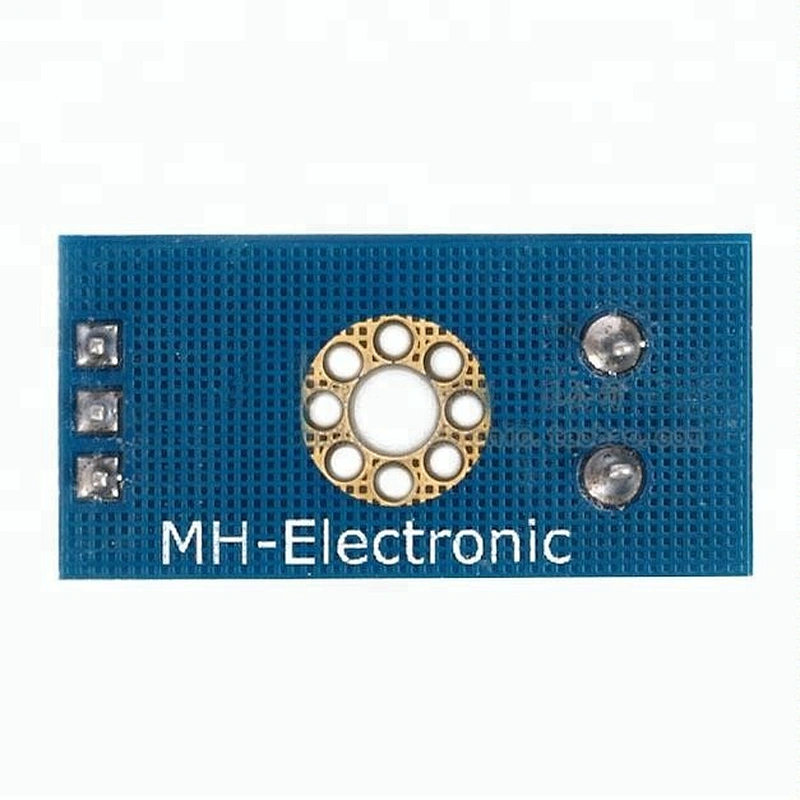

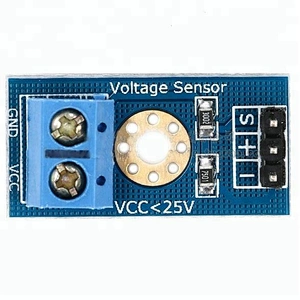

Voltage Sensor For Arduinos

• Model Number:10A104
• Type:Other
• Place of Origin:China, Italy
• Category:Module
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

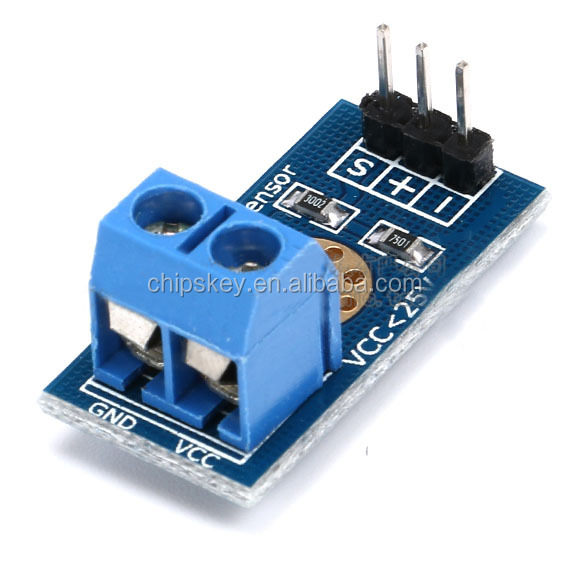

Voltage Sensor

 "
Product description
Description:
This module is based on a resistive divider principle design, make the interface terminal input voltage reduced 5 times,  analog input voltage up to 5V, then the input voltage of the voltage detection module can not be greater than 5V × 5 = 25V (if used 3.3V system, the input voltage can not exceed 3.3Vx5 = 16.5V). Because  AVR chips used in 10 AD, so the resolution of the analog module is 0.00489V (5V / 1023), so the voltage detection module detects a minimum input voltage of 0.00489V × 5 = 0.02445V.
Voltage input range: DC0-25V
Voltage detection range: DC0.02445V-25V
Voltage Analog Resolution: 0.00489V

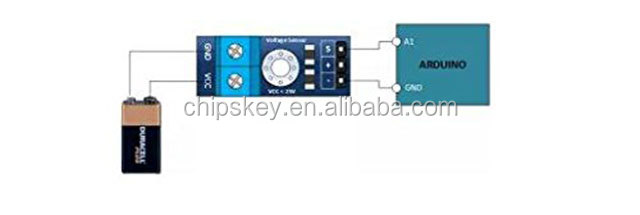

DC input connector: Terminal cathode connected to VCC, GND negative pole
Output interface:
+ 5V or 3.3V
- GND
